Hydraulic Low Loss Header - manifold set 3 sections - without valves fittings
Low Loss Header-Hydraulic Manifold 3 circuits for 3 pumps Nordic Tec
  • New
Hydraulic Low Loss Header - manifold set 3 sections - without valves fittings
Low Loss Header-Hydraulic Manifold 3 circuits for 3 pumps Nordic Tec

Low Loss Header-Hydraulic Manifold 3 circuits for 3 pumps

Hydraulic Low Loss Header - manifold set 3 sections - without valves/fittings

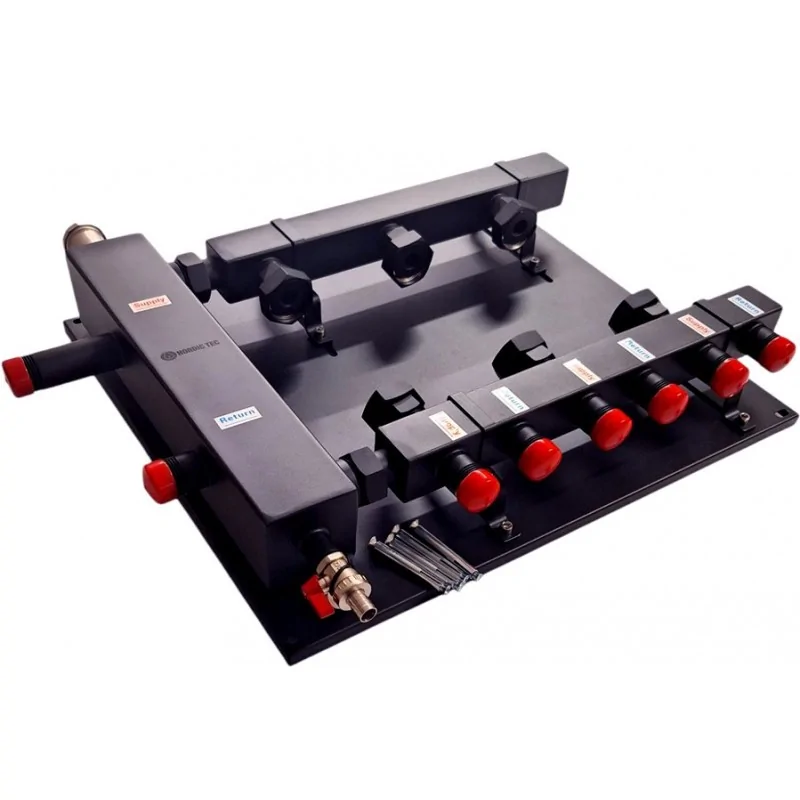

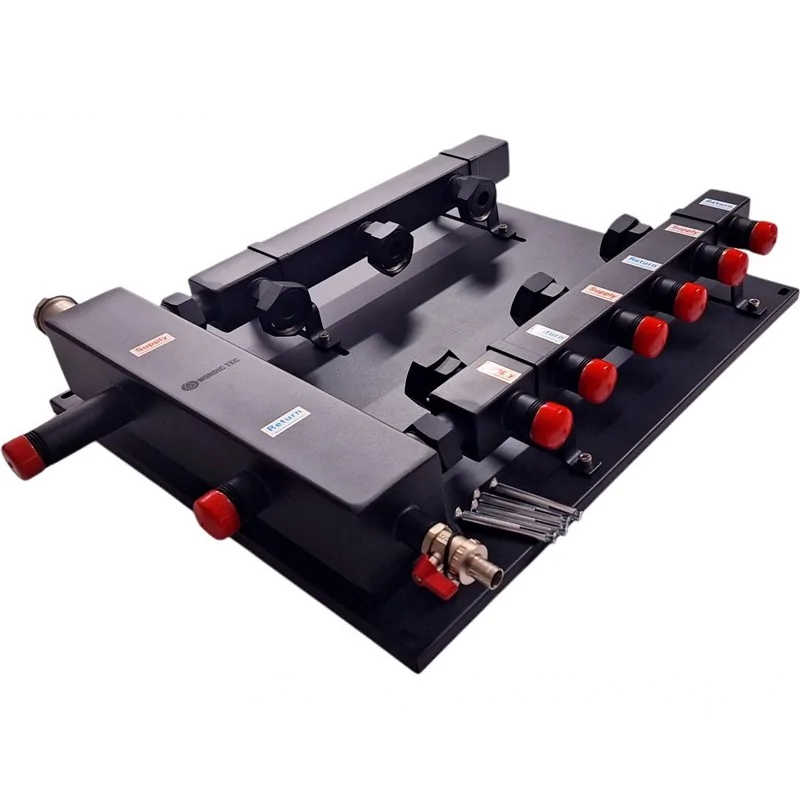

Low Loss Header - manifold for heating systems mounted on a wall-mounted plate 67x50cm, prepared for 3 circulation pumps type 180mm

The Low Loss Header - manifold set with 3 heating sections will perform better than a classic Low Loss Header for heating systems or a standard manifold - because its components - the Low Loss Header and manifold work synergistically. The 3-section manifold extends the pressure-neutral zone.

This is a variant without fittings and valves - our store also offers a version with fittings/valves.

Plate size with mounted Low Loss Header, manifold sections and all set components - 67 x 50 cm

☑️ This Low Loss Header-manifold set offers the fastest installation of this type of solution on the market
✅ Free shipping to 14 European countries

Reference: NT-SCZ-3ob-b-z
Condition New
On stock
€269.99
VAT included



Techniczal parameters - Hydraulic Low Loss Header - manifold set 3 circuits

  • The Low Loss Header - manifold is mounted on a rectangular plate for quick installation
  • Supply and heat distribution sections have 1" thread - in this variant without fittings
  • Low Loss Header capacity - max. 70 kW (delta = 15K), total capacity of the set with 3-section manifold - 85 kW
  • Drain valve and automatic air vent included with the Low Loss Header (visible in photos) - included in the price
  • Thread size for Low Loss Header accessories (air vent and drain valve mentioned above) is 1/2" female
  • Maximum flow rate for optimal Low Loss Header performance - 6 m3/h
  • Maximum safe operating temperature for heating system < 100°C
  • Permissible glycol use - up to 50% concentration
  • Low Loss Header and hydraulic manifold chambers made of galvanized stainless steel
  • Complete Low Loss Header-manifold set with plate - powder-coated matte black
  • Manifold designed for 3 circulation pumps 180 mm (e.g. 25-40 180, 25-60 180, 25-80 180 etc.)
  • Set includes 4 sturdy wall mounting anchors (8cm length)
