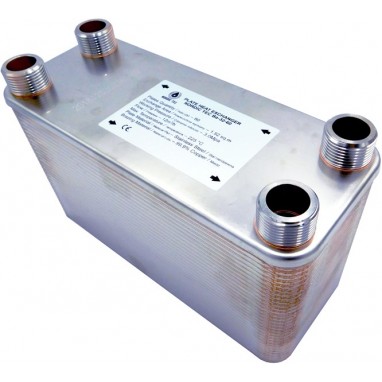

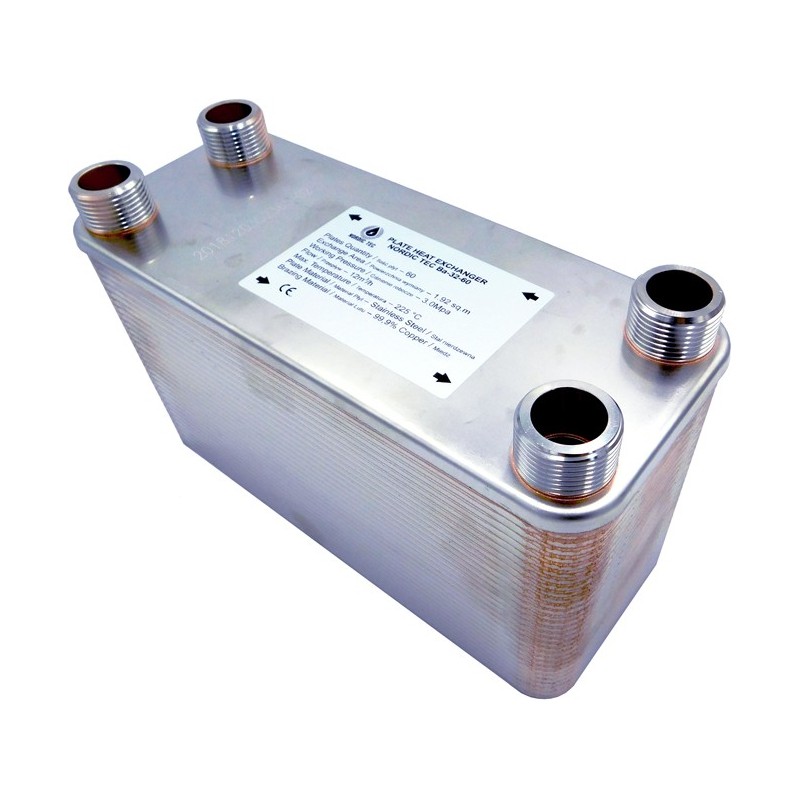

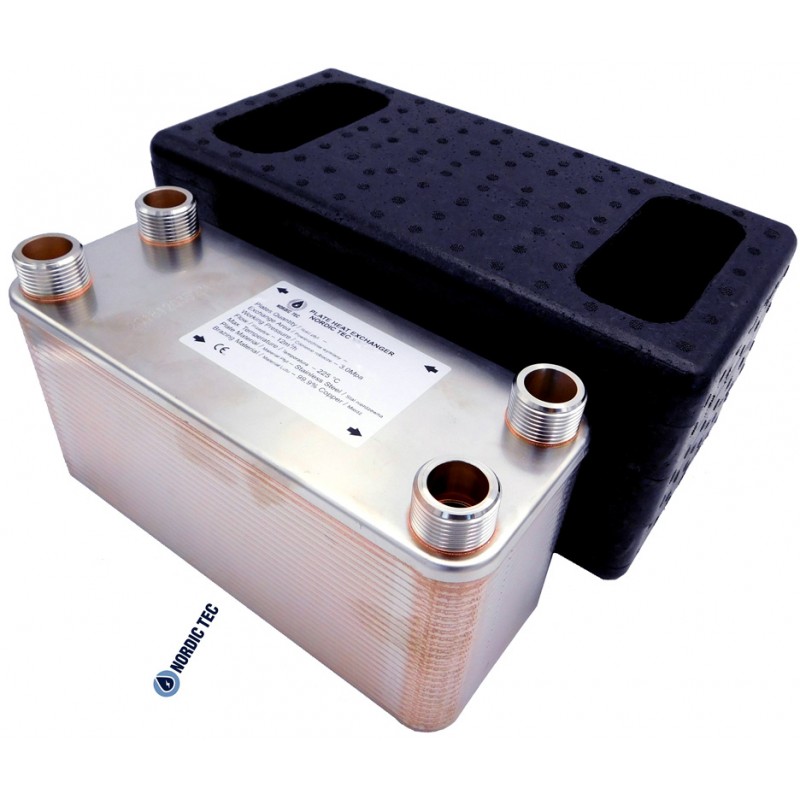

Plate Heat Exchanger NORDIC Ba-115-40 2" 1350kW

Heat Exchanger with 2" connections - Nordic Tec Ba-115-40 - 4x 2", 40 plates

Technical details:

• Stainless Steel S316L, brazed with 99,9% Cu


• Threads: 4x 2", BSP, external


• Operation Max. Pressure - <30 bar
  Test Pressure - 45-60 bar


• Max. temperature +230°C


• Flowrate - 45 m³/h

- Heat Exchange Surface - 4.60 m²

The brazed plate heat exchanger compared to other similarly sized models in the NORDIC TEC brand catalog. All the heat exchangers listed above feature 2-inch connections. As shown in the chart, the Ba-115-40 model with a surface area of 4.60 m² is one of the smallest heat exchangers equipped with this relatively large port size.

The Ba-115-40 heat exchanger consists of 40 stainless steel plates, each with a surface area of 0.115 m². Combined, this creates a total heat transfer area of 4.6 m², which is sufficiently large for numerous industrial applications. It is often used in conjunction with large heat pump systems, as well as in multi-family residential buildings or public facilities.

The Ba-115-40 model is currently the smallest heat exchanger available in the standard Ba-115 series catalog. However, it still falls into the category of relatively large models, not intended for typical single-family homes. If you're looking for heat exchangers with an even larger surface area, check out other models featured in the chart, such as the Ba-115-60 or the Ba-115-80.

Dimensions:

(A) - 535 mm
(B) - 253 mm
(F) - 110 mm
(C) - 456 mm
(D) - 174 mm
