Plate Q'ty: 90 pcs.
Connections: 2" BSP
Heat Exchange Area: 10.350m²

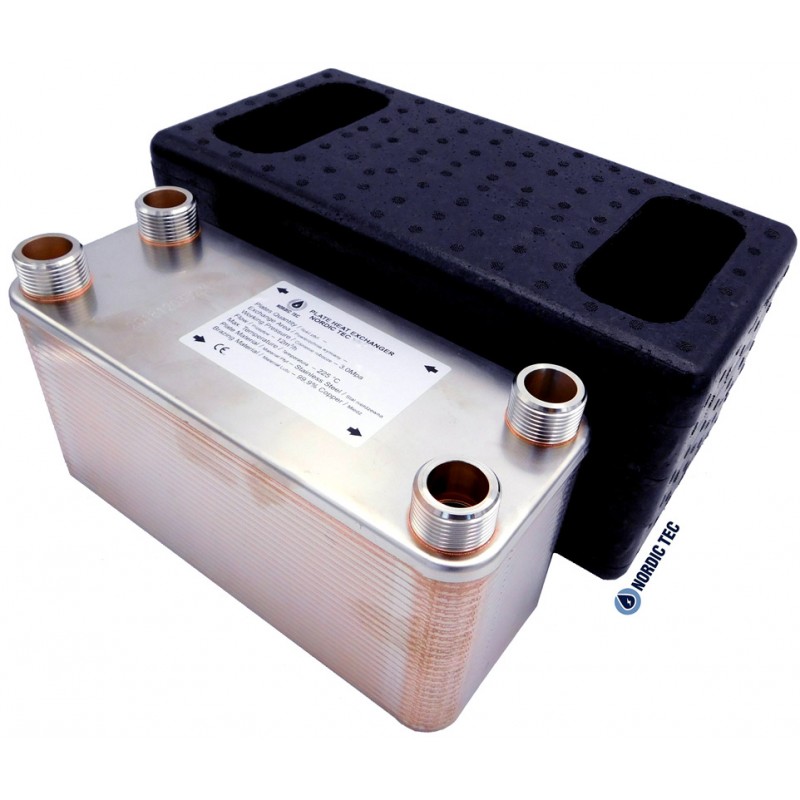

✅ This Heat Exchanger requires a pallet delivery - we offer the quick delivery of this plate heat exchanger in most European countries.
☑️ Fast availability of large Ba-115 heat exchangers
✅ Free delivery in: FR, IT, ES, DE, PL, SI, AT, DK, NL, BE, CZ, LV, EE, LT

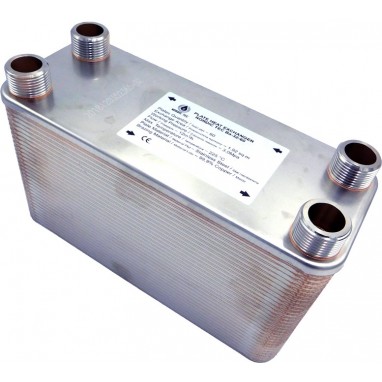

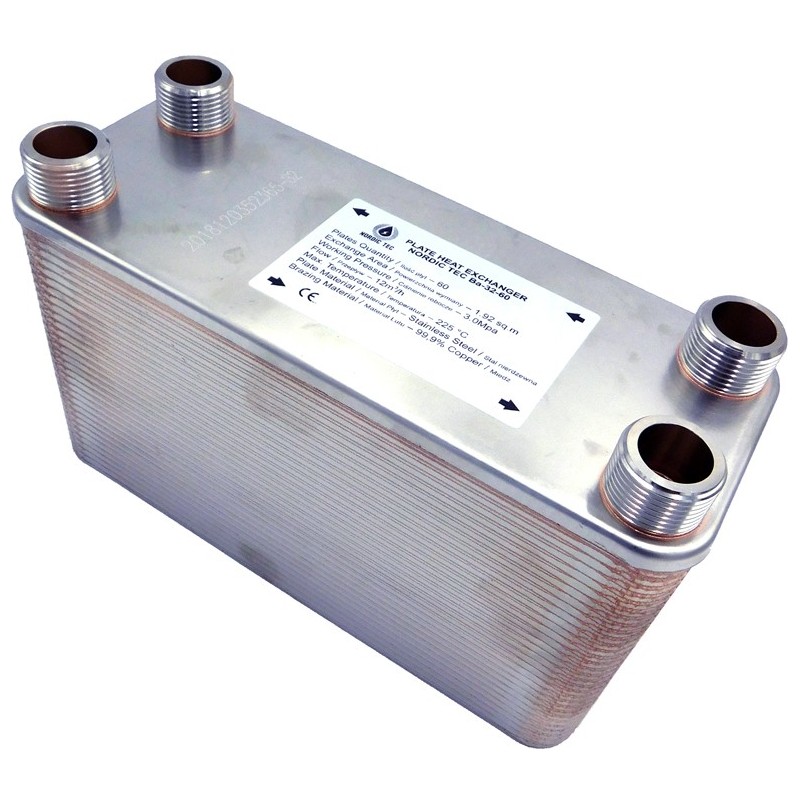

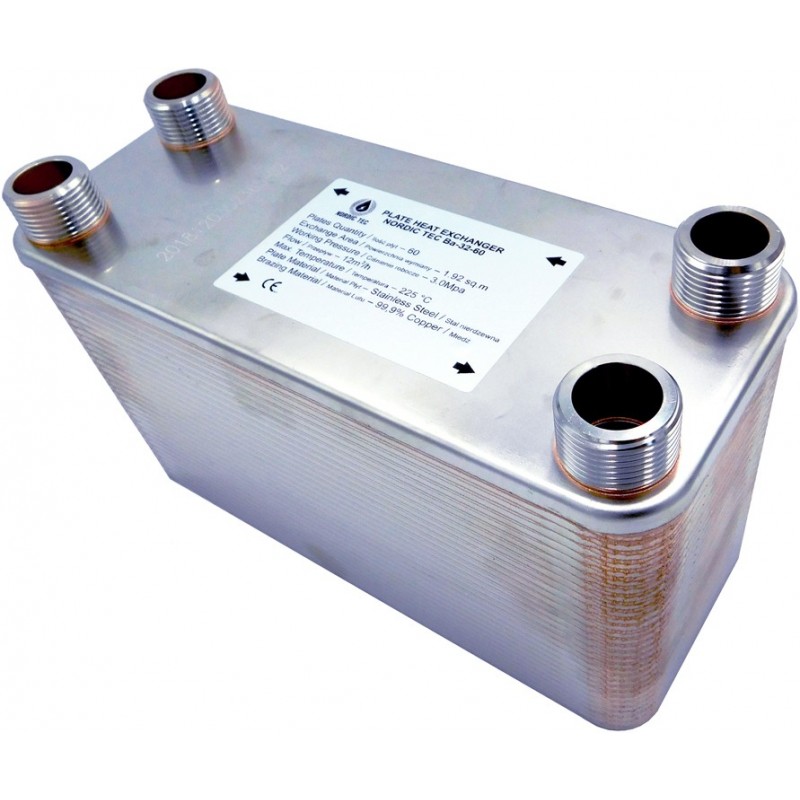

Brazed plate heat exchanger in stainless steel with copper, 2" connections, 90 plates
Basic information - Heat Exchanger Nordic Tec Ba-115-90
|
Main material: Threads/Connectors: Allowable working pressure: Test pressure between: Maximal operation temperature: Nominal flow through HE channel: |
Stainless Steel 316L & copper brazzings 2" / BSP DN50 (all the 4 connections) < 30 bar 45 - 60 bar +230°C max. 45 m³/h |
compared to other plate heat exchangers of this series – Ba-115 2"
A heat exchanger that combines a compact design with a very large heat transfer area of over 10 m². This value makes it suitable for use in very large heating systems; however, it is not the largest model in the NORDIC TEC product range. If you require an even larger heat transfer area, please also consider models such as the Ba-115-110 or Ba-115-140.
Dimensions - Heat Exchanger Ba-115-90
As every PHE by Nordic Tec - this unit is a counter-flow device.
