Plate Q'ty: 100 pcs.
Connections: 2" BSP
Heat Exchange Area: 11.500m²

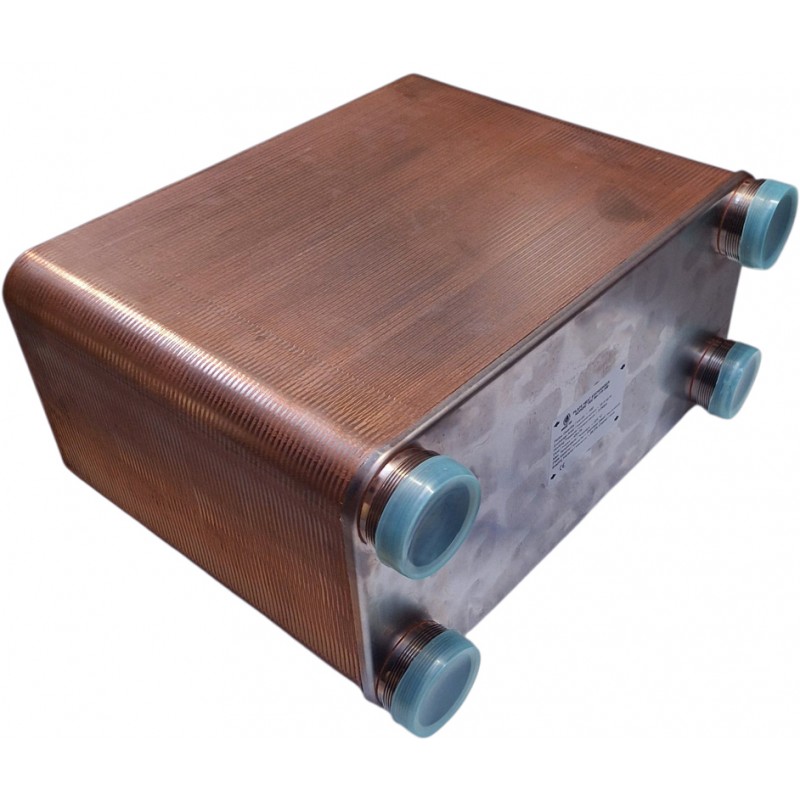

Brazed plate heat exchanger – large model with 100 plates and a total surface area of 11.5 m² – for large industrial heating and cooling systems.
✅ This Heat Exchanger requires a pallet delivery - we offer the quick delivery of this plate heat exchanger in most European countries.
☑️ Fast availability of large Ba-115 heat exchangers
✅ Free delivery in: FR, IT, ES, DE, PL, SI, AT, DK, NL, BE, CZ, LV, EE, LT
DN50 brazed plate heat exchanger in stainless steel with copper, 2" connections, 100 plates
Technical details - Heat Exchanger Ba-115-100
- Stainless Steel S316L, brazed with 99,9% Cu - Connections: 4x 2", BSP - Working Pressure - <30 bar - Test Pressure - 45-60 bar - Max. temperature +230°C - Flowrate - 45 m³/h |
The plate heat exchanger with 100 plates – model Ba-115-100 with a surface area of 11.50 square meters – was until recently the largest plate heat exchanger in the regular Nordic Tec range. Currently, however, the company also offers larger models in this series, with more than 100 plates and a greater heat exchange surface.
Heat exchangers with a slightly larger heat exchange surface – such as the models Ba-115-110 or Ba-115-130, which are also shown in the chart above – are also available in our store, up to the biggest 180-plate unit.
Dimensions - Plate Heat Exchanger Ba-115-100:
