Plate Heat Exchanger NORDIC Ba-115-80 2" 500 kW
Plate Heat Exchanger NORDIC Ba-115-80 2" 2800kW insulation
Plate Heat Exchanger NORDIC Ba-115-80 2" 500 kW
Plate Heat Exchanger NORDIC Ba-115-80 2" 2800kW insulation

Plate Heat Exchanger NORDIC Ba-115-80 2" 2800kW

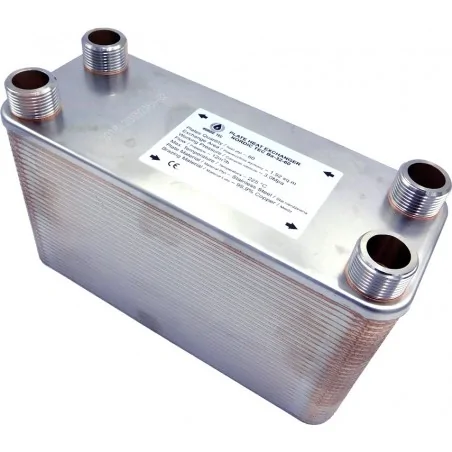

Plate Heat Exchanger with 2"  NORDIC TEC Ba-115-80

  • Plate Q'ty: 80 pcs.
  • Connections: 2" BSP
  • Heat Exchange Area: 9.200m²

The plate heat exchanger - with 80 plates - NORDIC TEC Ba-115-80 2" - is a device for heat transfer in heating and cooling systems. It provides reliable performance due to the use of a large surface area of steel plates. The 80-plate heat exchanger is specifically designed for high-demand applications and offers an effective way to exchange heat between two media flowing through the exchanger's two channels.

☑️ Fast availability of large Ba-115 heat exchangers
✅ This product is possible to deliver in most European countries

Reference: NT Ba-115-80
Condition New
Insulation option for Ba-115 Heat Exchanger
  • Without Insulation (an Exchanger only)
  • Heat Exchanger Ba-115 with Insulation Jacket
On stock
€1,479.99
VAT included



Heat Exchanger Nordic Tec Ba-115-80 - 4x 2", 80 plates

Brazed plate heat exchanger in stainless steel with copper, 2" connections, 80 plates

Heat Exchanger with 80 plates 2"

Plate heat exchanger with 80 plates – NORDIC TEC Ba-115-80 2" – designed for heat transfer in heating and cooling systems. The 2" plate heat exchanger ensures reliable performance thanks to the large surface area of the stainless steel plates. The 80-plate exchanger has been specifically developed for demanding applications and offers an efficient method of transferring heat between two fluids flowing through the two channels of the exchanger.

The 2" connection - a 2-inch thread - makes it versatile and suitable for various industrial applications, ensuring relatively high throughput. Due to its efficiency, it is also excellent as a heat exchanger for large heat pumps (it is definitely not a heat exchanger intended for single-family homes or systems of that scale).

Technical details - Heat Exchanger Nordic Tec Ba-115-80

- Stainless Steel S316L, brazed with 99,9% Cu

- Connections: 4x 2", BSP

- Working Pressure - <30 bar

- Test Pressure - 45-60 bar

- Max. temperature +230°C

- Flowrate - 45 m³/h

Plate Surface of a Heat Exchanger Ba-115-80 - 9.200 m²

80 plate heat exchange - Large Exchange Area BPHE

Thanks to the heat exchange surface indicated in the diagram, the Ba-115-80 unit will work perfectly as a plate heat exchanger, particularly as a heat exchanger for large heat pumps used in heating systems for industrial buildings.

If you need a larger heat exchanger, also take a look at other models from the Ba-115 series, with a slightly larger surface area. For example, this could be the 90-plate model Ba-115-90 or the 100-plate model Ba-115-100.


Dimensions - Heat Exchanger Ba-115-80

Dimensions - PHE Ba-115-80 2-inch threads

NT Ba-115-80
