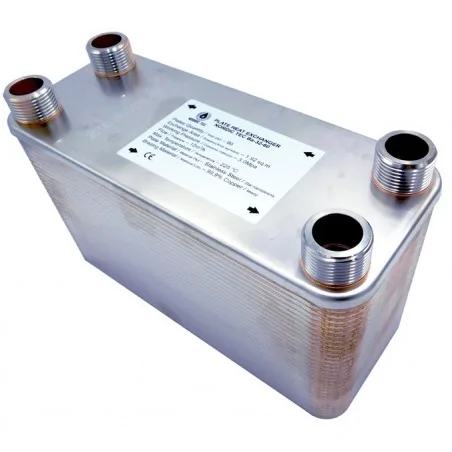

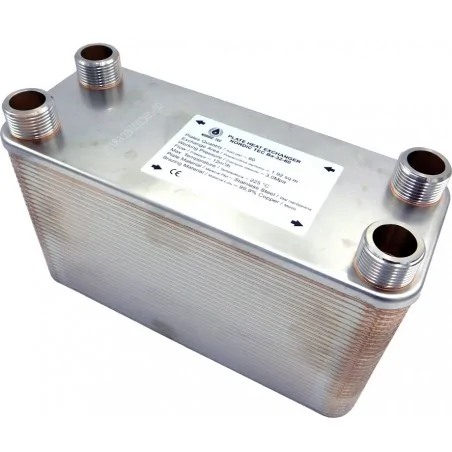

Plate Heat Exchanger NORDIC Ba-115-60 2" 2050kW

Plate Heat Exchanger 60 plates 2" NORDIC TEC Ba-115-60

Plate heat exchanger with 60 plates with 2" connections by Nordic Tec

  • Plate Q'ty: 60 pcs.
  • Connections: 2" BSP
  • Heat Exchange Area: 6.900m²
  • Heat Exchanger's weight: 38.5 kg
  • Package parameters: 60x30x28cm

A 60-plate heat exchanger used for heat exchange between media. This relatively large model, with a substantial plate surface area (heat exchange surface), is typically used in large heating or cooling systems.

The Ba-115-60 heat exchanger can be used in conjunction with heaters or larger heat pumps, for example, in heating large facilities such as hotels, warehouses, office buildings, or production and storage halls.

☑️ Fast availability of large Ba-115 heat exchangers
✅ We deliver in every European country
✅ Free delivery in: FR, IT, ES, DE, PL, SI, AT, DK, NL, BE, CZ, LV, EE, LT

Reference: NT Ba-115-60
Condition New

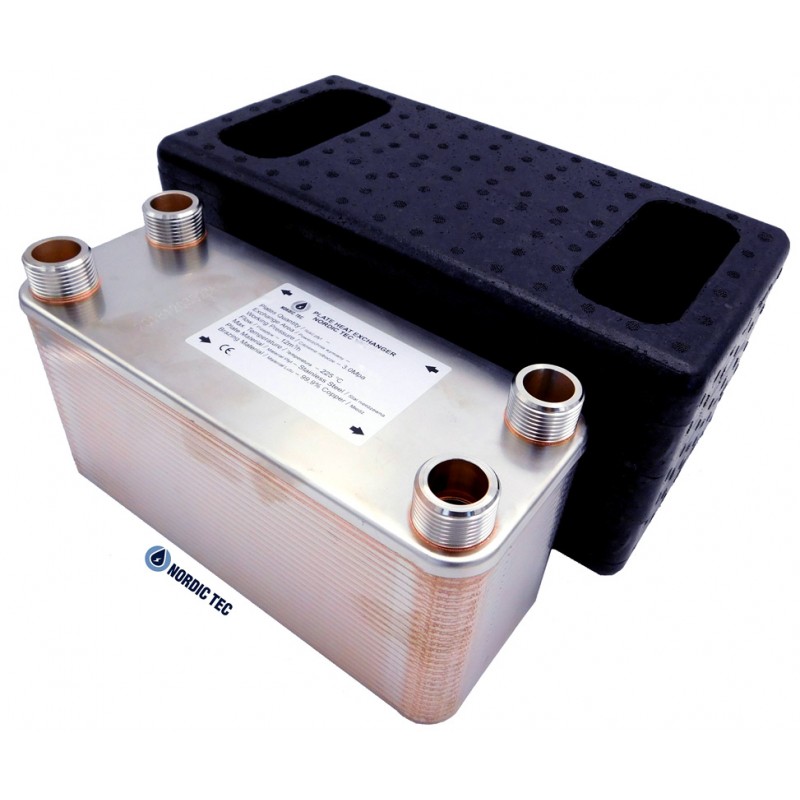

Insulation option for Ba-115 Heat Exchanger
  • Without Insulation (an Exchanger only)
  • Heat Exchanger Ba-115 with Insulation Jacket
On stock
€1,199.99
VAT included



Heat Exchanger Nordic Tec Ba-115-60 - 4x 2", 60 plates


Plate Heat Exchanger - Large Surface Ba-115-60 2"

Technical details - Heat Exchanger Nordic Tec Ba-115-60

- Stainless Steel S316L, brazed with 99,9% Cu

- Connections: 4x 2", BSP

- Working Pressure - <30 bar

- Test Pressure - 45-60 bar

- Max. temperature +230°C

- Flowrate - 45 m³/h



- Heat Exchange Surface - 6.900 m²
PHE Ba-115-60 2" - Heat Transfer Area


Dimensions:
Technical drawing BPHE Ba-115-60
(A) -
535 mm
(B) -
253 mm
(F) -
157 mm
(C) -
456 mm
(D) -
174 mm


In DOWNLOAD section you get the data sheet of the unit.
