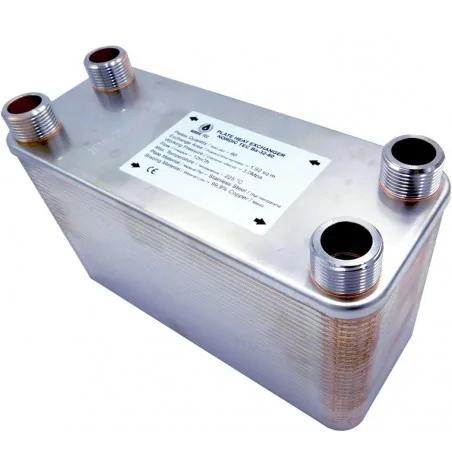

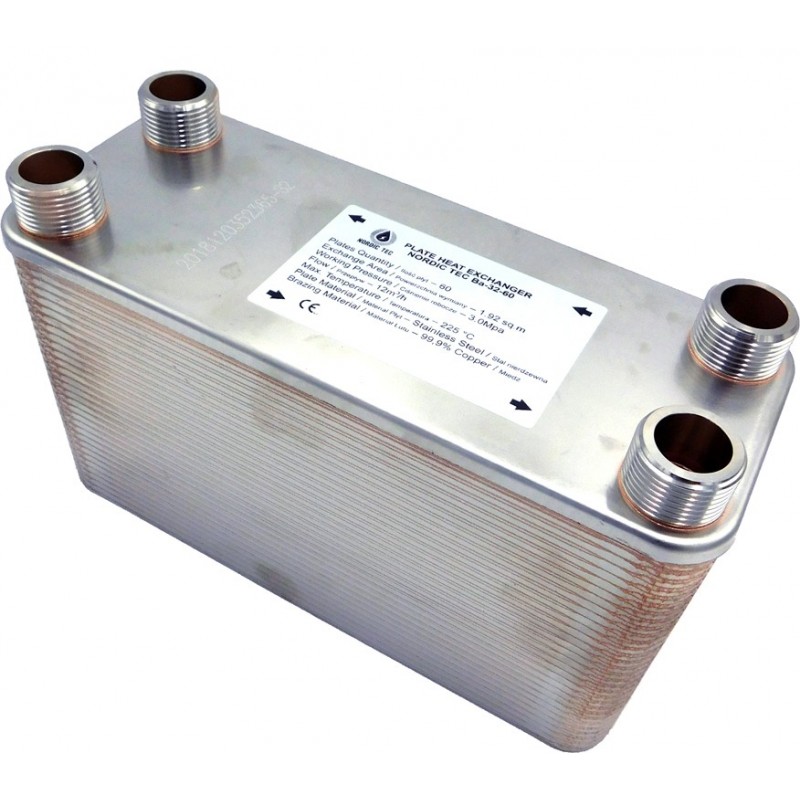

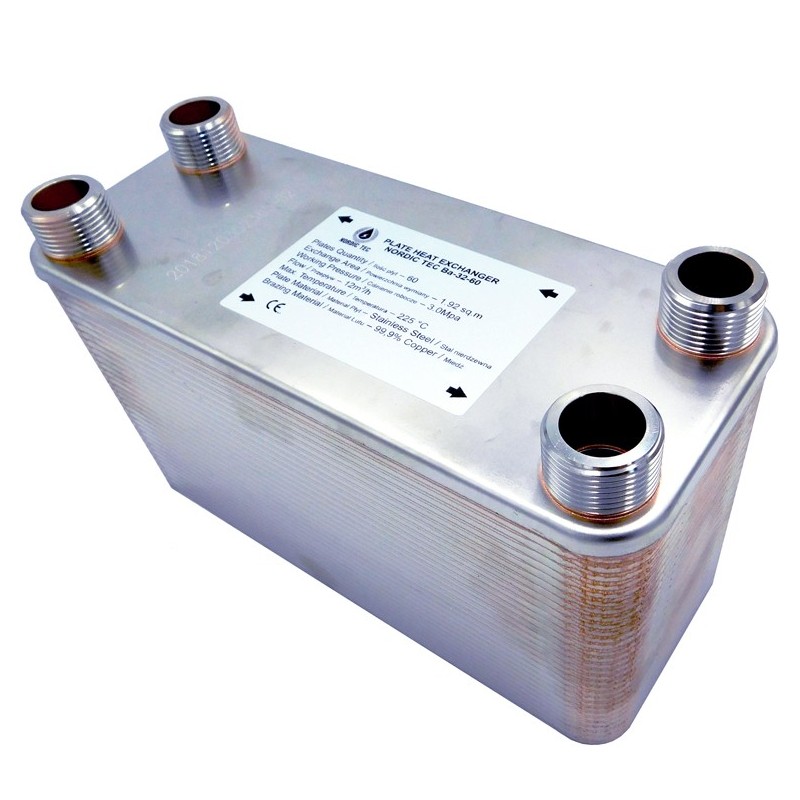

Plate Heat Exchanger NORDIC Ba-115-70 2" 2400kW

Plate Heat Exchanger 70-plates INOX NORDIC TEC Ba-115-70 2"

A brazed plate heat exchanger with 2-inch connections - a 70-plate model, designed for large heating and cooling systems.

  • Plate Q'ty: 70 pcs.
  • Connections: 2" BSP
  • Heat Exchange Area: 8.050m²

This product is possible to deliver in most European countries.

☑️ Fast availability of large Ba-115 heat exchangers
✅ We deliver in every European country
✅ Free delivery in: FR, IT, ES, DE, PL, SI, AT, DK, NL, BE, CZ, LV, EE, LT

Reference: NT Ba-115-70
Condition New

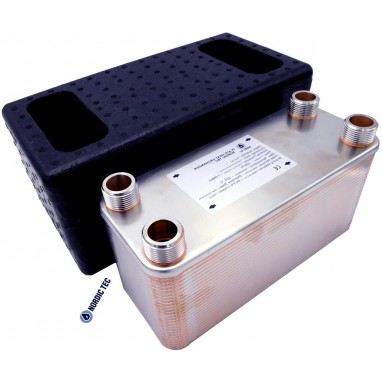

Insulation option for Ba-115 Heat Exchanger
  • Without Insulation (an Exchanger only)
  • Heat Exchanger Ba-115 with Insulation Jacket
On stock
€1,379.99
VAT included



Heat Exchanger 2" Nordic Tec Ba-115-70 - 4x 2", 70 plates

Brazed steel heat exchanger with copper, 2" connections, 70 plates

Heat Exchanger 2" Nordic Tec Ba-115-70 - 4x 2", 70 plates

Technical details - Heat Exchanger Nordic Tec Ba-115-70 2"

- Stainless Steel S316L, brazed with 99,9% Cu

- Connections: 4x 2", BSP

- Working Pressure - <30 bar

- Test Pressure - 45-60 bar

- Max. temperature +230°C

- Flowrate - 45 m³/h

Heat Exchange Surface of Ba-115-70 PHE : 8.050 m²

Heat Transfer Area Nordic Tec Ba-115-70 8m2

The Ba-115-70 2-inch heat exchanger has a heat exchange surface of 8.05 m². As seen in the above graph, this is not the largest of the Ba-115 exchangers. If your application requires exchangers with more plates or a larger plate surface, check out the larger models, such as the Ba-115-80 2" exchanger.
Optionally, the series includes models with up to 170 and 180 plates.


Dimensions - Ba-115-70 PHE:
Schema - BPHE Brazed Plate Heat Exchanger Ba-115-70
(A) -
535 mm
(B) -
253 mm
(F) -
175 mm
(C) -
456 mm
(D) -
174 mm


In DOWNLOAD section you get the data sheet of the unit.
