Plate Heat Exchanger NORDIC Ba-115-50 2" 1700kW

Read user reviews (1)

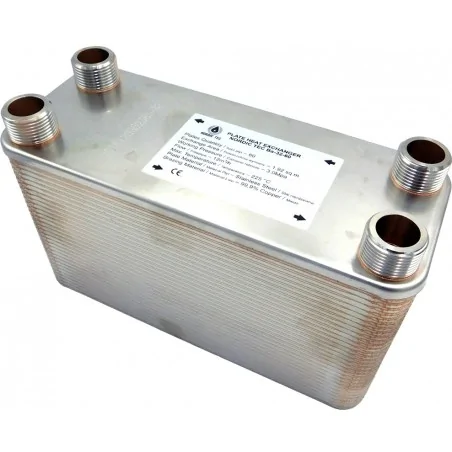

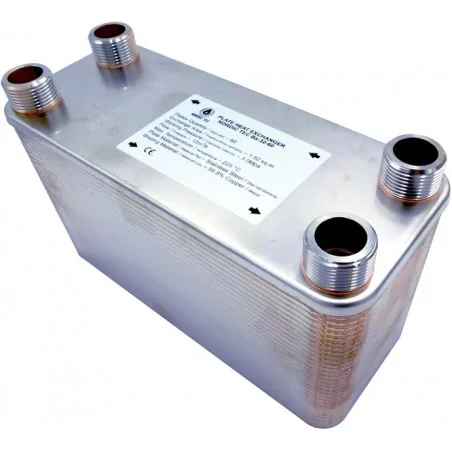

Heat Exchanger with 50 plates NORDIC TEC Ba-115-50

  • Plate Q'ty: 50 pcs.
  • Connections: 2" BSP
  • Heat Exchange Area: 5.750m²
  • Package parameters: 60x30x28cm

A large-sized plate heat exchanger with 2" / DN 50 connections. This plate heat exchanger is designed for heat exchange in large, demanding systems - both cooling and heating. It can handle large thermal nodes or large buildings, for example, those powered by heat pumps or cascades of gas boilers.
This is not a device for a single-family home; it is rather intended for larger facilities.

A 50-plate exchanger with a total heat transfer area of 5.75 m². The exchanger can be purchased with thermal insulation made of EPP.

✅ Quick deliveries in whole Europe

Reference: NT Ba-115-50
Condition New
On stock
€1,099.99
VAT included



Heat Exchanger with 2" connections - Nordic Tec Ba-115-50 - 4x 2", 50 plates

Large industrial heat exchanger, with a plate surface area of almost 6 m².



Large Plate Heat Exchanger for bigger heating installations Ba-115-50

Technical details:

  • Stainless Steel S316L, brazed with 99,9% Cu

  • Threads: 4x 2", BSP, external

  • Operation Max. Pressure - <30 bar
    Test Pressure - 45-60 bar

  • Max. temperature +230°C

  • Flowrate - 45 m³/h


- Heat Exchange Surface - 5.750 m²

Ba-115-50 Industrial Plate Heat Exchanger 2"

The Ba-115-50 heat exchanger has a surface area of 5.75 m², which means it can be considered a predominantly industrial heat exchanger. A plate surface area of nearly 6 m² allows it to handle large heat pumps, as well as buildings such as apartment complexes or commercial facilities.

Other heat exchangers shown in the chart, with a similar exchange surface — such as the Ba-95-50 2" or Ba-115-60 2" models — are also available in our catalog.


Dimensions:
Heat Exchanger Ba-115-50 for heat pumps 40 kW
(A) - 535 mm
(B) - 253 mm
(F) - 135 mm
(C) - 456 mm
(D) - 174 mm


In DOWNLOAD section you get the data sheet of the unit.
