Hydraulic separator for a gas boiler – is it necessary?

In modern gas-powered heating systems, the question sometimes arises: is a hydraulic separator for a gas boiler necessary, or can the heating system operate without it? In theory, many systems supplied by gas boilers can work properly without a separator, however in practice everything depends on the system design, the number of circuits and the type of heat emitters. In this article we explain when a hydraulic separator makes sense and when it can be omitted.

It is certainly worth noting that a hydraulic separator is not a magical component whose installation always improves the operation of a gas boiler or reduces gas consumption. A separator does solve a number of problems, but it is used in clearly defined situations when there are valid reasons for it. Read on to learn more.

What is a hydraulic separator for a gas boiler and how does it work?

A hydraulic separator is a component of a central heating system whose purpose is to hydraulically separate the boiler circuit from the heating circuits. In fact, the term separator for a gas boiler is somewhat conventional, because hydraulic separators work with various heating devices, such as heat pumps or pellet boilers. They can serve both underfloor heating systems and radiators – and regardless of the application their construction and operating principle remain the same.

This means that a separator in a heating system supplied by a gas boiler:

• stabilizes flow between the boiler and the installation,
• prevents interference between circulation pumps,
• allows several pump circuits with different parameters to operate together (for example when a building has multiple heating circuits, such as in multi-storey or more extensive systems).

In practice the separator works somewhat like a “flow buffer”, equalizing pressure differences and ensuring stable operation of the entire system. It divides the installation into two sections, each operating as a separate pump circuit. Of course this is a simplified explanation – there are also separators that divide the central heating system into more sections, or separators with an integrated manifold.

On stock

Plate Heat Exchanger NORDIC Ba-23-30 3/4" 125kW

NT Ba-23-30

€111.50

Add to basket

On stock

Classic Low Loss Header for 2 circuits - 50 kW

Sp50x1

€96.99

Add to basket

On stock

Low Loss Header 50 kW with thermometer & manometer

SNT-A-70

€111.50

Add to basket

Is a hydraulic separator for a gas boiler always necessary?

No – definitely not every gas boiler installation requires a separator. Since the separator stabilizes flows and prevents disturbances between pumps, it means that it should be installed in systems where such problems have occurred – or where they are expected to occur when the installation is still at the design stage. A professional heating system designer is able to predict such potential problems; they usually occur in larger and more complex installations. They typically do not appear in small buildings or simple heating systems – and in such cases a hydraulic separator will generally not be necessary.

In summary, a hydraulic separator for a gas boiler is usually not required in simple systems where:

• there is only one heating circuit,
• there is only one circulation pump assumed to be sufficient for the entire heating system,
• there are no boiler manifolds (not to be confused with underfloor heating manifolds, which are something different),
• the installation has a relatively small water volume.

In such cases a gas boiler (especially a condensing boiler with a modulating pump) can often operate without additional separating components. However, if the separator was not installed during construction, it can usually be added later – and this is not considered a particularly difficult modification.

When is a hydraulic separator recommended for a gas boiler?

The situation changes when the central heating system becomes more complex. A hydraulic separator will support the gas boiler and improve heating performance when:

• there are several heating circuits (for example radiators + underfloor heating),
• different supply temperatures are required,
• manifolds and mixing pump groups are used,
• the installation covers a large area,
• the boiler has a small water capacity (which is typical for modern gas boilers).

In such systems the hydraulic separator stabilizes boiler operation and prevents short cycling (frequent switching on and off). As a result, gas combustion becomes more efficient – meaning the boiler may consume less fuel to heat the building effectively, which naturally has a positive effect on gas bills. It can also help avoid cold zones within the building.

Hydraulic separator and protection of the gas boiler

One of the important arguments for installing a hydraulic separator for a gas boiler is the protection of the boiler’s heat exchanger. A vertical separator also acts as an air separator and to some extent as a sediment chamber – essentially functioning as a type of dirt separator. Any contaminants present in the system that would otherwise enter the boiler (which is a sensitive device) encounter an obstacle in the form of the separator, whose bottom acts as a natural sediment trap. For this reason the separator includes a drain valve at the bottom, allowing these impurities to be removed.

Protection of the gas boiler by the separator also comes from ensuring stable flow conditions. Lack of stable flow may cause:

• overheating of the heat exchanger,
• noise within the installation,
• flow errors forcing continuous boiler automation operation (leading to faster wear and potentially more failures),
• a reduced boiler lifespan.

A hydraulic separator for a gas boiler helps maintain the minimum required flow through the heat exchanger, even when one of the circuits is closed by thermostatic valves.

On stock

Plate Heat Exchanger NORDIC Ba-16-40 1" 150kW

NT Ba-16-40

€157.50

Add to basket

On stock

Low Loss Header 2+1 Hydraulic Separator SNT25 for 3 circuits - 70 kW

SNT25

€102.50

Add to basket

On stock

Magnetic filter 3/4" Nordic Tec DN 20

Magnetic-Filter-3/4"-NT

€65.99

Add to basket

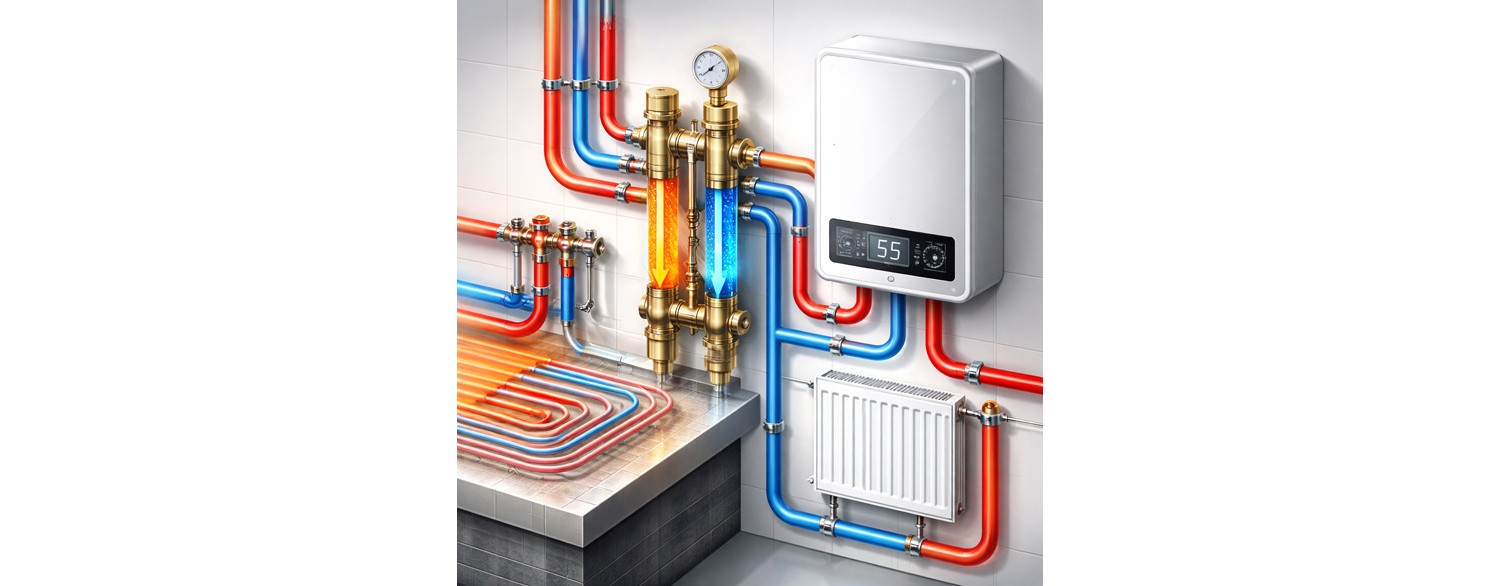

Hydraulic separator for a gas boiler and underfloor heating

In combined systems (radiators + underfloor heating), a hydraulic separator is often a very good solution.

Why? For several straightforward reasons already mentioned above:

• underfloor heating operates at a lower temperature than radiators, meaning there are circuits with different temperature requirements that should be separated into independent pump circuits,
• underfloor heating supplied by a gas boiler requires its own pump and a mixing valve,
• it creates different hydraulic resistance compared to the radiator circuit.

Separating the circuits with a hydraulic separator allows each of them to operate independently without interfering with the flow of the others.

Does a hydraulic separator increase the cost of a gas boiler installation?

Yes – theoretically it is an additional component that generates purchase and installation costs. However, it should be noted that these costs are not particularly high. The separator itself is a very simple device that works based on the laws of physics and represents a relatively small fraction of the total cost of a boiler room with a gas boiler.

It is worth looking at the broader perspective:

• it improves system stability,
• reduces the risk of failures,
• limits boiler short cycling,
• may extend the lifespan of both the system components and the boiler itself.

In complex installations the absence of a separator may lead to higher service costs in the future.

On stock

Plate Heat Exchanger NORDIC Ba-32-30 1" 175kW

NT Ba-32-30

€173.99

Add to basket

On stock

Plate Heat Exchanger NORDIC Ba-32-40 1" 230kW

NT Ba-32-40

€212.50

Add to basket

On stock

Underfloor Heating Manifold UFH Manifold NORDIC TEC 5 circuits

DE-RD-CO-5

€115.99

Add to basket

Is a hydraulic separator for a gas boiler necessary?

The answer is: it depends on the specific case. It is necessary when the conditions described above are present, but it will not provide additional benefits in simple or small heating systems. In such systems it may simply be unnecessary.

In more complex installations, however, it is often a component that significantly improves the stability, safety and comfort of the entire heating system.

The key is to match the solution to the actual design of the installation rather than installing a hydraulic separator “just in case” or completely omitting it without proper analysis.
