An expansion vessel is an essential component of every central heating (CH) and domestic hot water (DHW) system. Its main task is to protect the system against an excessive rise in pressure, which could lead to damage. It acts as a buffer, absorbing excess pressure and stabilising the operation of the entire installation, ensuring safety. There are two basic types of expansion vessels: open and diaphragm. Open models, used mainly in older systems, regulate pressure naturally because they remain in contact with the atmosphere. Diaphragm vessels, thanks to their modern design, allow precise pressure control and are the standard in modern installations. Without an expansion vessel, CH and DHW systems would be exposed to sudden pressure spikes, which could lead to failures, costly repairs, and even interruptions in heat supply. This component is responsible for the stability of the installation, protecting it against damage and extending its service life. Selecting the right model is crucial for the efficiency and safety of the heating system. A properly selected expansion vessel affects the durability and performance of the entire installation, ensuring reliability for many years.
An expansion vessel is a key component of any heating system, responsible for compensating for the increase in water volume as it is heated. Thanks to this, pressure in the system remains stable, which protects the installation from damage and extends its service life. How does it work in practice? As the temperature rises, water increases in volume. Excess liquid flows into the expansion vessel, preventing a sudden rise in pressure. In older systems, especially those with solid fuel boilers, open expansion vessels are used. They are installed at the highest point of the water circuit, which allows natural pressure equalisation – particularly important in systems without modern control mechanisms. Modern heating systems, especially those with gas and oil boilers, use diaphragm expansion vessels. These are sealed tanks fitted with a flexible membrane that separates water from air, enabling precise pressure control. The optimal pre-charge pressure in such a vessel is typically 1.5 bar for central heating installations and 3.5 bar for domestic hot water systems. Maintaining the correct pressure is crucial for stable, trouble-free operation of the entire installation. The expansion vessel works together with other system components such as a safety valve and a pressure gauge. The safety valve protects the installation against an excessive rise in pressure, while the pressure gauge enables ongoing monitoring of parameters, allowing a quick response in the event of irregularities. The mechanism of compensating for the increase in water volume in an expansion vessel is not only a technical solution, but also a key element ensuring the safety and efficiency of heating systems. In modern installations, central heating hydraulic separators are also increasingly used to stabilise flow and pressure between the boiler and heating circuits, additionally protecting the system against overload. As technology develops, even more advanced solutions can be expected, increasing the reliability and efficiency of these systems.
In heating systems, expansion vessels play a key role, stabilising pressure and protecting the installation against dangerous spikes. We distinguish two basic types of vessels: open and diaphragm. Each has specific features that determine their use in different systems. Open expansion vessels are a traditional solution, often used in installations with solid fuel boilers. Their design enables natural pressure equalisation, which works particularly well in older systems. In turn, diaphragm expansion vessels are a modern alternative used in sealed installations, where precise pressure control is essential. The main difference between these solutions lies in their design and how they operate. Open vessels are installed at the highest point of the system, allowing excess water and steam to be discharged freely. Diaphragm vessels, thanks to a flexible membrane, compensate for changes in water volume, which is crucial in sealed systems.
An open expansion vessel is an indispensable element of installations with solid fuel boilers. Its main function is to discharge excess water and steam, preventing an uncontrolled rise in pressure. It is installed at the highest point of the system, which enables natural pressure equalisation. It works with the boiler via a riser pipe, which ensures the free flow of water and steam to the vessel. In addition, an overflow pipe discharges excess water to the drain, increasing the safety of the entire installation. Thanks to their simple but effective design, open vessels are often used in older heating systems.

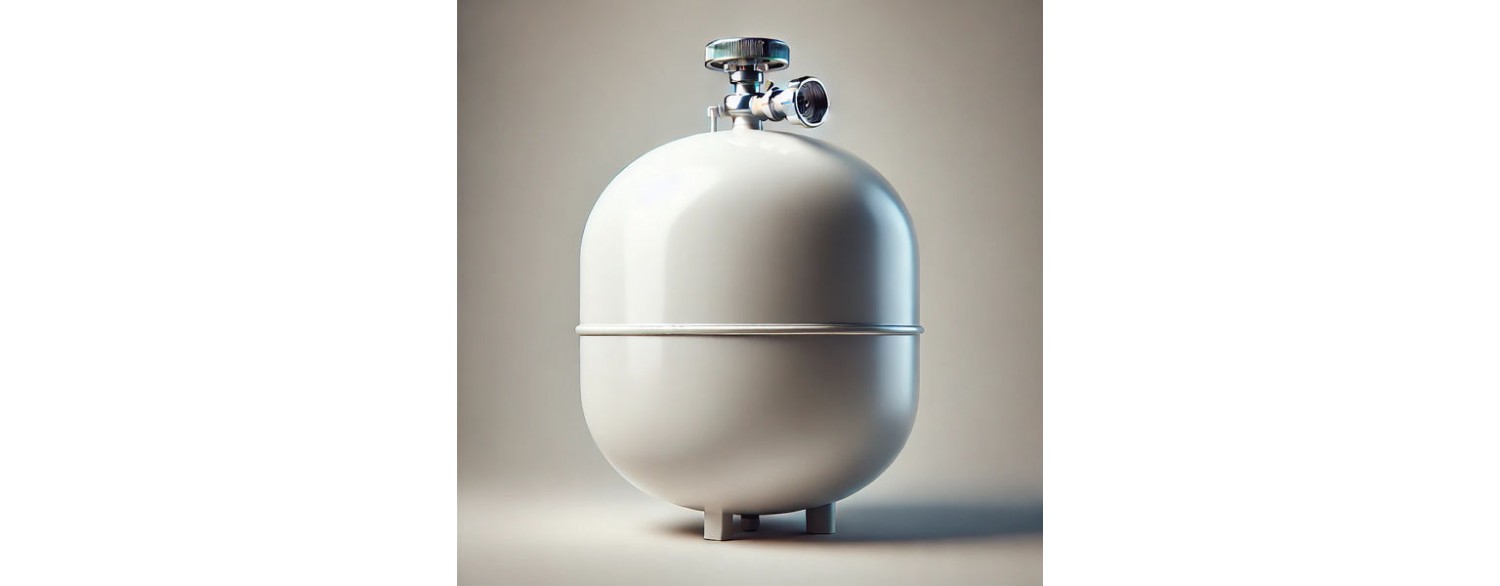

A diaphragm expansion vessel is a modern solution intended for sealed installations. It consists of two chambers – a water chamber and a gas chamber – separated by a flexible membrane. This design allows precise pressure regulation, which is crucial for the safety and efficiency of the system. The membrane in pressurised diaphragm vessels plays an important role, enabling compensation for changes in water volume. Thanks to this, it prevents sudden pressure spikes, which is particularly important in installations with gas and oil boilers. Precise pressure control means that diaphragm vessels are an indispensable element of modern heating systems.
Selecting the right expansion vessel is crucial for safe and efficient operation of a heating installation. To avoid problems, you should pay attention to several important parameters.
Selecting an expansion vessel is not only a technical matter, but also a strategic decision. A properly selected model affects the long-term performance and safety of the installation, so it is worth taking the time to analyse all parameters thoroughly.
Correct installation of an expansion vessel is the basis for stable and efficient operation of a heating system. It is best to place it near the heat source, which minimises pressure losses and increases the efficiency of the entire installation. Incorrect placement can lead to uneven system operation, and in extreme cases even to system failure. Proper pre-charge pressure adjustment is equally important. The standard range is from 1.5 to 3.5 bar, but it is worth adjusting it to the specific installation before it is filled with water. Precise adjustment allows pressure fluctuations to be compensated effectively, protecting the system against damage and extending its service life. You must not forget the safety group, which includes the diaphragm vessel, safety valve, and pressure gauge. Together, these components protect the installation against an excessive rise in pressure. Therefore, the expansion vessel must be installed in a way that enables their effective cooperation. Incorrect placement can reduce the effectiveness of the safeguards and increase the risk of failure. Precise selection of the installation location and appropriate adjustment are the key to safe and efficient operation of a heating system. Regular inspections and maintenance are the best way to avoid unexpected issues and increase the reliability of the entire installation.
One of the most common issues associated with expansion vessels is membrane damage – a key element stabilising pressure in the system. A membrane failure can lead to sudden pressure spikes, frequent pump start/stop cycles, sudden pressure drops, and water leaks. To avoid these problems, the condition of the membrane should be checked regularly and replaced with a new one if necessary. A leak in an expansion vessel can be recognised by several characteristic symptoms. If the pump runs more often than usual, system pressure suddenly drops, or leaks appear, this may indicate membrane damage. In such a situation, it is worth carrying out a pressure test to ensure the system is operating correctly. Proper installation of the vessel is just as important. For diaphragm models, correct installation and adjustment are crucial, ensuring optimal system operation. Incorrect installation can lead to pressure issues and accelerated membrane wear. Therefore, the manufacturer’s recommendations for installation and maintenance should be followed. For an expansion vessel to operate reliably for a long time, regular maintenance is necessary. It includes:
Thanks to these actions, many failures can be avoided and the entire installation can be kept operating smoothly.
Regular checks of membrane tightness are a key part of expansion vessel maintenance. The membrane separates the water chamber from the gas chamber and compensates for changes in water volume in the installation. A leak can lead to serious pressure problems, so it is worth monitoring its condition systematically and replacing it if necessary.
Damage to an expansion vessel can manifest in various ways. The most common symptoms are:
Such signs may indicate problems with the membrane or other vessel components. A quick response to these signals helps avoid more serious failures and costly repairs.
Replacing an expansion vessel is necessary when the damage is serious enough that repairs no longer bring results. Regular assessment of the membrane condition and the overall condition of the vessel helps you make the right decision about replacement. Systematic maintenance can significantly extend the vessel’s service life, but in some cases replacement is unavoidable.
