Low Loss Header Manifold 2 with Thermometer & Manometer

Nordic Tec Hydraulic Separation - Manifold 2 circuits with temperature and pressure control

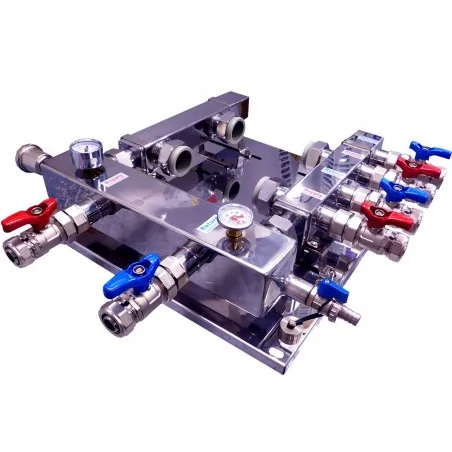

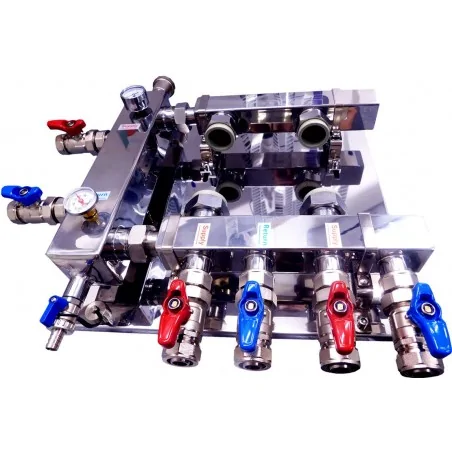

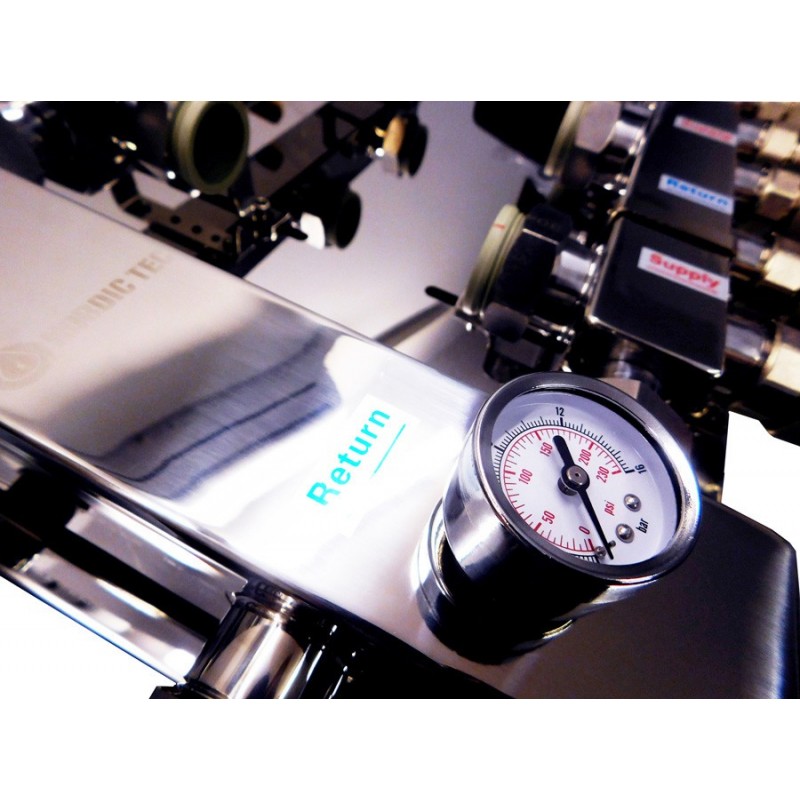

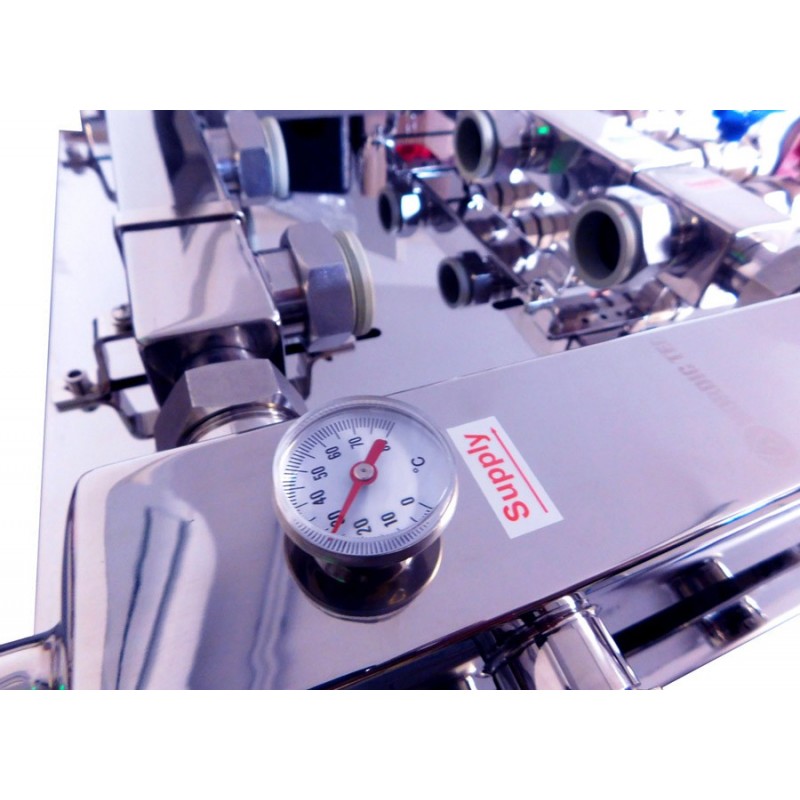

- Low Loss Header with hydraulic Manifold for 2 heating circuits on a mounting plate, fully equipped with a prepared space for circulation pumps - with thermometer and pressure gauge (manometer).

The water hydraulic seprator set - Low Loss Header combined with the manifold / circulation collector for 2 circuits - performs better than a traditional heating separator, due to the fact that the collectors' beams reinforce the hydraulic separation function, by creating an additional neutral pressure zone.

☑️ Fast delivery to most European countries - just in few days.
✅ Free shipment of the low loss header in the following countries: FR, ES, IT, AT, DE, NL, BE, DK, PL, CZ, LT, LV, SI, EE

Reference: SCZ-2ob
Condition New
On stock
€264.99
VAT included



Low Loss Header Manifold 2 with Thermometer & Manometer - more details

  • Hydraulic separator (Low Loss and cicruits divider are mounted on a plate for ready wall installation, which is about to save your time

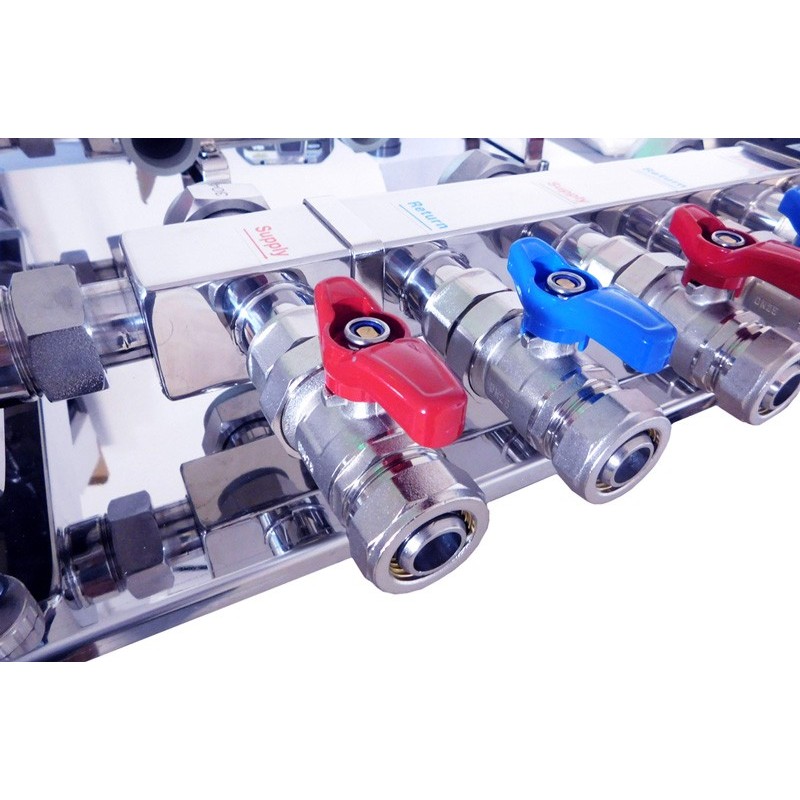

  • Connections for circuits (both heating system and supply side), with a size of 1" - factory equipped with a nut and a 25mm PEX connector
  • Hydraulic Separation power - up to 70 kW with a temperature difference of 15K ( while the entire set can handle 85 kW )
  • Includes a drain valve and automatic air vent for installation - on the hydraulic separation body
  • Accessories connections for the water separator corpus, such as air vent and drain valve - 1/2" - traditionally internal threads
  • Maximum flow rate - < 6.0 m3/h.
  • Permissible operating temperature for the central heating system is <95 °C.
  • Recommended maximal concentration of glycol in water - up to 50% (if used with glycol)
  • Hydraulic separation body and flow distribution manifolds made of galvanized steel. Steel prepared as a mirror style
  • Designed for use with 2 standard 180mm pumps
  • Also includes a set of 4 solid 80mm mounting pegs.

SCZ-2ob
