Low Loss Header-Hydraulic Manifold 2 circuits for 2 pumps
Hydraulic separator-Low Loss Header set for heating systems for 2 circulation pumps
Low Loss Header-Hydraulic Manifold 2 circuits for 2 pumps
Hydraulic separator-Low Loss Header set for heating systems for 2 circulation pumps

Low Loss Header-Hydraulic Manifold 2 circuits for 2 pumps

Hydraulic separator-Low Loss Header set for heating systems – for 2 circulation pumps

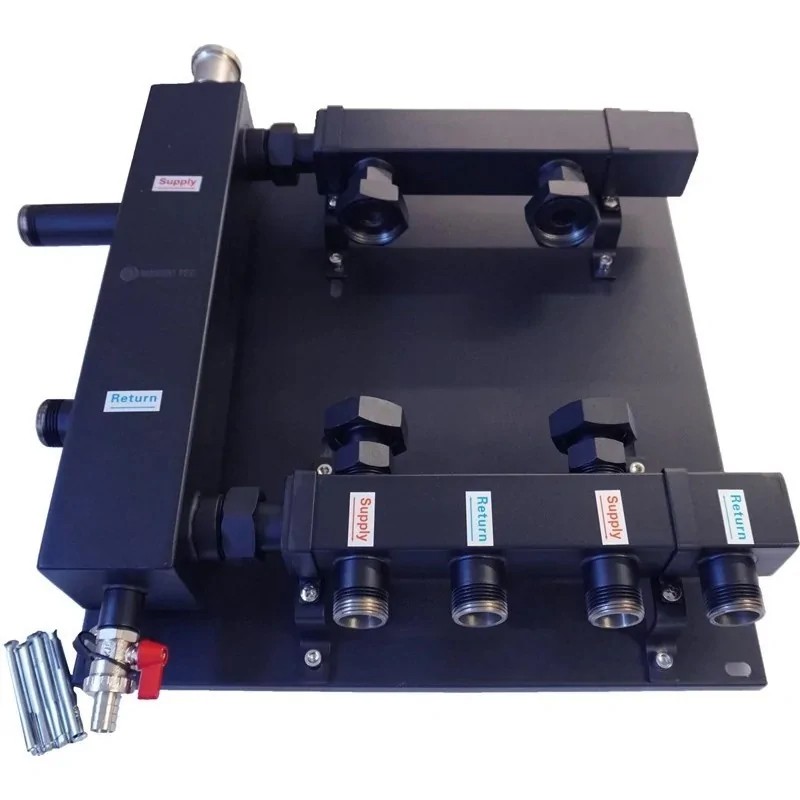

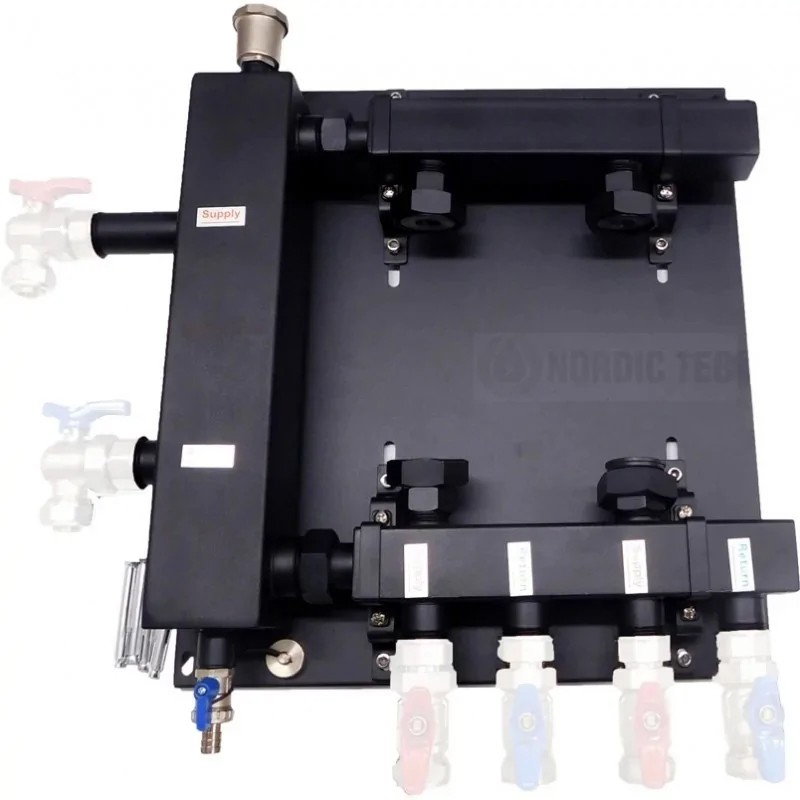

Hydraulic separator, low loss header with distributor of circuits for heating systems – mounted on a plate with provisions for 2 circulation pumps (180mm).

This set, consisting of a hydraulic separator-distributor for 2 circuits (for 2 pumps) (+ supply piping), ensures better performance compared to a traditional hydraulic separator. The distribution sections for 2 heating circuits further enhance the hydraulic separator's function, creating a neutral pressure zone in the heating system so that individual pump circuits do not interfere with each other. The mixing function is thus achieved more efficiently.

☑️ In this version, the set comes with bare threaded connections in inches (no additional fittings included).
✅ Delivery is possible in every european country. The shipment is free in the following destinations:
FR, IT, ES, DE, PL, SI, AT, DK, NL, BE, CZ, LV, EE, LT

Reference: NT-SCZ-2ob-b-z
Condition New
Out-of-Stock
€214.99
VAT included



More technical parameters of a Hydraulic separator-Low Loss Header from this offer

  • The hydraulic separator with distributor is mounted on a plate – Plate dimensions: 45.0 x 50.0 cm (length x height)
  • Connections for flow and return of the 2 heating circuits – in 1" size – in this version, without additional fittings, etc.
  • The hydraulic separator's capacity is up to 70 kW with a 15K temperature difference, while the entire set can handle 85 kW (considering the distributors).
  • A drain valve and an automatic air vent (direct accessories of the hydraulic separator) are included. Connections for these accessories are in 1/2" size.
  • Maximum flow rate: 6.0 m³/h
  • Maximum operating temperature: < 100.0 °C
  • Suitable for use with glycol-water mixtures – recommended concentration up to 50%.
  • Hydraulic separator and distributor housings made of stainless steel.
  • Fully painted black, powder-coated finish.
  • The set is designed for two pumps, i.e., for 180 circulation pumps (e.g., 25-40 180, 25-60 180, 25-80 180, etc.).
