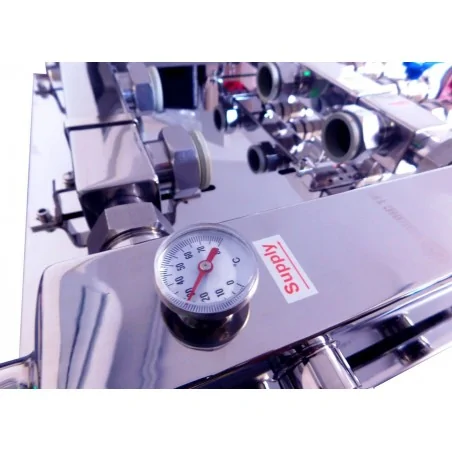

Hydraulic Separator Nordic Tec with 3 heating cirlces manifold thermometers

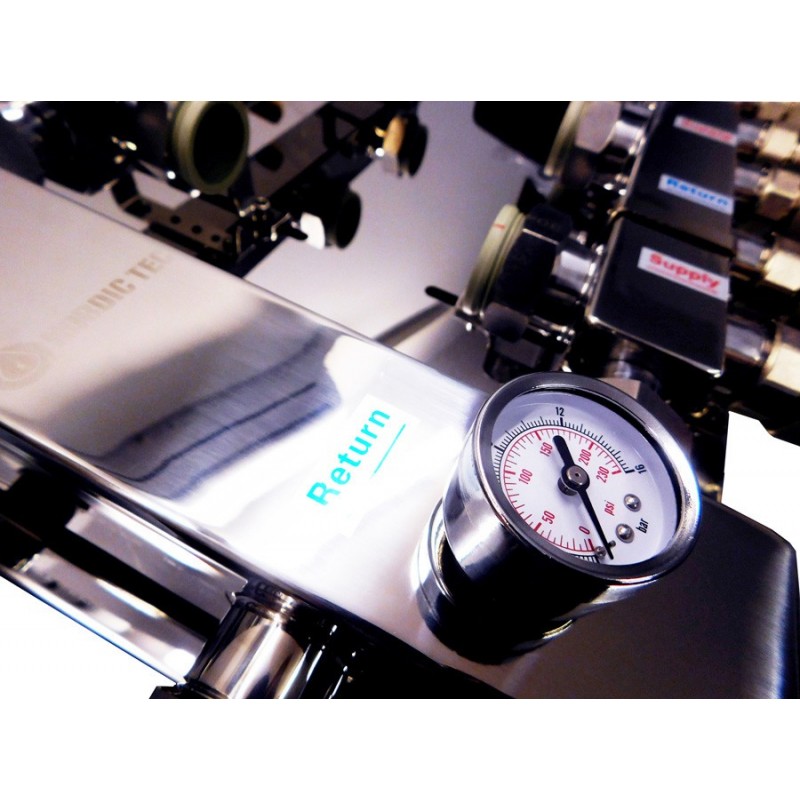

Hydraulic Separator Nordic Tec with 3 heating cirlces manifold manometer

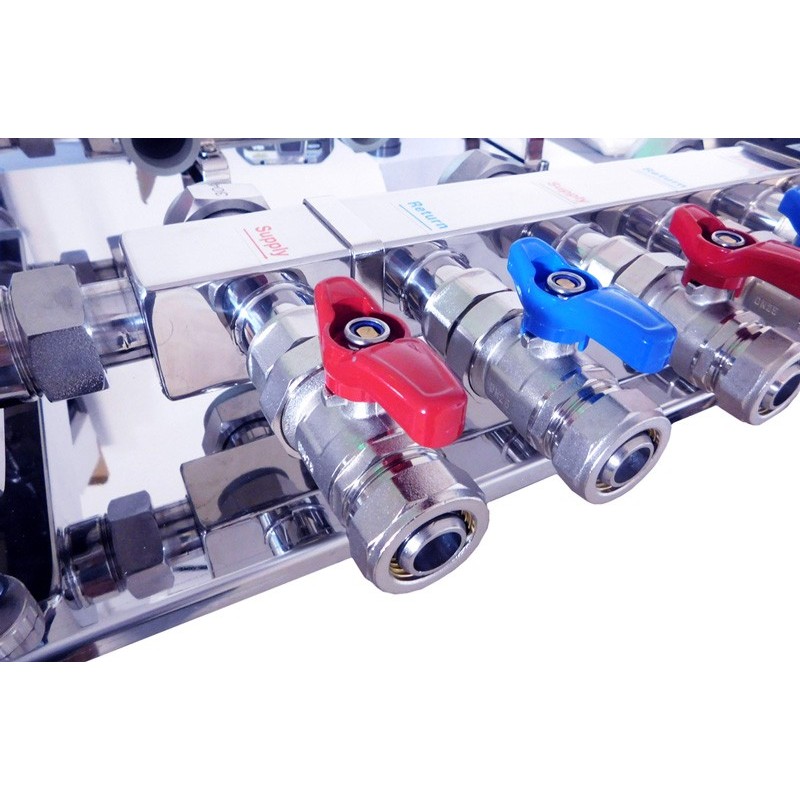

Hydraulic Separator Nordic Tec with 3 heating cirlces manifold adapters

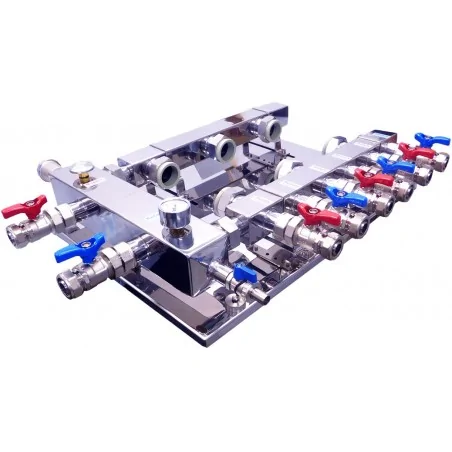

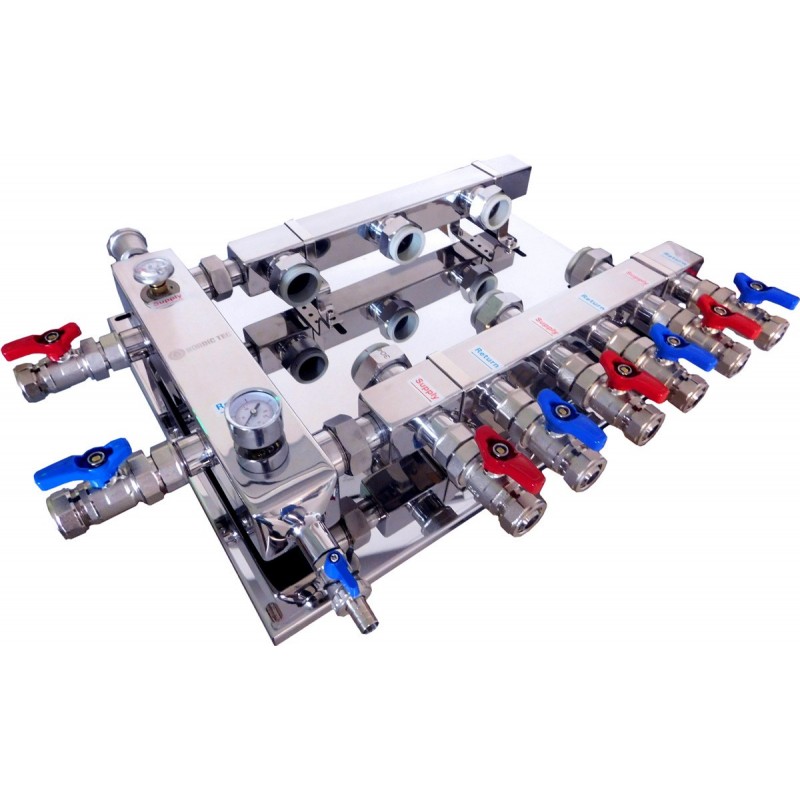

Hydraulic Separator for central heating with a 3 circle manifold
Hydraulic Separator for central heating with a manifold with thermometer
Hydraulic Separator Nordic Tec with 3 heating cirlces manifold thermometers
Hydraulic Separator Nordic Tec with 3 heating cirlces manifold manometer
Hydraulic Separator Nordic Tec with 3 heating cirlces manifold adapters
Hydraulic Separator for central heating with a 3 circle manifold
Hydraulic Separator for central heating with a manifold with thermometer

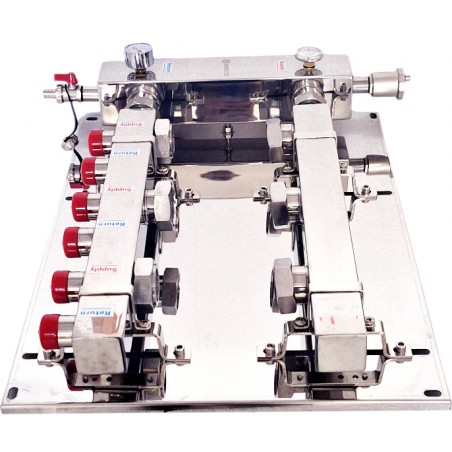

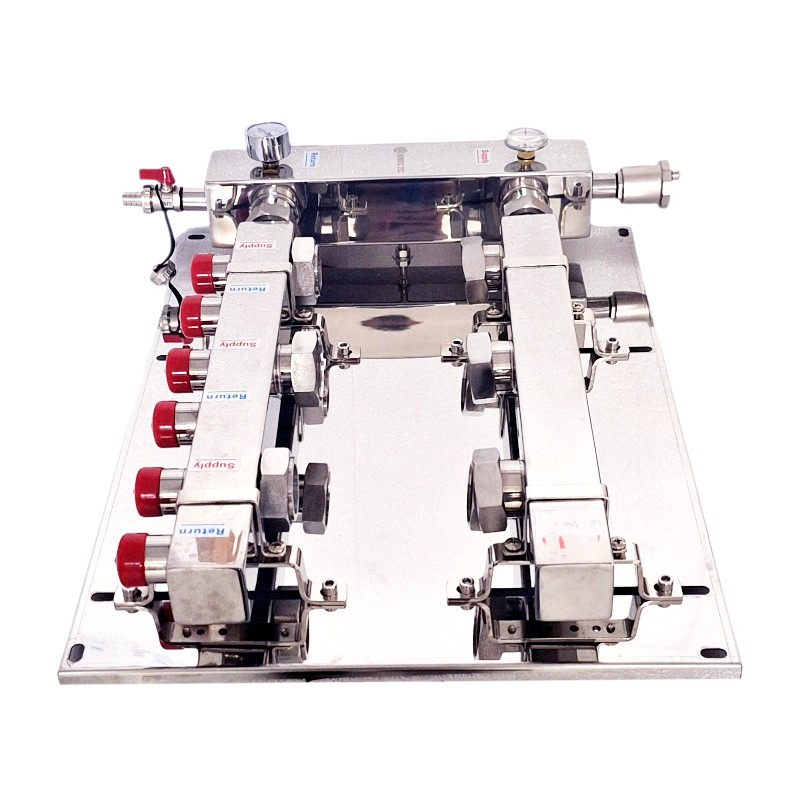

Low Loss Header - Manifold 3 with Thermometer & Manometer (for 130mm-Pump)

Nordic Tec LOW LOSS HEADER Hydraulic Separation - Manifold 3 circuits with temperature and pressure control

✅ The set for pumps of 130mm

The steel hydraulic sepration system - Low loss header combined with the flow distibutor - 3 circuit manifold. The system gives better possibilities than a traditional hydraulic separators or separation systems. The steel manifolds (collectors) increase the hydraulic separation - making a neutral pressure zone larger and giving the opportunity to divide a central heating for 3 independent circuits,

The dimension of the mounting board / plate of this low loss header is 67 x 50 cm

☑️ Fast delivery to most European countries - just in few days.
✅ Free shipment of the low loss header in the following countries: FR, ES, IT, AT, DE, NL, BE, DK, PL, CZ, LT, LV, SI, EE

Reference: SNT-BL-3
Condition
On stock
€314.99
VAT included



Low Loss Header - Manifold 3 with Thermometer & Manometer (for 130mm-Pump) - more information

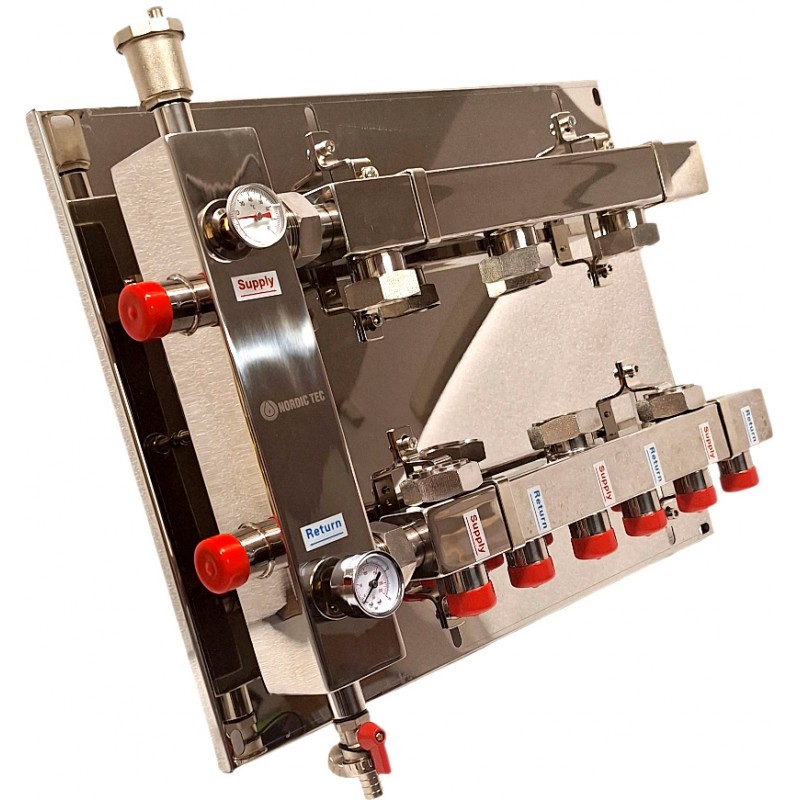

  • Wall-mounting plate for quick installation, the set includes the wall-mounting pegs too.
  • Connections in a size of 1" - factory equipped with a nut and a 25mm PEX adapter
  • Hydraulic Separation power - up to 70 kW with a temperature difference of 15K, whereas the entire set with manifolds can handle 95 kW
  • Drain valve and automatic air vent in the set
  • Accessories connections (air vent and drain valve) - 1/2" - internal threads
  • Max. allowable flow rate - 6.00 m3 / h
  • Work temperature - max. <95 °C
  • Can work with glycol/water mix too - recommended concentration < 50%
  • Hydraulic Separator-Manifold - distributor collectors are made of stainless steel S304. Mirror steel look
  • Designed for use with 3 standard ✅ 130mm circulation pumps

Low loss header with Distributor Nordic Tec - 3 Heating or DHW Circuits

✅ The low loss header from this offer is prepared for circulation pumps of 130mm

The hydraulic separator - low loss header with a 3-circuit distributor is an innovative solution that integrates the functions of a central heating separator and a hydraulic distributor into one device. This separator-distributor combination allows for simultaneous control and regulation of hydraulic flow in heating systems, ensuring optimal efficiency and thermal comfort.

The Nordic Tec low loss header with a water distributor is an excellent solution for installations with multiple heating circuits - in this case, 3 circuits - where precise adjustment of flow and temperature in each circuit is necessary. This enables efficient control of the temperature in different zones, providing optimal conditions for central heating users, i.e., the building's occupants.

This advanced system - the hydraulic module - utilizes thermometers and manometers to monitor the temperature and pressure in the hydraulic separator. This allows for real-time monitoring of the parameters and enables a quick response to any changes or issues in the system, allowing for prompt action without waiting for a problem in the heating system to escalate.

The 3-circuit manifold with a water distributor also offers many benefits, such as easy installation and maintenance (particularly due to the implementation of mounting the devices on a plate), high reliability and durability, and the possibility of future system expansion, for example, by further branching out the heating circuits. This makes this hydraulic distributor set an ideal solution for both new installations and the modernization of existing heating systems.

If you are currently or will soon be looking for an innovative solution for controlling and regulating flow in a heating system, it is worth considering the 3-circuit hydraulic separator with a distributor. Check out the full catalog of Nordic Tec separator-distributors.
