Heating Circuits Manifold for Pump Groups | Nordic Tec 4-8

Large Manifold for Pump Groups | Nordic Tec 4-8

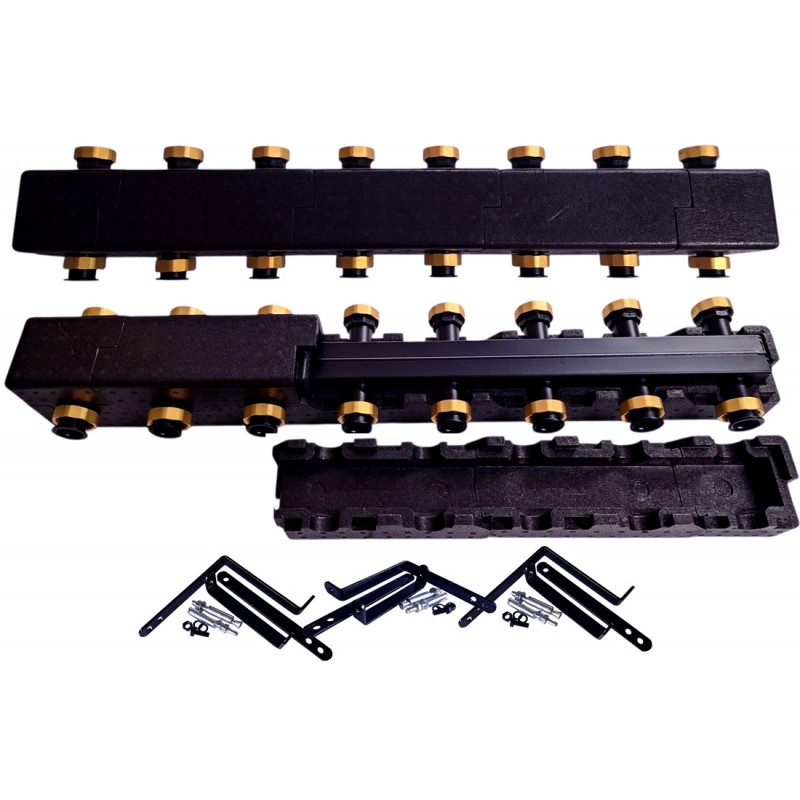

A large pump group manifold that allows for connecting up to four pump groups on one side, and a maximum of 7 pump groups in total. The manifold has 8 circuits, 7 for pumps + 1 circuit for supply and return. This places it among rather large manifolds for large heating systems based on pump groups. It can also handle a larger number of heat sources.

The 4-8 pump group manifold has a center-to-center distance of 125 mm (a standard usually compatible with pump groups from brands other than Nordic Tec as well).

  • Ability to connect up to 7 pump groups to the manifold.
  • ☑️ If not all outlets are used, the set includes appropriate blanking plugs. These allow you to close unused outlets, and the collector can be easily adapted to the specifications of a smaller heating system as well - with the possibility of expansion at a later date.
  • The collector is equipped with 1 1/2" GZ connections, enabling easy connection to standard pump groups.
  • The manifold is covered with a thick layer of insulating EPP foam, in a classic black color.
  • Total length of the unit including insulation - 100cm

☑️ In the Nordic Tec catalog you will also find smaller manifolds for pump groups and the pump groups themselves. You can assemble a full set.
✅ Fast delivery in almost every European country

Reference: Manifold-4-8
Condition
On stock
€259.99
VAT included



Manifold for a Larger Number of Pump Groups – Up to 7

In larger-scale heating installations, it is sometimes necessary to use a manifold adapted to handle a greater number of pump groups. Standard models typically offer 2–4 sections, but for multi-family buildings, service facilities, or large single-family homes, a manifold for 6 or even 7 groups will be a better solution. Such a device allows for the simultaneous supply of multiple independent heating circuits – for example, several underfloor heating zones, wall radiators, and a domestic hot water storage tank. This keeps the installation clear, easy to service, and simultaneously enables precise temperature control in each zone.

The top side of the manifold has space for 4 pump groups - while the bottom side offers an additional 3 pump groups + supply connection. This is the largest manifold in the open Nordic Tec catalog.

Manifold-4-8
