Heating Circuits Manifold for Pump Groups | Nordic Tec 3-6 | 6 way

Hydraulic Boiler Manifold - Distributor for Pump Assemblies | Nordic Tec 3-6

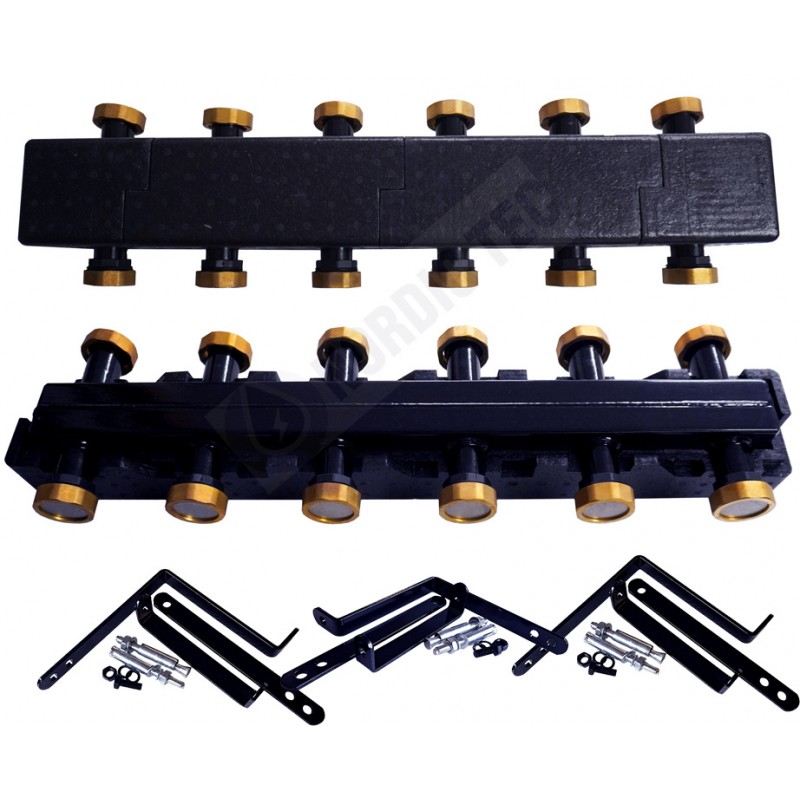

A boiler manifold-distributor for pump assemblies that allows the connection of 3 pump groups on one side, with a maximum of 5 pump groups in total. It has 6 circuits in total. Ideal for connecting a large number of pump groups, as well as multiple heat sources, such as combining a gas boiler and a heat pump within a single heating system.

The 3-6 manifold for pump groups features a traditional center-to-center distance of 125 mm, which is considered standard (making it compatible with pump groups from other brands as well). The 3-6 distributor is a logical addition to the range of pump groups in our online store.

  • Manifold with space for 3-5 pump groups or pump assemblies on one side
  • Option to connect 1, 2, or even 3 heat sources to the boiler manifold.
  • ☑️ If not all outlets are used, we provide appropriate blanking plugs in the set. These allow quick sealing of unused outlets, and the manifold can be easily adapted to the specifications of a given heating system.
  • The boiler manifold is equipped with 1 1/2" male threaded connections, enabling easy attachment to standard pump groups.
  • The heat distributor itself is covered with a thick layer of insulating EPP foam, ensuring effective heat loss prevention.

☑️ In our catalog, you will also find other boiler manifolds for pump assemblies as well as pump groups themselves. You can assemble a complete set with a manifold and the appropriate pump assemblies.
✅ Fast and efficient delivery to every country in Europe, including free shipping to 14 countries

Reference: Boiler-Manifold-3-6
Condition
On stock
€205.00
VAT included



Boiler Manifold for pump assemblies – for up to 5 groups

The boiler manifold for pump assemblies is a hydraulic device serving several functions: it provides separation between the primary circuit (e.g., boiler - or another heat source) and the heating circuit. This eliminates the need for hydraulic adjustment between the two circuits. Additionally, the boiler manifold allows independent operation of both circuits with their own flow rates.
This model is designed to connect up to 5 pump assemlies but can also operate with fewer pump groups (the set includes caps to close any unused connections).

  • ✅ Recommended maximum flow – < 5.0 m³/h

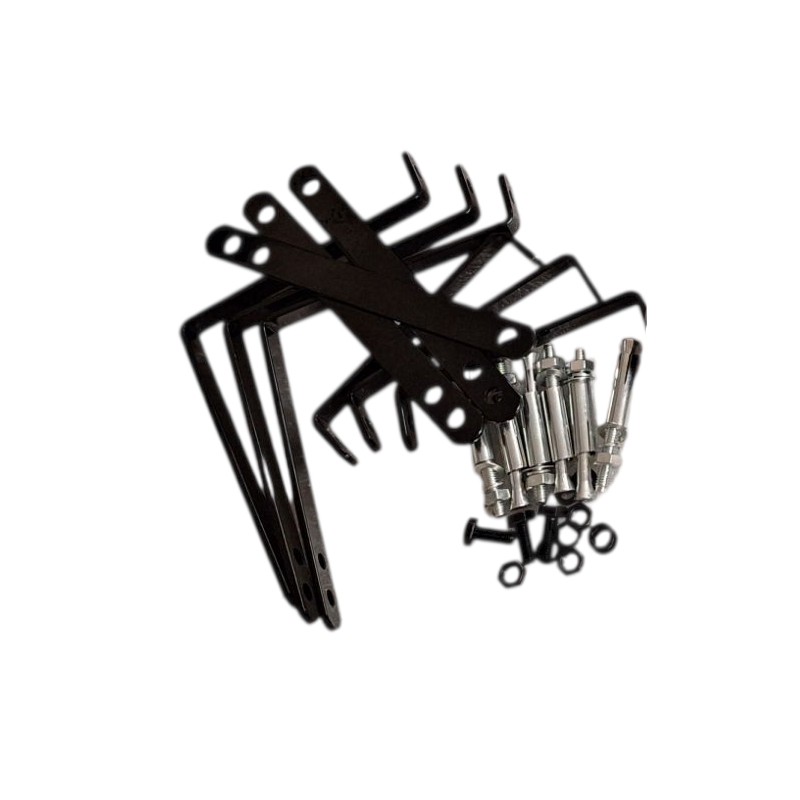

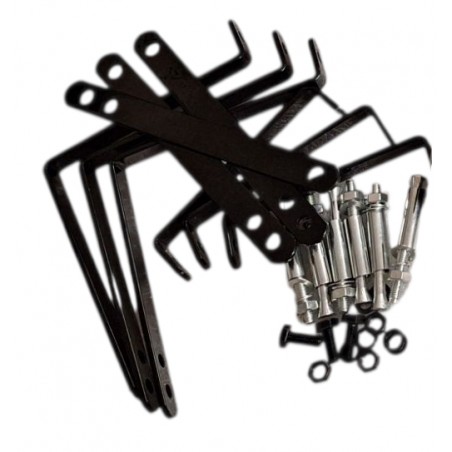

  • Wall mounting brackets included
  • Power up to 60 kW
  • Maximum operating pressure – < 8 bar

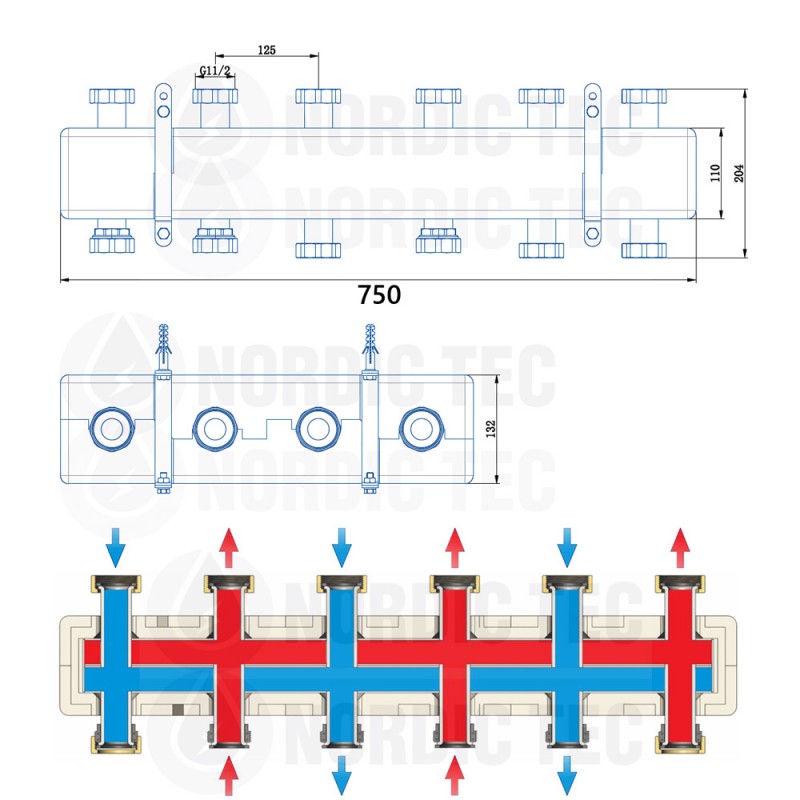

  • Distance between connections for pump groups – 12.5 cm

In our offer, you will also find larger boiler manifolds for a greater number of pump groups.
