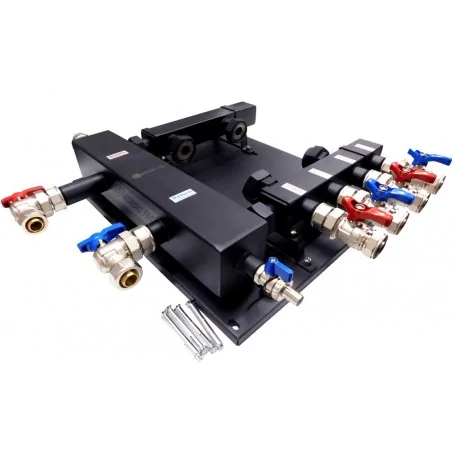

Hydraulic Separator Nordic Tec with 3 heating cirlces manifold

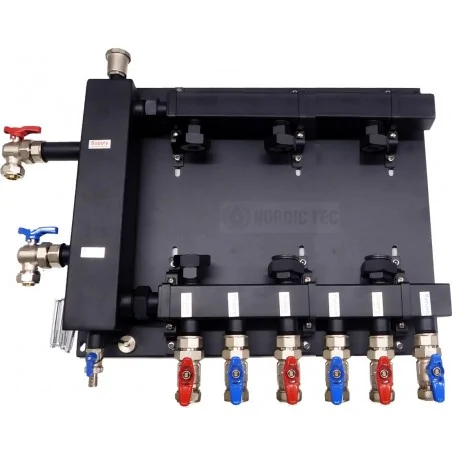

Low Loss Header with a manifold Nordic Tec

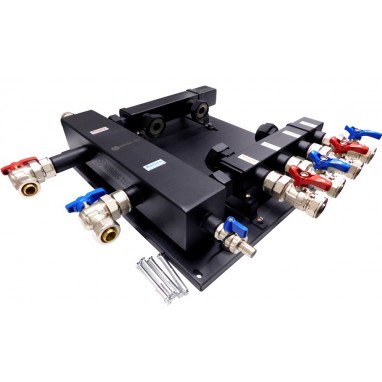

Hydraulic Separator Nordic Tec with 3 heating cirlces manifold
Low Loss Header with a manifold Nordic Tec

Low Loss Header with 3 heating cirlces manifold

Nordic Tec Low Loss Header with flow divider set for central heating - for 3 heating circuits on a wall-mounting plate

The steel hydraulic seprator - low loss header combined with the flow distibutor (hydraulic manifold) gives better possibilities than a traditional separator. The steel distributors reinforce the separator function, making a neutral pressure zone larger and giving the opportunity to divide a central heating for 3 zones.

  • Board / plate dimension - 67x50 cm

☑️ In this version, the set comes with bare threaded connections in inches with the fitting included
✅ Delivery is possible in every european country. The shipment is free in the following destinations:
FR, IT, ES, DE, PL, SI, AT, DK, NL, BE, CZ, LV, EE, LT

Reference: SNT-BL-3
Condition
Out-of-Stock
€299.99
VAT included



Low Loss Header with 3 heating cirlces manifold - more information

  • Wall-mounting plate for quick installation, the set includes the wall-mounting pegs too.
  • Connections in a size of 1" - factory equipped with a nut and a 25mm PEX adapter
  • Low Loss Header - Hydraulic Separator power - up to 70 kW with a temperature difference of 15K, whereas the entire set with manifolds can handle 95 kW
  • Drain valve and automatic air vent in the set
  • Accessories connections (air vent and drain valve) - 1/2" - internal threads.
  • Max. allowable flow rate o- 6 m3/h.
  • Work temperature - max. <100°C.
  • Can work with glycol/water mix too - recommended concentration of up to 50%.
  • Separator and distributors beams made of stainless steel 304. Painted black with powder coating.
  • Designed for use with 3 standard pumps, i.e. circulation pumps with a mounting width of 180mm
  • The set of low loss header does not include circulation pumps.
