Pool Heat Exchanger NORDIC B1200 352kW (1200kBTU/h)

Shell and Tube Heat Exchanger B1200 for Swimming Pool

Shell and tube heat exchanger B1200 for swimming pool water heating - 350 kW

Rated power: 352 kW (1200 kBTU/h)

When using glycol as the heating medium, the efficiency of the swimming pool heat exchanger decreases to 84 - 92% (depending on the glycol concentration).

• The 352 kW power of the heat exchanger is achieved using a water-to-water medium, with a temperature difference between the two media of 60 degrees C (100% efficiency).

  Efficiency - in case of temperature difference between the media:
  - at 50 °C = 85 % | 297 kW
  - at 40 °C = 70 % | 245 kW
  - at 30 °C = 55 % | 190 kW
  - at 20 °C = 35 % | 120 kW



Material: Heat exchanger made of STAINLESS STEEL (100%) - designed to work with chlorinated water, even highly chlorinated.

Intended use (fluids) - the shell and tube heat exchanger for swimming pools B1200 ✅ is designed for fresh water, use with water containing salt additives or seawater is not recommended. If you have a seawater pool or add salt to the water, you should use a titanium shell and tube heat exchanger.

Rated flows:

• Heat transfer fluid / heat source side: 114 l/min
• Heated fluid / swimming pool water: 847 l/min

Operating pressure / Test pressure: up to 6 bar / up to 10 bar

Connections for fluids / water:

• 2x 2 inches - heating fluid connections: K1 and K4
• 2x 2.5 inches - heated fluid connections: K3 and K2

Swimming pool volume (recommended):

• Up to 400 m³ nominally, maintaining a temperature difference between the media of about 60 °C and adequate flow levels.
• In case of insufficient heating parameters, the suggested volume may not be adequately supported by the heat exchanger. In practice, with low-temperature heat sources, the B1200 heat exchanger usually handles pools in the range of 150-250 m³ (proper selection of the swimming pool heat exchanger requires appropriate qualifications).

Dimensions:

• Length with water connections: 890 mm
• Diameter: 133 mm

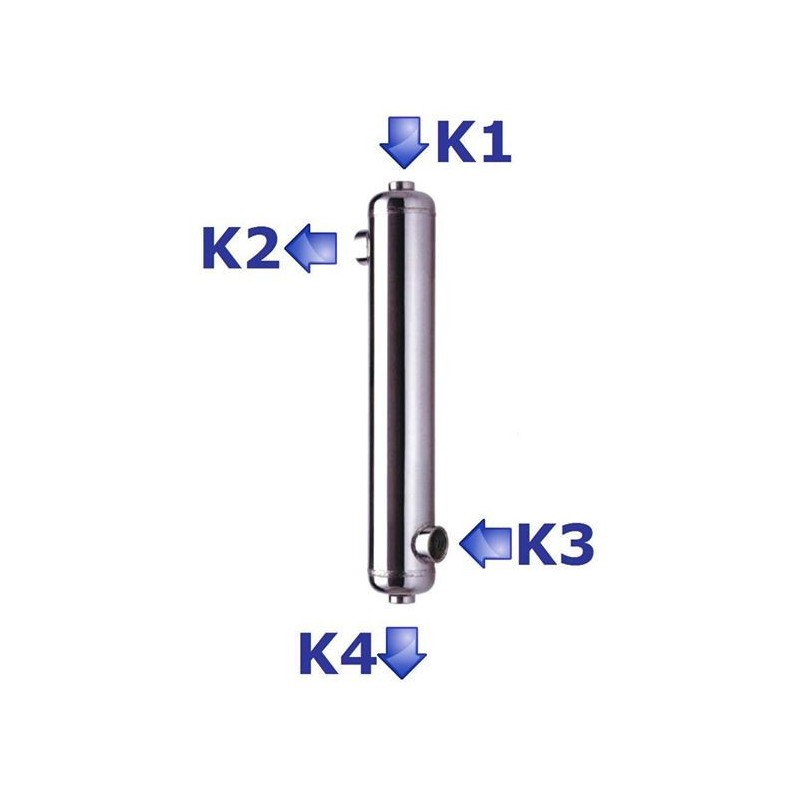

Connection method for swimming pool heat exchangers B1200 352 kW

• K1 - heating fluid inlet
• K2 - heated fluid outlet
• K3 - fluid to be heated inlet
• K4 - heating fluid outlet

Swimming pool heat exchangers are connected in a counter-flow arrangement, as shown in the image above, to ensure maximum heat exchange efficiency.
