Pool Heat Exchanger NORDIC B2400 704kW (2400kBTU/h)

Large Heat Exchanger for Swimming Pool Heating Nordic Tec B2400

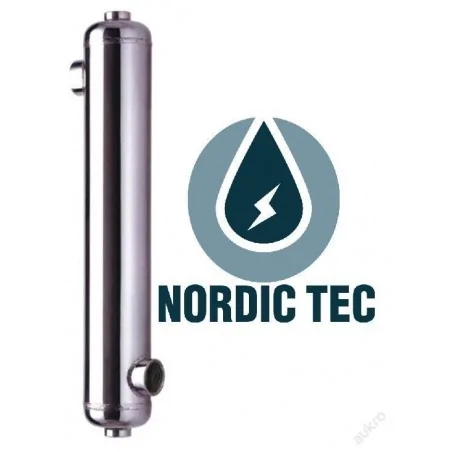

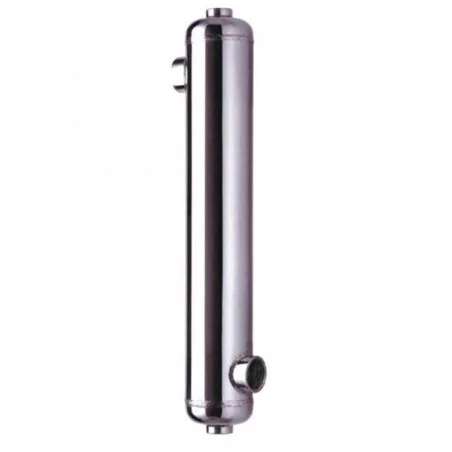

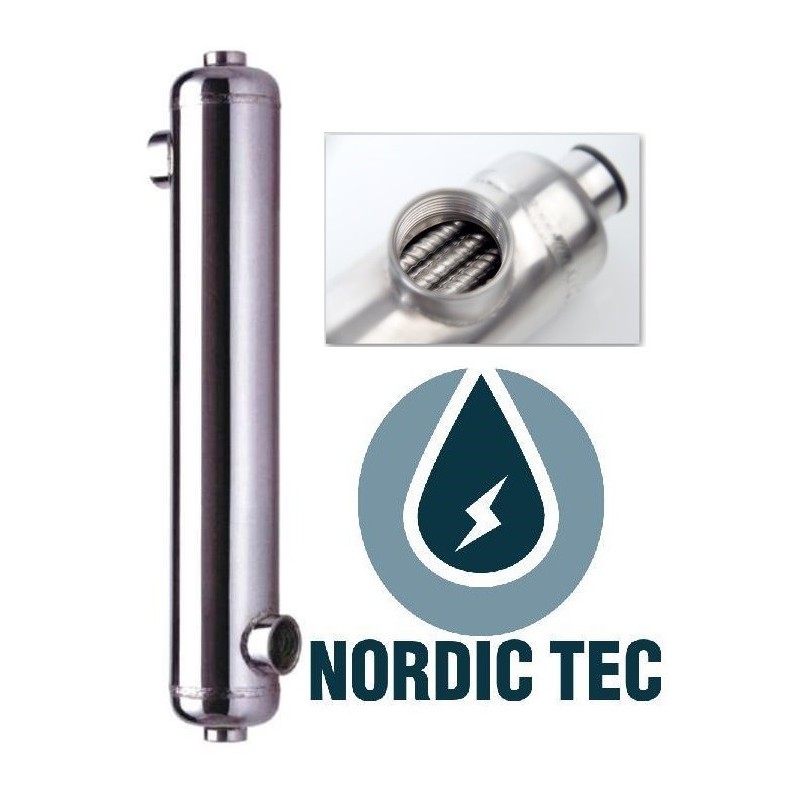

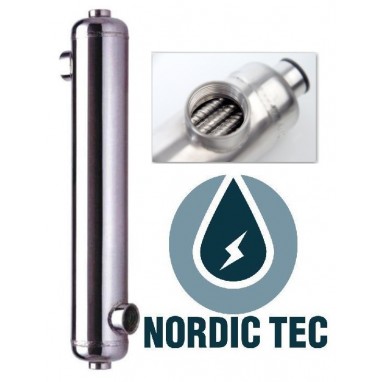

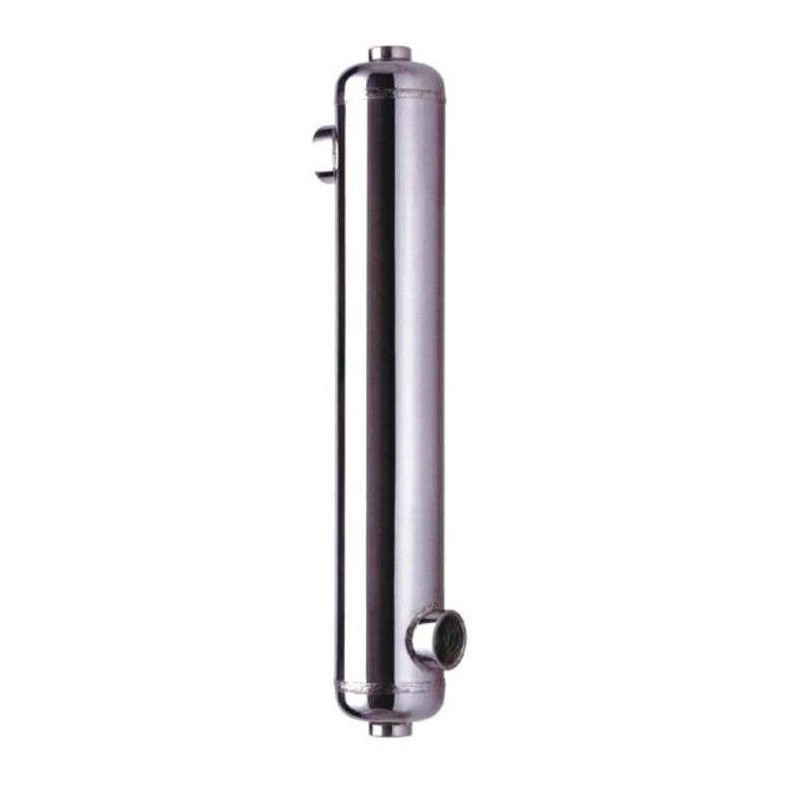

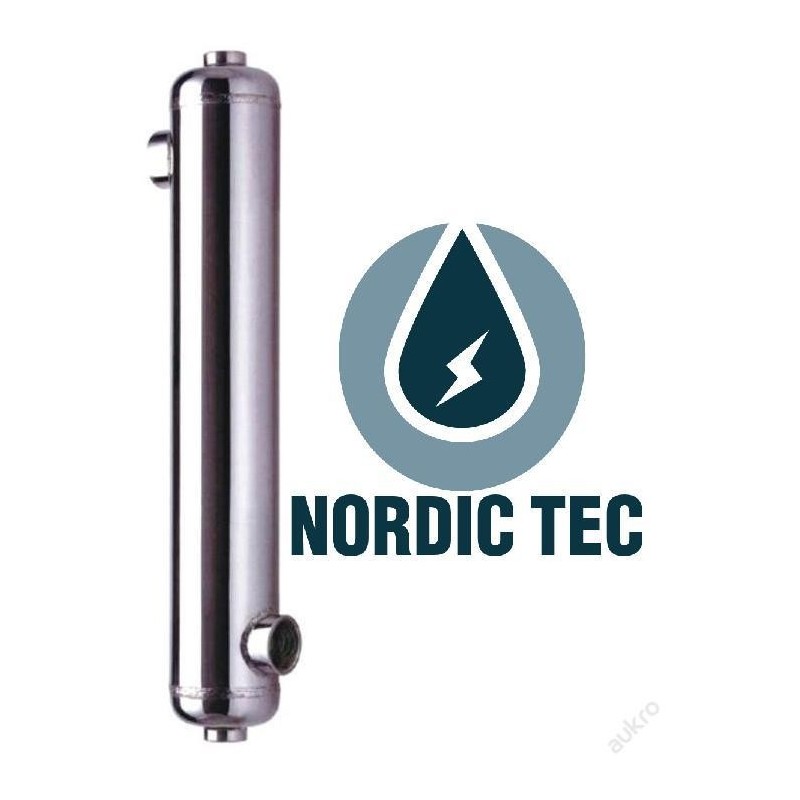

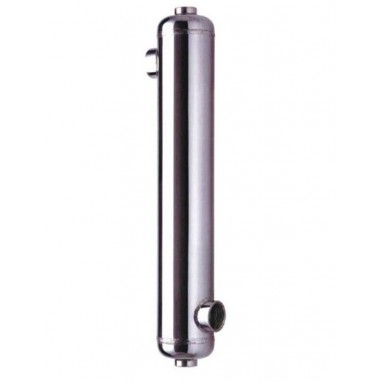

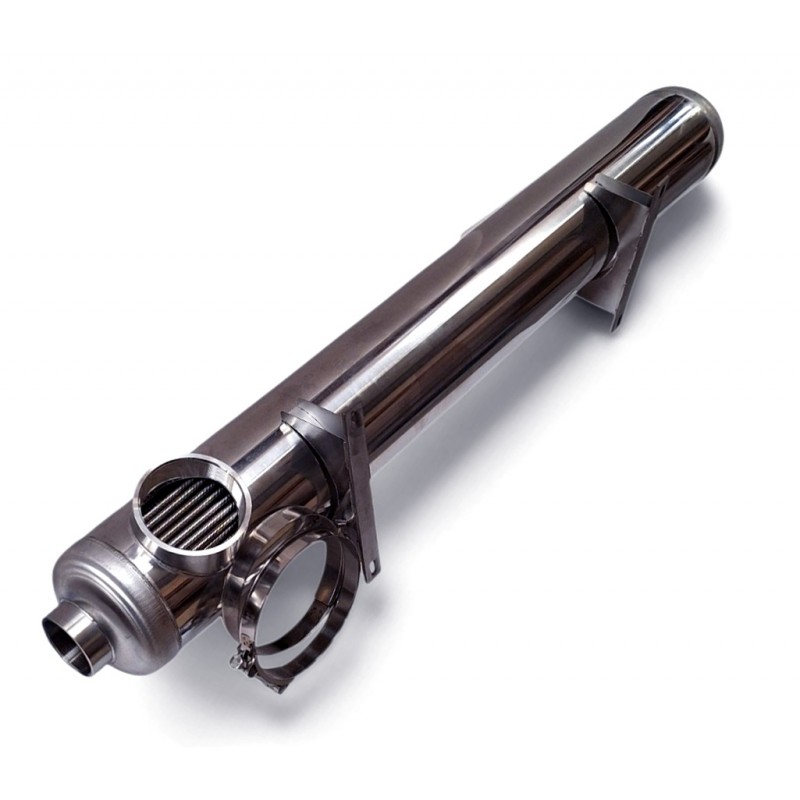

Shell and Tube Heat Exchanger B2400 for Swimming Pool Water Heating - 704 kW

Rated Power: 704 kW (2400 kBTU/h)

When using glycol as the heat transfer fluid, the efficiency of the swimming pool heat exchanger is reduced to 84-92%, depending on the glycol concentration.

• The rated power of 704 kW of the heat exchanger is achieved with a water-to-water system, maintaining a temperature difference of 60.0 °C between the two fluids, thus ensuring 100% efficiency.

  Efficiency - in case of temperature difference between the media:
  - at 50 °C = 85 % | 595 kW
  - at 40 °C = 70 % | 490 kW
  - at 30 °C = 55 % | 385 kW
  - at 20 °C = 35 % | 245 kW

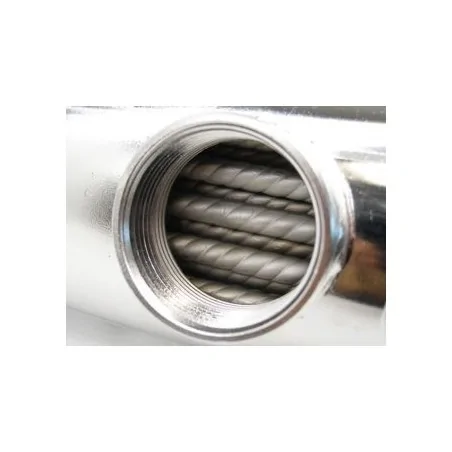

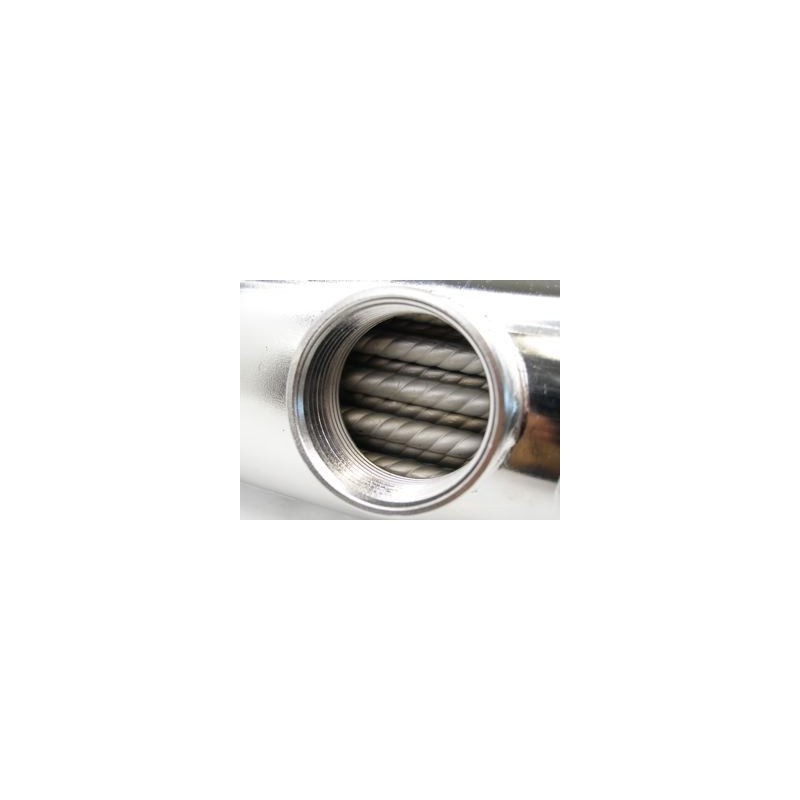

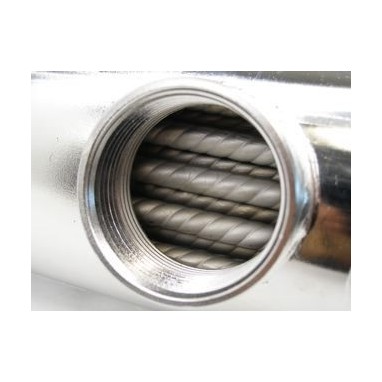

Material: Heat Exchanger made of STAINLESS STEEL (100%) - designed to operate with chlorinated water, even highly chlorinated.

Intended Use (Fluids) - the shell and tube heat exchanger for swimming pools B2400 ✅ is designed for fresh water, use with water containing salt additives or seawater is not recommended.

Rated Flows:

• Heat Transfer Fluid / Heat Source Side: 267 l/min
• Heated Fluid / Swimming Pool Water: 1690 l/min

Operating Pressure / Test Pressure: up to 6 bar / up to 10 bar

Fluid / Water Connections:

• 2x 2 inches
• 2x 4 inches

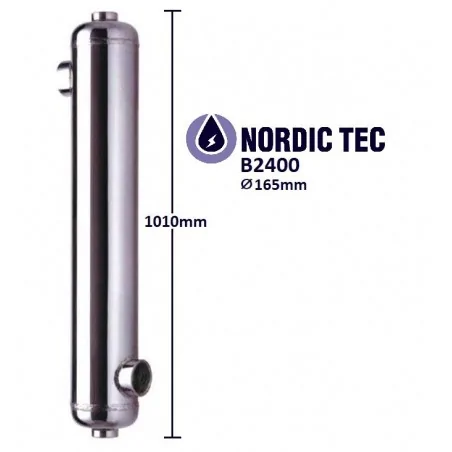

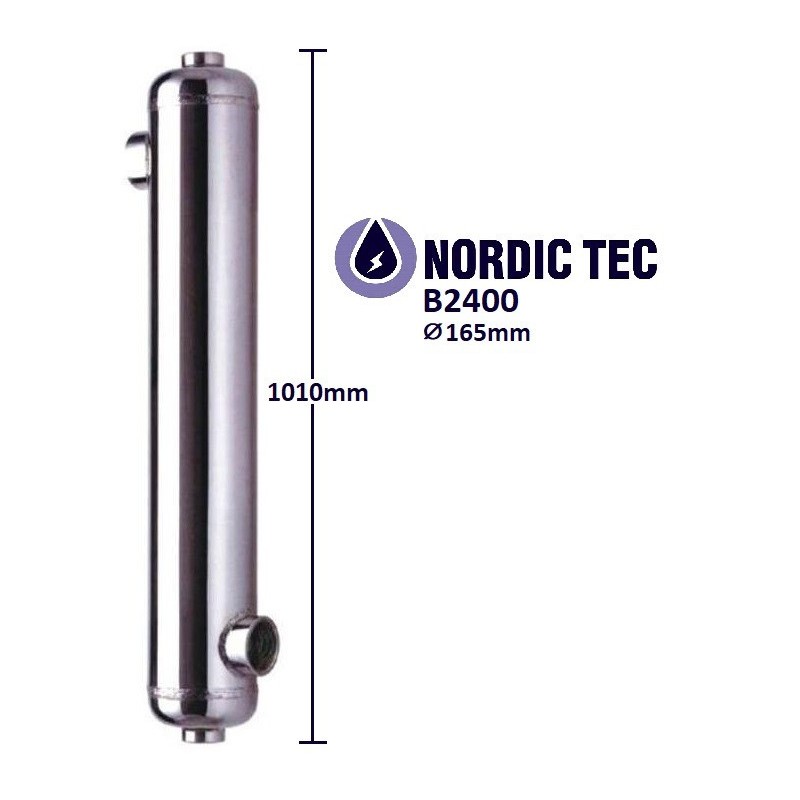

Dimensions:

• Length with Water Connections: 1010 mm
• Diameter: 165 mm

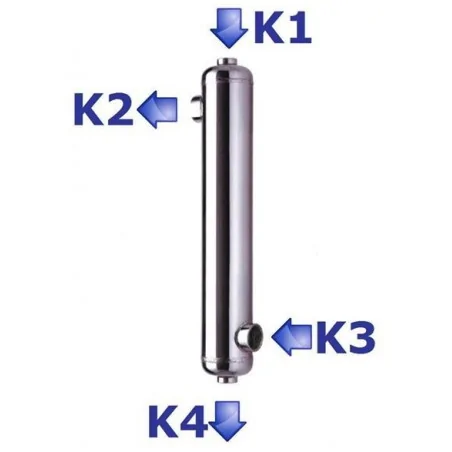

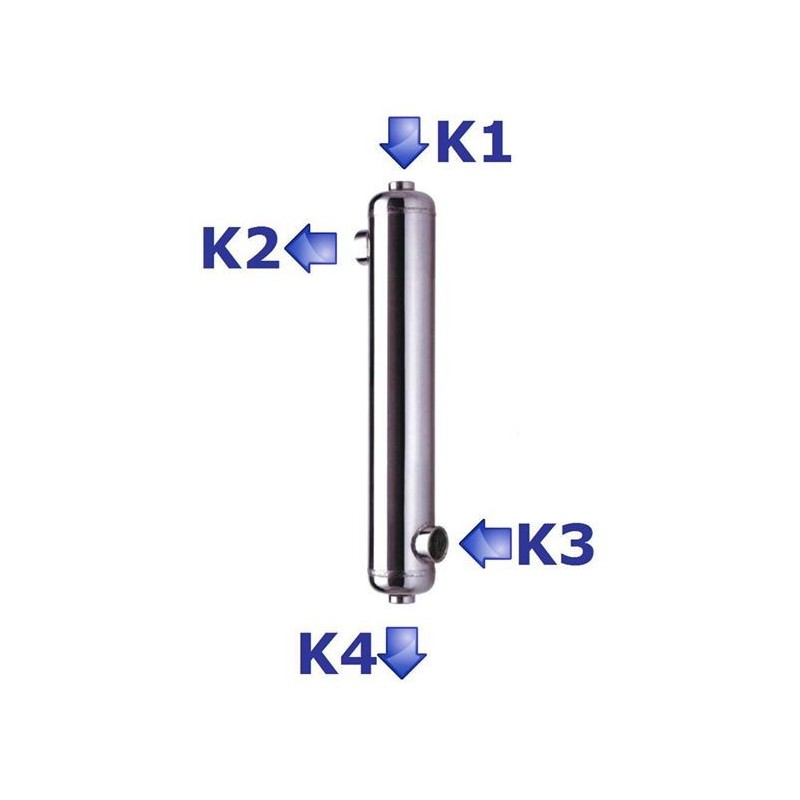

Connection Method for Swimming Pool Heat Exchangers B2400 704 kW

• K1 - Heating Fluid Inlet
• K2 - Heated Fluid Outlet
• K3 - Fluid to be Heated Inlet
• K4 - Heating Fluid Outlet

Swimming pool heat exchangers are installed in a counter-flow configuration, as illustrated in the image above, to optimize heat transfer efficiency.
