Pool Heat Exchanger NORDIC B1200 352kW (1200kBTU/h)

Pool & Spa Heat Exchanger B1200 Nordic Tec B-Series

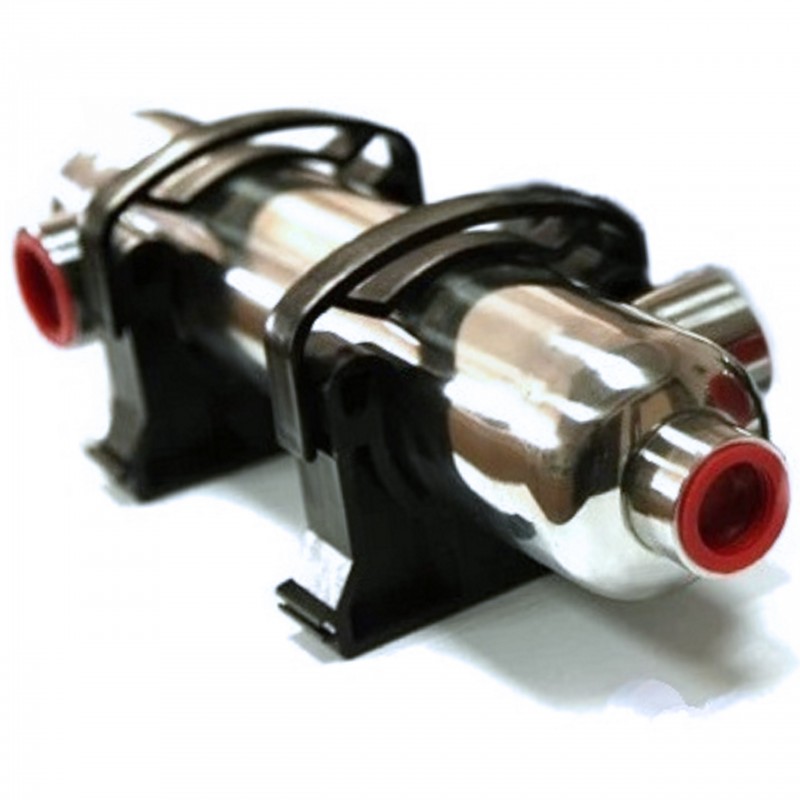

with wall-mounting brackets

Nominal Capacity: 352kW
based on 60 °C difference between heating and heated medium (if water/water),
with counter-courent work

Material: Stainless steel 316L

Heat Exchange surface: 2.05 m²

Connections: 2x 2 1/2" & 2x 2"

Important Note: If one of media is glicol, the capacity will be only 85-90% of nominal one.

Reference: B1200
Condition New


Swimming Pool Heat Exchanger B1200

Technical Details:
Nominal value 352kW (power/capacity) is based on 60 °C difference
between heating water and pool water (calculations are different for other media).
If there is other temperature difference, the capacity is following:
60 °C = 100%
50 °C = 85%
40 °C = 70%
30 °C = 55%
The nominal flowrates values are also required to achieve the declared capacity.

Nominal flowrates: 114/847 l/min (one of opportunities)

Permitted media - all except so called agressive media, including ammonia and salt/sea water
If you want to use salt water you should use an exchanger made of titanium

Maximal temperature - up to 208°C (406 °F)

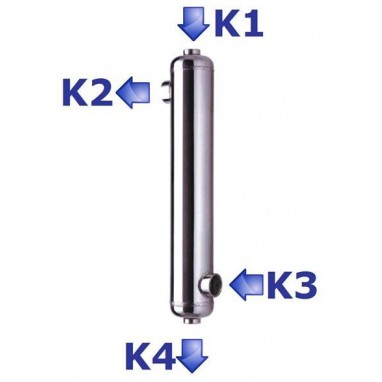

The suggested counter-courent connecting:

K1 - heating water - IN
K2 - heated water - OUT
K3 - heated water - IN
K4 - heating water - OUT
