Nominal Capacity: 105kW
based on 60 °C difference between heating and heated medium (water to water),
with counter-courent work
Material: Stainless steel 316L
Heat Exchange surface: 0.85 m²
Connections: 2x 2" & 2x 1 1/2"
Important Note: If one of media is glicol, the capacity will be only 85-90% of nominal one.
Technical Details:
Nominal value 105kW (power/capacity) is based on 60 °C difference
between heating water and pool water (calculations are different for other media).
If there is other temperature difference, the capacity is following:
60 °C = 100%
50 °C = 85%
40 °C = 70%
30 °C = 55%
The nominal flowrates values are also required to achieve the declared capacity.
Nominal flowrates: 48/358 l/min (one of opportunities)
Permitted media - all except so called agressive media, including ammonia and salt/sea water
If you want to use salt water you should use an exchanger made of titanium
Maximal temperature - up to 208°C (406 °F)

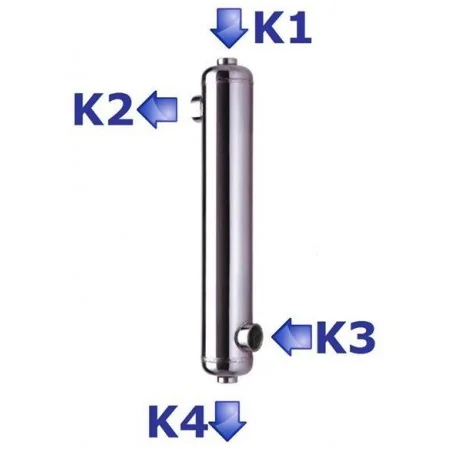

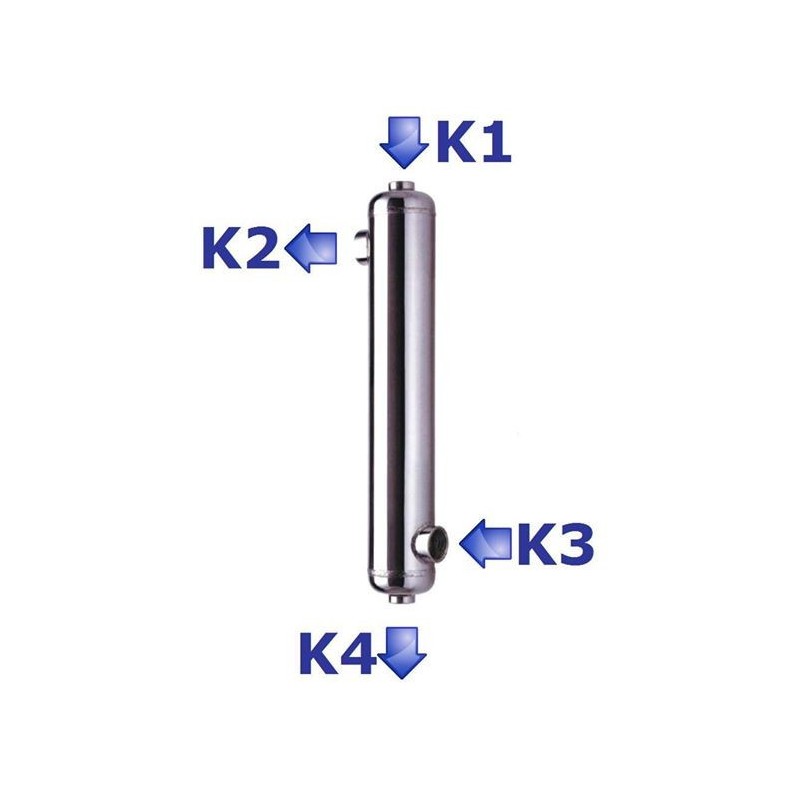

The suggested counter-courent connecting:
K1 - heating water - IN
K2 - heated water - OUT
K3 - heated water - IN
K4 - heating water - OUT
