In today’s article, we will take a closer look at the use of magnetic filters, also known as separators, in central heating systems with a gas boiler. Many professionals recommend installing a magnetic filter in systems with a gas boiler, and there are also boiler manufacturers who strictly require it. What is it like in practice – is it worth installing a magnetic filter for a gas boiler?
A magnetic filter for a gas boiler is a component of a heating system designed to capture ferromagnetic impurities – that is, metallic particles detached from system components, such as rust particles – circulating in the central heating loop. Most commonly, these are magnetite particles formed as a result of corrosion of steel elements in the installation, such as radiators, pipes, or the heat exchanger. Naturally, these particles are undesirable. A strong magnet placed inside the filter attracts metal debris, preventing it from further circulating in the system – and this is the simple yet effective working principle of magnetic filters. For this reason, they are also referred to as dirt separators.
Modern gas boilers, especially condensing boilers, feature heat exchangers with very narrow flow channels. Even a small amount of contaminants can lead to reduced efficiency, poorer heat transfer, and in extreme cases, device failure. A magnetic filter for a gas boiler therefore protects the condensing boiler from damage, reduces the risk of system blockages, and extends the lifespan of the entire heating system.
A clogged gas boiler heat exchanger causes the boiler to operate inefficiently, and weakened heat transfer results in higher gas consumption. Of course, heat exchanger cleaning is necessary from time to time – but prevention is the most important factor.
Installing a magnetic filter in a system with a gas boiler has a direct impact on heating efficiency – specifically on the rate of aging and gradual performance decline over the years. A clean heating circuit ensures stable water flow, even radiator heating, and lower energy consumption – meaning lower gas bills. In practice, a magnetic filter for a gas boiler helps maintain system operating parameters close to factory levels, even after many years of use.
Considering the cost of such magnetic dirt separators – from a financial perspective, this is a fairly obvious equation.

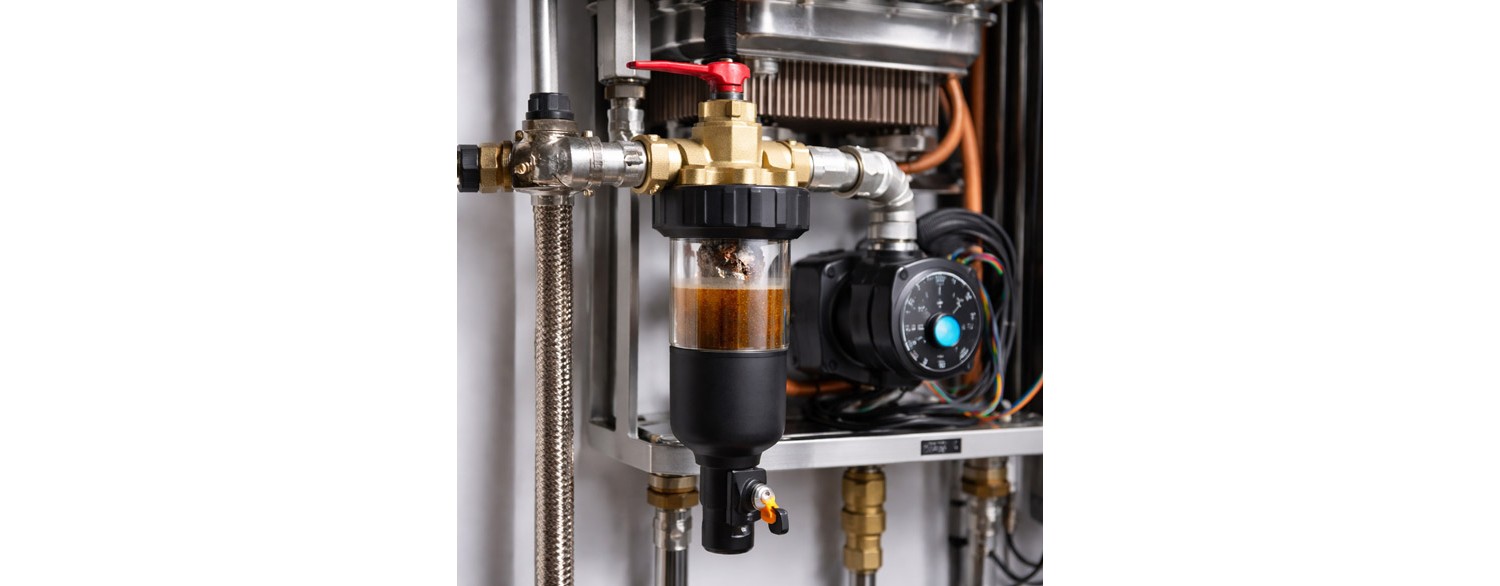

A magnetic filter for a gas boiler is most often installed on the return line of the system, directly before the boiler – this position offers the best protection. Such placement allows contaminants to be captured before they reach the internal boiler heat exchanger. Installation is relatively simple, but it should be carried out in accordance with the manufacturer’s recommendations and with attention to the correct flow direction. It is also important to ensure easy access to the filter for periodic cleaning.
More about the installation process of separators in central heating systems:
Definitely not only there. It depends on how your boiler room is designed. If there are several other important devices just before the boiler, they can also be protected by installing a dirt separator slightly earlier in the system. These devices may include, for example, inline hard water filters, circulation pumps, hydraulic separators, or external heat exchangers (used to separate systems).
The same can be said about other sensitive heat sources. Dirt separators are also recommended for heat pumps.
For a magnetic filter for a gas boiler to perform its function properly, regular maintenance is necessary, although the device itself operates maintenance-free most of the time. Cleaning usually involves removing the magnetic insert (located at the top of the filter) and eliminating accumulated sludge. The frequency of this procedure depends on the condition of the system – in older systems, the first cleaning may be required after just a few weeks of operation. Regular filter maintenance is a simple way to avoid costly boiler repairs.
✅ It is important that your dirt separator is also equipped with shut-off valves, which allow servicing without draining water from the entire system. If they are not included in the set, it is worth purchasing them separately and installing the filter only once you have them.
Analyzing the relatively low cost of purchasing a magnetic filter and the potential savings, it can be concluded that this is a cost-effective solution. The price of a good-quality separator is low compared to the cost of repairing or replacing a heat exchanger in a gas boiler. Additionally, a magnetic filter for a gas boiler contributes to stable system operation, lower energy consumption, and greater user comfort. The presence of a magnetic filter does not only affect the lifespan of the gas boiler – removing contaminants from the system benefits virtually all of its components.
A magnetic filter for a gas boiler is a simple yet highly effective element for protecting a heating system. Its use improves boiler reliability, protects critical components from contamination, and supports the efficient operation of the heating system. In practice, it is a solution worth considering both in new installations and when modernizing older heating systems.
