Pool Heat Exchanger NORDIC B3600 1060 kW (3600kBTU/h)

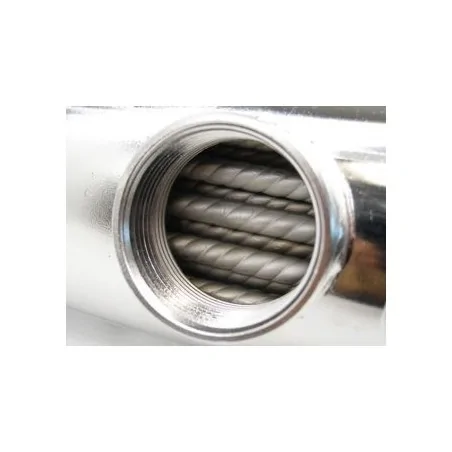

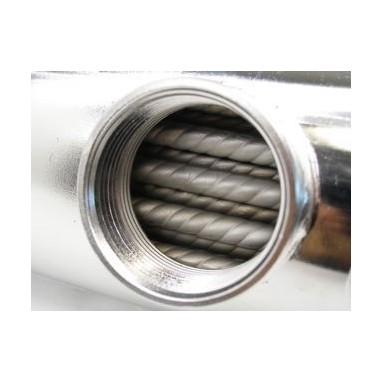

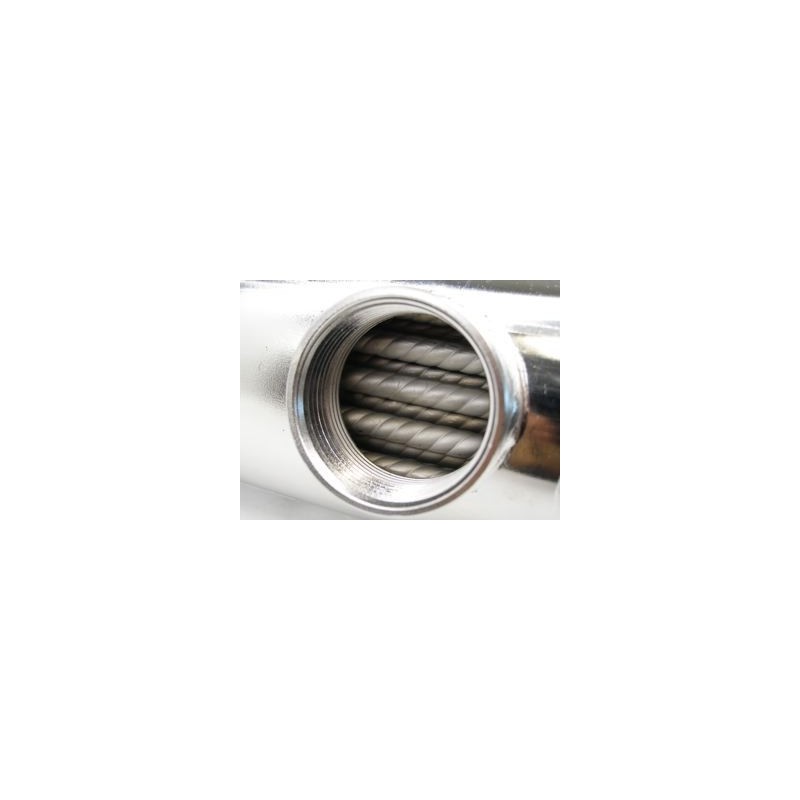

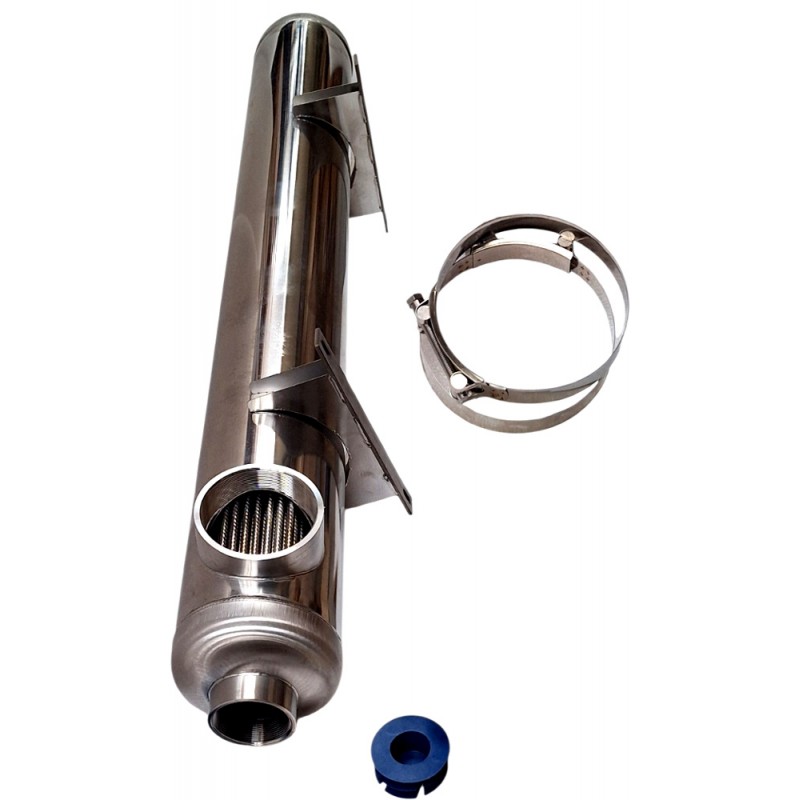

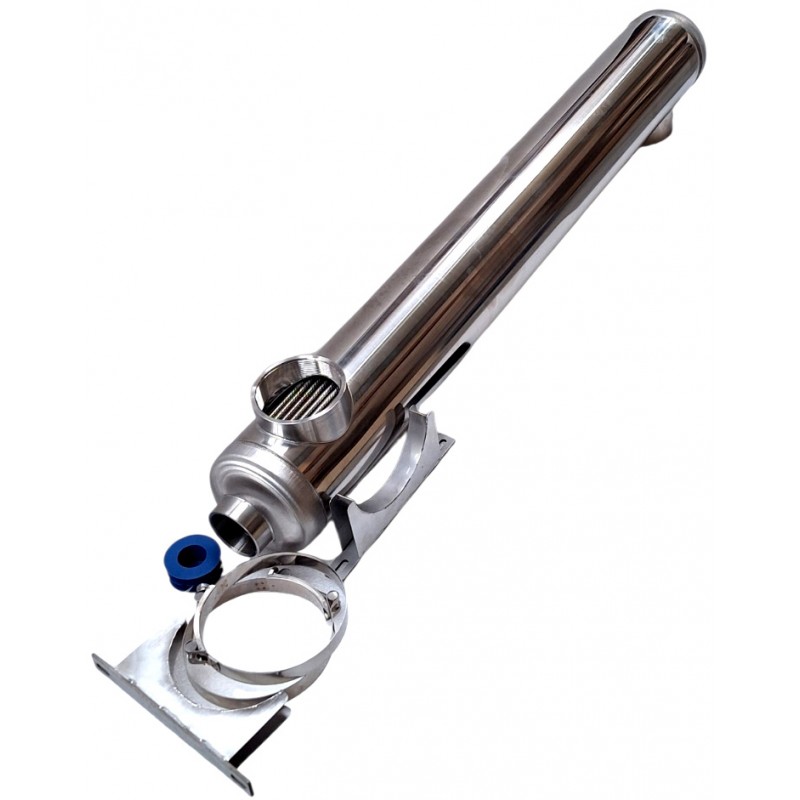

More details about the B3600 tube heat exchanger:

• Rated power – 1060 kW (3600 kBTU/h) – The 1060 kW output is achieved in water-to-water applications with a 60°C temperature difference between the media (100% efficiency).
• Efficiency depending on temperature difference between media:
  60°C = 100%
  50°C = 85%
  40°C = 70%
  30°C = 55%

When using glycol as the heating medium, efficiency drops to 85–92% (depending on glycol concentration).

• Heat exchange surface – 6.42 m² (surface area of tubes facilitating heat transfer)
• Exchanger material: Stainless steel
• Working pressure – < 6 bar

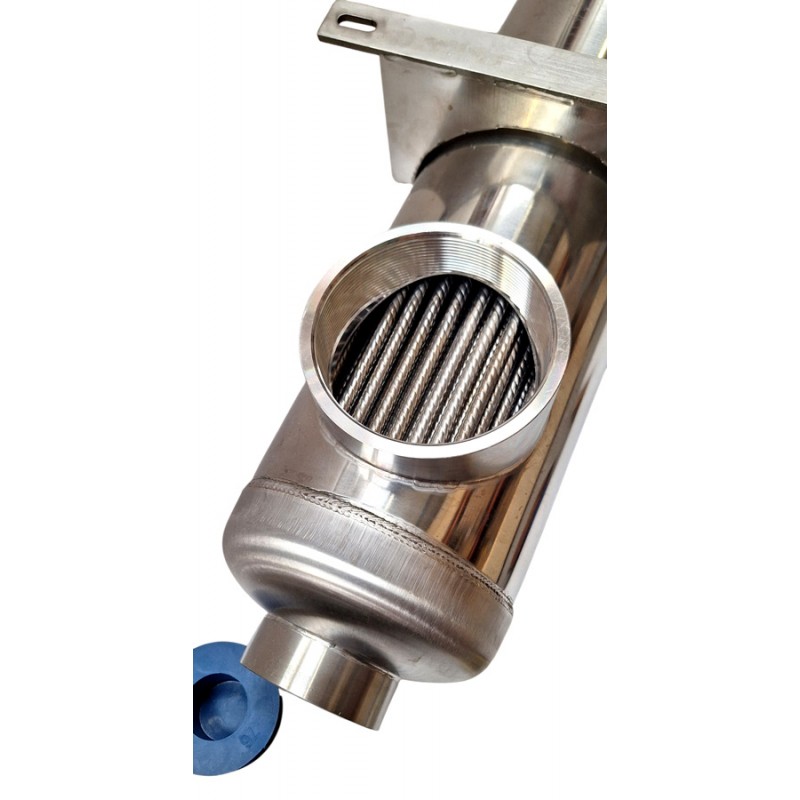

• Connections –
  2x 4" GW – Heating medium connections – K1 and K4
  2x 2" GW – Heated fluid connections – K3 and K2
• Recommended pool volume – up to 1100 m³ / 750 m³ (Δ60°C / Δ40°C)
  (Nominal values, assuming a media temperature difference of ~60°C or 40°C).
  With a smaller temperature difference or insufficient flow, the potential pool volume decreases.
• Maximum operating temperature – up to 208°C
• High flow rate with low pressure drop
• Designed with self-cleaning capability
• Dimensions:

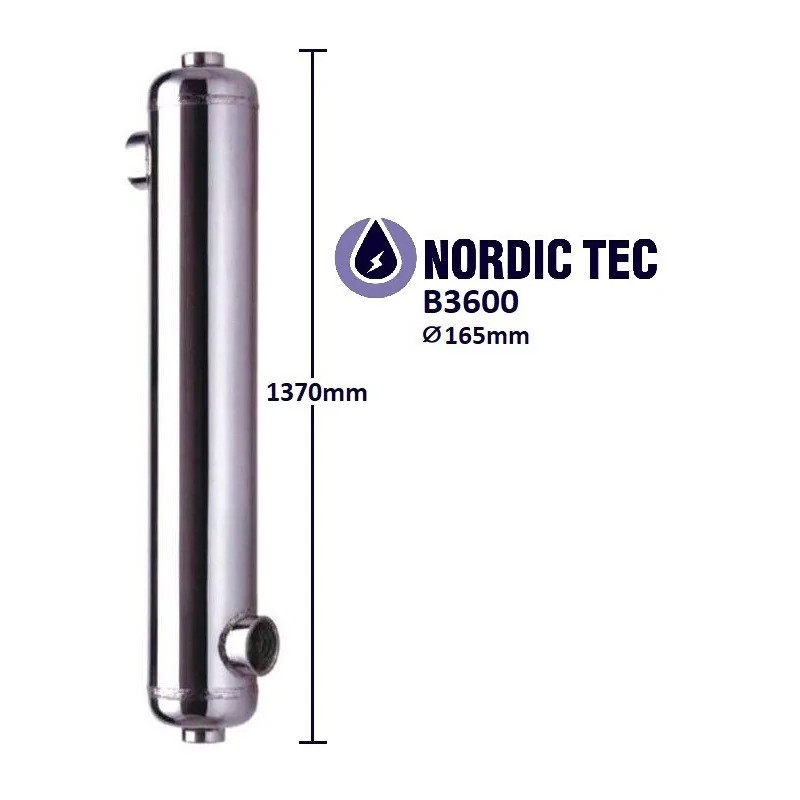

  Length with fittings – 1370 mm
  Diameter – 165 mm

Connection diagram:

• K1 – Heating medium inlet
• K2 – Heated fluid outlet
• K3 – Heated fluid inlet
• K4 – Heating medium outlet

Exchangers are connected in counterflow for maximum efficiency.
