Countercurrent principle - basic information

The Counter-Flow Principle, sometimes also known as the countercurrent principle, is one of the most important solutions used in heating, refrigeration, and many other fields of engineering. While it sounds quite technical, its operation is based on a very simple, yet brilliant idea: two media – for example, water, air, or another fluid – flow past each other in opposite directions, which allows for much more efficient heat or mass transfer.

Who Invented the Counter-Flow Principle - and What Do Fish Gills Have to Do With It

It's very interesting, but this brilliant trick has no inventor – unless we consider nature to be the inventor. The principle is commonly used in hydraulics, but it was first observed in the biological world, which is a fascinating fact.

We probably know how fish gills work, but as a reminder, they are part of the respiratory system of fish. Water flowing through them releases oxygen to the tissues that make up the gills. They are highly vascularized - blood flowing through the gills absorbs oxygen and delivers it to the rest of the fish's body. And it was here that this simple principle was observed - nature designed it so that, for some reason, blood flows through the gills in the opposite direction to the flow of the water releasing oxygen. Why? The reason is obvious - because this way the blood is able to acquire more oxygen, meaning the oxygen transfer is more efficient. No one does it better than nature, we just had to use this discovery in technology.

If the above system were different - meaning both fluids flowed in the same direction - and thus the counter-flow principle was not maintained, there would be no talk of such efficient property exchange between the two circuits.

Counter-Flow Principle - The Basics First

To understand the counter-flow principle, it's helpful to compare it with parallel flow / co-current flow. For example, in a parallel flow heat exchanger, the hot and cold media move in the same direction. At the start, the temperature difference between them is large, but it quickly decreases, making the heat transfer less and less efficient.

In a counter-flow system, both media flow in opposite directions. Thanks to this, the temperature difference between them remains high along the entire length of the heat exchanger - and the greater the temperature difference, the easier the heat transfer occurs, according to the laws of physics. As a result, heat can be transferred much more effectively, and the final temperature of the cold medium can be close to the initial temperature of the hot medium. Exactly like in fish gills, only there the exchanged "currency" is oxygen, whereas in heating technology it's heat energy, simply put: temperature.

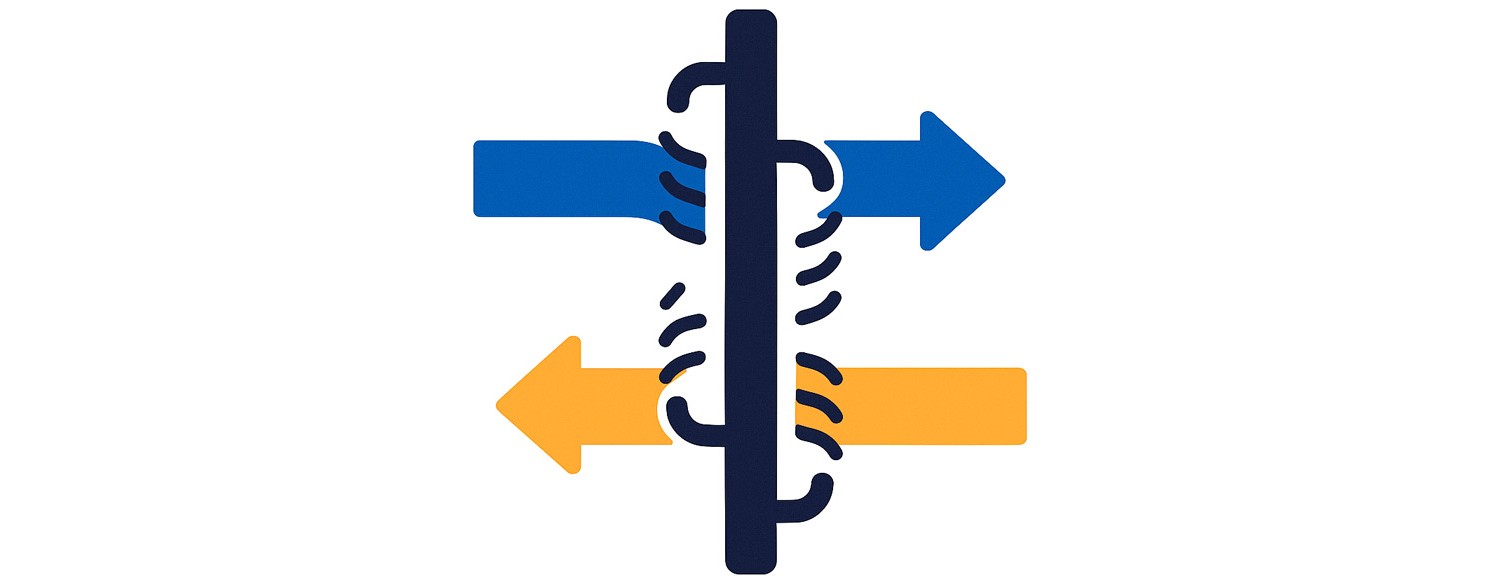

✅ In a nutshell: Counter-flow means that 2 fluids flow in opposite directions relative to each other.

Product available with different options

Heat Exchanger NORDIC Ba-12-12 3/4" 25kW

NT Ba-12-12

€46.50

View

On stock

Plate Heat Exchanger NORDIC Ba-23-50 3/4" 210kW

NT Ba-23-50

€158.50

Add to basket

On stock

Pool Heat Exchanger NORDIC Tec B55 16kW (55kBTU/h)

B55

€174.99

Add to basket

Where It Is Used

The counter-flow principle finds very wide application – both in industry and in everyday devices:

• Heat exchangers – this is one of the most common applications. In heating and cooling installations, the counter-flow system allows for maximum energy utilization, reducing heat loss and increasing device efficiency. The principle is used in various heat exchangers, both plate and shell-and-tube, regardless of the medium - whether they are typical liquid heat exchangers or, for example, freon gas heat exchangers.
• Recuperators – in ventilation systems, exhaust air heats the supply air flowing in opposite directions, enabling heat recovery from the used air. Besides, a recuperator for heat recovery also contains a form of air-to-air heat exchanger.
• Engine and machinery cooling systems – in automotive and industry, this principle helps to effectively dissipate heat.

Find out more about counter-flow heat exchangers on our blog:

• ✅ How does a counter-flow heat exchanger work?

Why is the Counter-Flow System So Efficient?

The biggest advantage of the counter-flow principle is maintaining a constant temperature difference between the flowing media. This means that heat or mass can be transferred with almost the same intensity the entire time. In practice, this translates to:

• higher efficiency of heat exchangers,
• lower energy consumption,
• more compact device dimensions - compared to co-current models.

On stock

POOL HEAT EXCHANGER NORDIC B155 45KW (155KBTU/H)

B155

€209.99

Add to basket

Product available with different options

Plate Heat Exchanger NORDIC Ba-12-20 3/4" 45kW

NT Ba-12-20 3/4

€62.50

View

On stock

Plate Heat Exchanger NORDIC Ba-115-180 2.5" 6700kW

NT-heat-exchanger-Ba-115-180

€2,955.00

View

Summary

The counter-flow principle is proof that simple solutions - essentially taken directly from nature - can be exceptionally effective. One might say it's so simple it's brilliant. Thanks to it, modern heating, cooling, and ventilation systems operate much more efficiently, saving energy and reducing operating costs. It's a solution that has inspired engineers for years – and no wonder, as it is based on a perfect harmony between physics and practical application. Nothing better in this regard will be created.
