How does a counter flow heat exchanger work?

14679 Views 17 Liked
Posted on: 2024-04-12


A counter current heat exchanger is a device that enables efficient recovery of thermal energy. It is widely used in various industries and in single-family homes (air conditioning, ventilation, domestic hot water heating). From the article below, you will learn how this type of exchanger is built, how it works, what it is used for, and what "countercurrent" actually means. Read on to learn more about countercurrent heat exchangers.

What is a counter flow heat exchanger?

A counter flow heat exchanger is a device used in many industries for efficient heat exchange between two different streams of fluids flowing in opposite directions. It operates on the principle of fluid flow through separating channels, enabling effective heat transfer between them. Counter flow heat exchangers are used in industries such as central heating - but also in the chemical industry, power generation, and industrial processes. Due to their construction, they allow for higher energy efficiency, reduced thermal losses, and increased production efficiency.

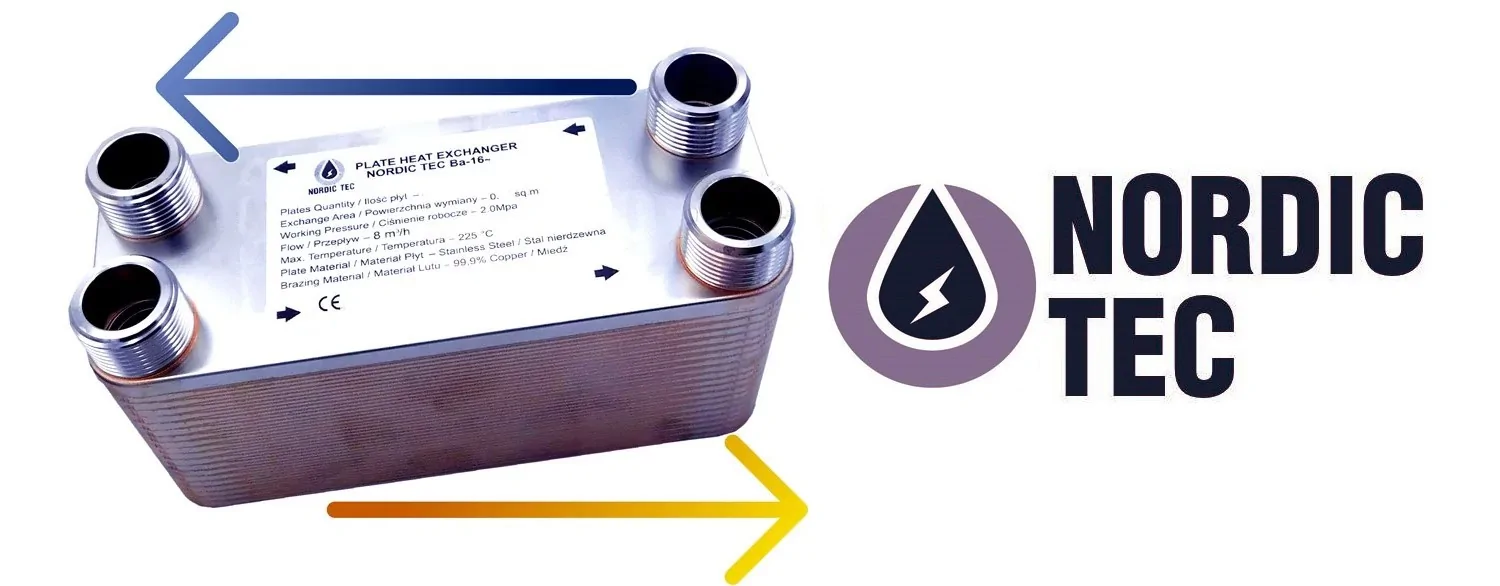

✅ Counter flow heat exchangers have the iron rule during the connection process - the media must flow in the opposite direction (one to another). This is the counter flow - or counter courent pattern in practise.

Basic Principle of Counterflow in Heat Exchanger Connections

☑️ Connecting a counterflow heat exchanger must follow the counterflow principle — otherwise, the device will not reach its expected efficiency. So how should a counterflow heat exchanger be connected?

✅ If the heat exchanger is designed for counterflow operation (which should be indicated by the manufacturer), it’s important to remember that the basic counterflow principle must be applied when connecting it. This principle means that the fluids (or more generally, media) flowing through the exchanger move in opposite directions relative to each other. This allows them to remain in thermal contact for a longer period, resulting in more efficient heat transfer. That’s what counterflow is.

However, the connection of the heat exchanger is not arbitrary — the heat exchanger plates may have grooves that determine the flow direction. In such cases, only exchangers designed for this purpose can be classified as counterflow units — and must be connected accordingly.

Are All Heat Exchangers Connected in a Counterflow Configuration?

✅ Not all heat exchangers are designed for counterflow operation — so not all are connected that way. There are also parallel flow (co-flow) models, and the manufacturer should always provide guidance, at least in the user manual, on how a specific model should be connected.

Principle of operation of counter current exchangers

The principle of operation of counter current exchangers involves transferring heat between two fluids, hot and cold, flowing in opposite directions. This process is based on the principle of heat flow from the hotter fluid to the colder one. Effective heat exchange between the fluids is crucial for minimizing losses and achieving high process efficiency. Counter current heat exchangers ensure efficient utilization of available heat, making them widely used in various industries. By transferring heat from the hot fluid to the cold one, counter current exchangers allow the energy from one process to be used to heat the fluid in another process. Moreover, minimizing heat losses in the exchange process leads to energy savings and increased system efficiency. Thus, counter current heat exchangers are not only economical but also more environmentally friendly. Heat exchange in opposite directions contributes to optimal utilization of available resources and significantly enhances the efficiency of the entire thermal process. Below, we explain why counter current heat exchangers are so effective.

Why does a counter flow heat exchanger have such high efficiency?

Counter current heat exchangers are highly efficient, reaching up to 85%. Due to their design, which maximizes the temperature difference between the two exchanged fluids, heat transfer is very efficient. The effectiveness of counter flow heat exchangers can be attributed to several key factors, discussed below.

Temperature gradient:

✅ In a counter current system, hot and cold fluids flow in opposite directions. This creates a constantly decreasing temperature gradient along the length of the heat exchanger. As the temperature difference between the two fluids decreases, heat exchange continues to occur along the entire length of the exchanger, allowing for more efficient utilization of the available temperature difference.

Maintained Temperature Difference:

✅ Due to the opposite flow directions, the hot fluid entering the counter flow heat exchanger initially encounters the coldest fluid, while the cold fluid entering the exchanger initially encounters the hottest fluid. This means that the greatest temperature difference occurs at the point of initial contact. As the fluids move through the exchanger, the temperature difference gradually decreases but remains higher compared to other types of flow configurations, such as parallel flow.

Counteracting Heat Losses:

✅ In a heat exchanger with parallel flow, the temperature difference between the two fluids decreases more rapidly along the length of the exchanger. This can lead to a situation where at some point, the temperature difference becomes so small that heat exchange effectively stops. In contrast, in the countercurrent heat exchanger described in this article, opposite flow directions ensure a more uniform distribution of heat exchange along the entire length.

Where are counter flow heat exchangers used?

  • Ventilation and air conditioning - in this case, counter current heat exchangers are used to efficiently transfer heat between the outdoor air stream and the indoor air stream. These are, of course, air-to-air heat exchangers.
  • Pharmaceutical industry - in pharmacy, counter flow heat exchangers are used in drug production processes (in distillation, drying, crystallization).
  • Chemical industry - in chemical companies and research institutes, counter flow heat exchangers are used to control the temperature of chemical reactions, distillation, and condensation.
  • Petrochemical industry - in refineries and other petrochemical plants, counter current heat exchangers are used for cooling hot products and substances that require rapid cooling to maintain specific processing conditions.
  • Energy industry - in nuclear and thermal power plants, counter current heat exchangers are used to transfer heat between the cooling circuit and the working circuit to generate electricity.
  • Food industry and refrigeration - in food production, counter flow heat exchangers can be used for rapid cooling or heating of food products, as well as in the pasteurization and drying processes.
  • Metallurgical industry - counter flow heat exchangers in this case are used to control the temperature in processes such as rolling, casting, or heat treatment.
  • Central heating and domestic hot water heating.

Advantages of counter current heat exchangers

Counter current heat exchangers have several advantages worth knowing about. Undoubtedly, their significant advantages include high efficiency, wide application, low production costs, and reduced thermal stresses in the structure compared to concurrent exchangers.

High Thermal Efficiency

✅ Counter flow heat exchangers have many advantages, with one of the most important being their very high thermal efficiency. This means that thermal losses are negligible, and almost all of the heat energy is used for heating or cooling the building. As a result, such exchangers are very efficient and cost-effective to operate. Additionally, thermal insulation can be applied to plate exchangers, further minimizing losses.

Wide Application

Another advantage of counter current heat exchangers is the flexibility of their application. They can be used for both heating and cooling purposes, making them widely applicable in various industries such as food, chemical, energy, or building heating and air conditioning.

Low Costs

Moreover, counter flow heat exchangers are relatively inexpensive to produce, making them attractively priced for users. Finally, this type of exchanger is easy to install and maintain, making it practical to use. Therefore, counter current heat exchangers are becoming increasingly popular in the field of thermal technology.

High Heat Exchange Rate

The countercurrent arrangement allows for a higher overall heat exchange coefficient compared to other flow configurations. This means that counter flow heat exchangers can achieve the desired temperature change with a shorter length, which is particularly beneficial in situations where space is limited.

Reduced Thermal Stresses

✅ The counter current flow helps reduce thermal stresses on the materials used in the heat exchanger. Because hot and cold fluids gradually come into contact with each other, and the temperature difference decreases along the length of the counter flow heat exchanger, there are fewer temperature differences that can cause thermal stresses.
