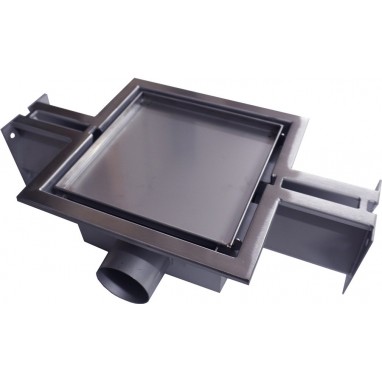

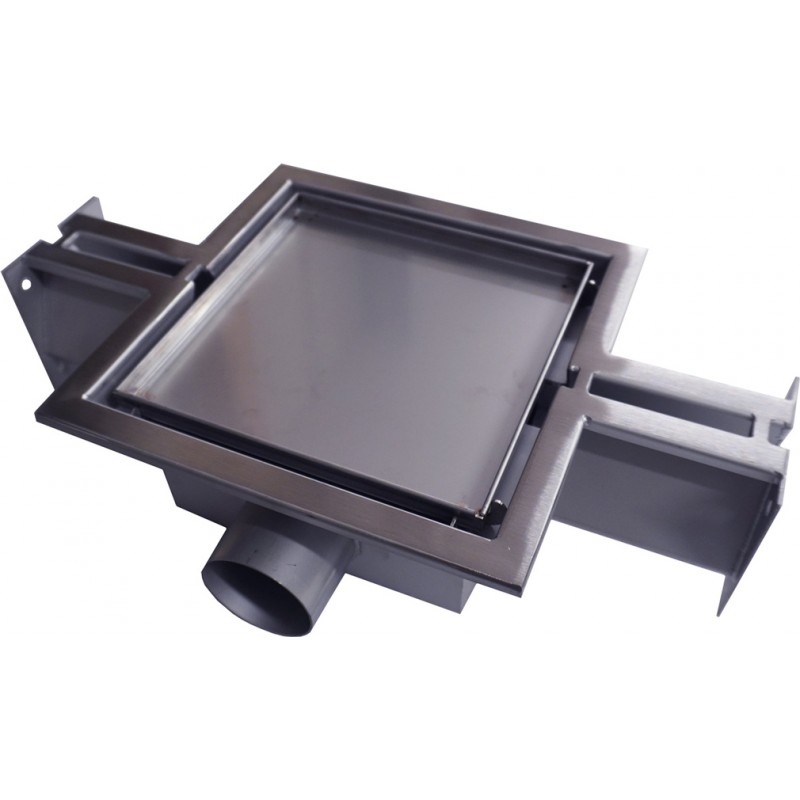

Drainage grate for garage - primarily intended for this use, but also for basements, storage rooms, boiler rooms, and all spaces where it might be needed. A pressure-resistant drainage grate with an industrial design.
☑️✅ The drainage grate from this offer is not a standalone product; it should be purchased with at least one channel (extension arm). The set includes one plug which allows for blocking one of the inlets; an extension channel should be mounted to the other inlet.
☑️ Fast availability and solid quality, resistant to loads
✅ Low-cost or free delivery of our linear drainage systems available throughout Europe
This type of driveway drain grate is intended for more utilitarian spaces such as garages, boiler rooms, or warehouses. The drain grate is essentially not a standalone product; an appropriate number of extension arms - channels should be selected for it to form a complete, larger catchment area. It also works excellently in workplaces like butcher shops, food processing plants, and similar. It is very important to note that, unlike standard shower drains, the drainage grates in this offer have immense pressure resistance, so they can also be used in vehicle parking spots.

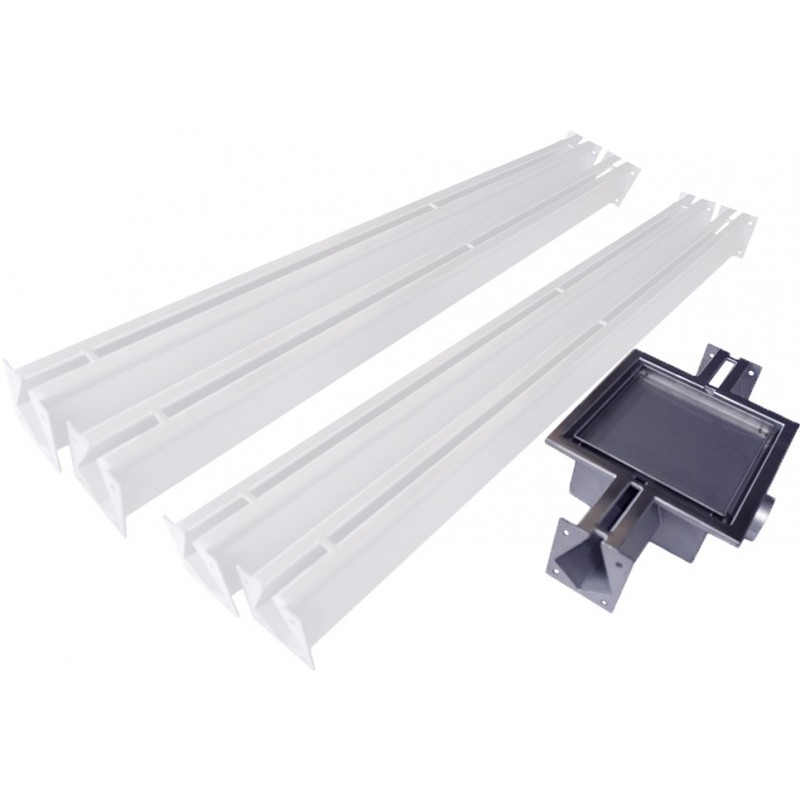

Our driveway grates are dedicated to garages, large or small boiler rooms or warehouses, hangars, and halls. Consequently, they are designed in a modular way. This means that any number of water collection channels can be added to the inlets on the sides of the drainage grate. These channels are also available in our catalog and can be connected in virtually any way, achieving lengths of even several meters.
You can connect not only a drainage grate and arms but also, for example, several drainage grates and several arms - thus obtaining a larger catchment area and a greater number of connections to the sewer system. The product essentially has no limitations, provided an appropriate slope is implemented in the room.

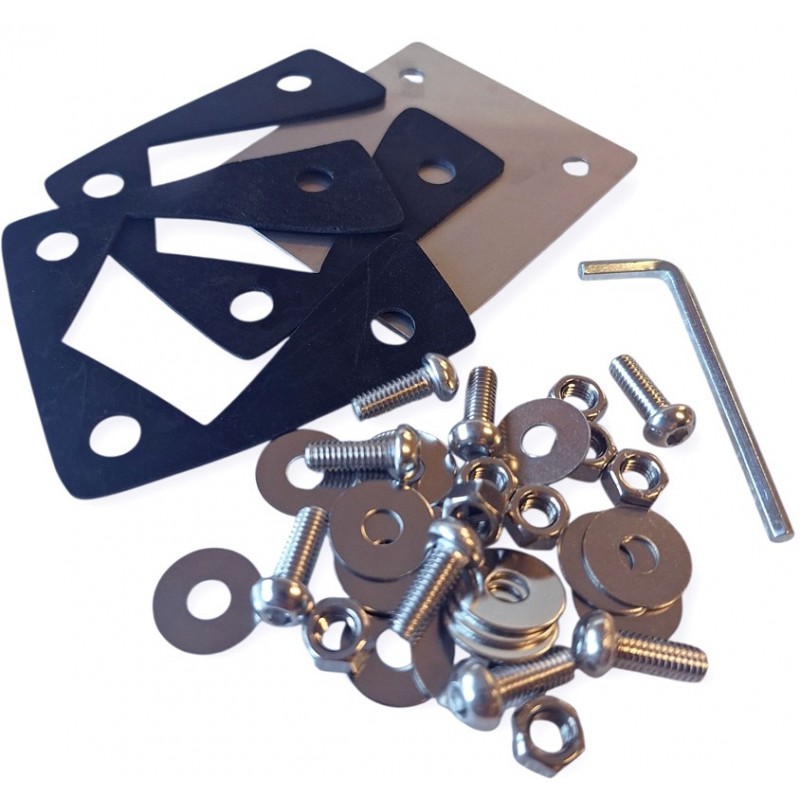

You can also choose not to attach drainage channels from both sides of the grate, but only from one side - by simply plugging the other side. We remind you that this linear drain for the garage is complete and includes plugs and seals. The set also includes the Allen key needed to assemble the bolts.

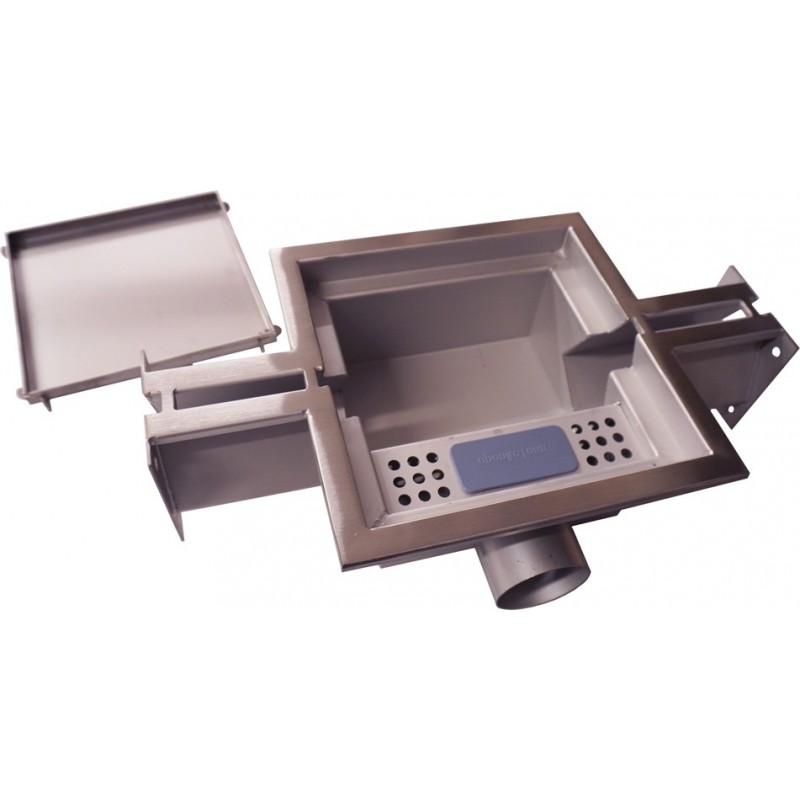

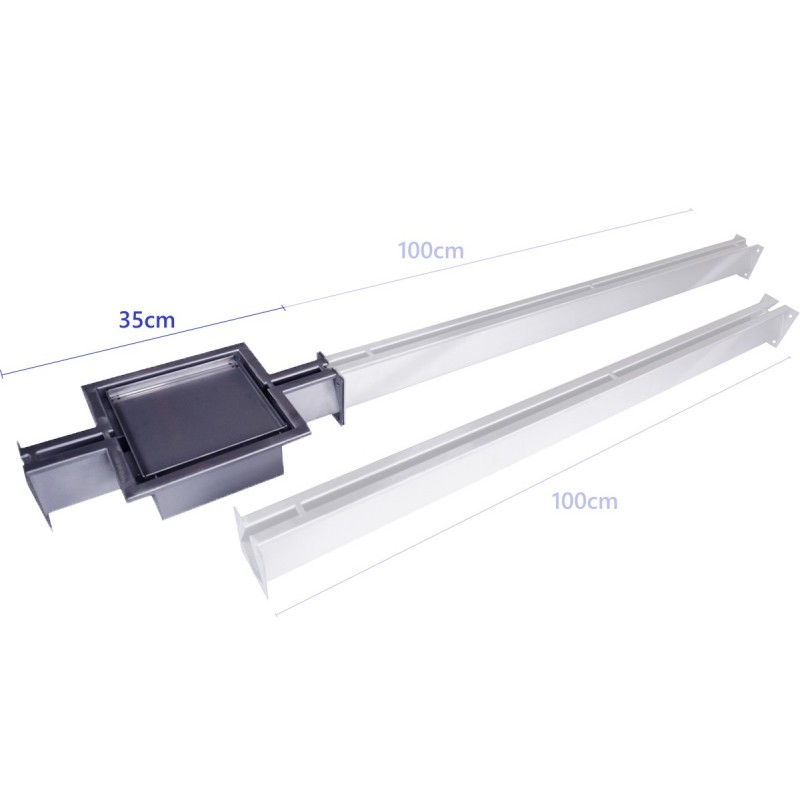

The basic dimensions of the drain grate are 20x20, referring to the basic dimensions of the square element. Its total length after adding the arms is 35cm, as shown below. The depth at the point where the sediment trap is located is 85mm measured to the floor surface. The outlet pipe size is standard, i.e., DN50.
The designation for the drainage grate - 2-EXITS - obviously refers to the 2 outlets used for connecting drainage channels. Our offer also includes 1-EXIT grates, with one outlet - and entire sets based on the 1-EXIT grate.
