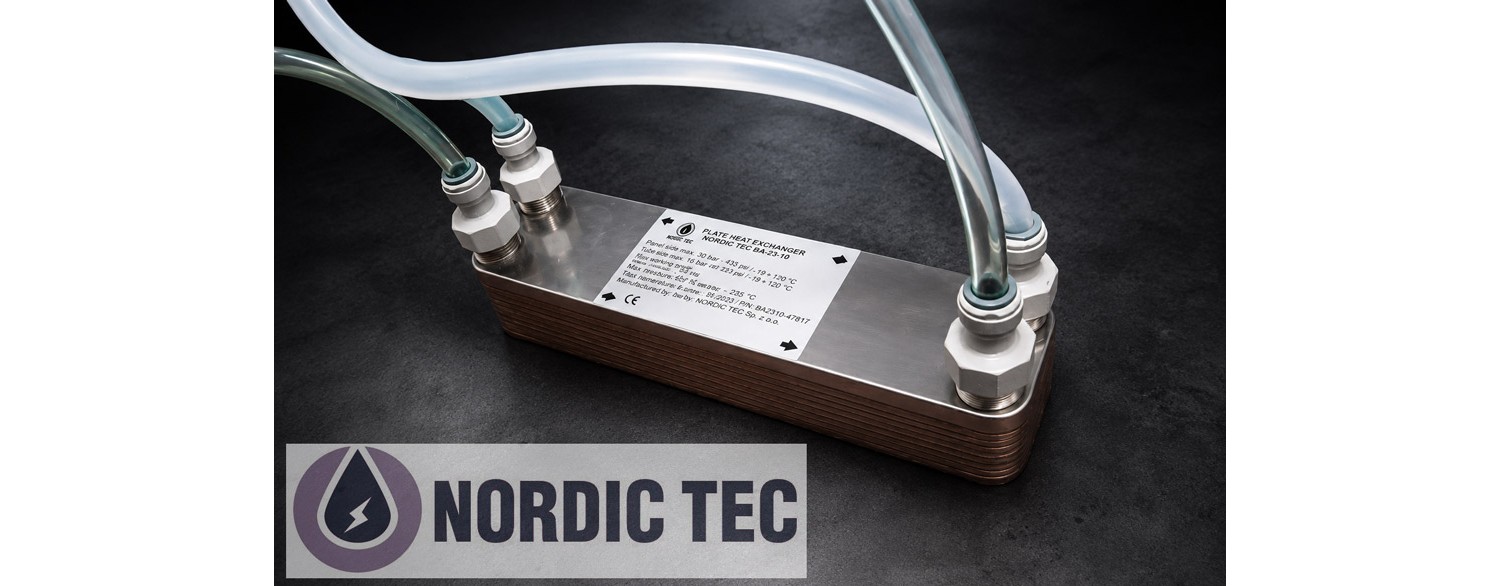

A plate heat exchanger is one of the most effective solutions for cooling brewing wort – both in craft breweries and in traditional home brewing. It is gaining more and more supporters - its use allows you to shorten the wort cooling time, reduce cold water consumption, and improve the microbiological safety of the entire process. Lower risk of contamination and batch loss. In practice, this means better beer quality and greater brewing repeatability, and for the brewer - time savings.
Unlike immersion beer chillers, a plate heat exchanger works in a flow-through manner. The wort does not remain in the kettle during cooling, but flows through the device and reaches the fermenter already cooled. With a properly selected model (relative to the size of the batch), the wort should be cooled immediately after passing through the exchanger - down to the desired 20 degrees Celsius, even if the initial temperature exceeds 105 degrees Celsius.
Originally, the device comes from heating technology - but in reality it has many applications, including cooling purposes. Slowly, the plate heat exchanger is becoming the standard type of beer cooler among amateur brewers.
The operating principle is based on heat exchange between two media: hot wort and cold water. The exchanger has 2 channels - the media flow in opposite directions (the so-called counterflow principle), which maximizes heat transfer efficiency.
Inside the exchanger there are thin, profiled stainless steel plates. They create narrow channels, thanks to which the heat exchange surface is very large despite the small size of the device (a beer heat exchanger is a compact device, very convenient to store, and its weight should not exceed 3-4 kg if we are talking about devices used for classic homebrew batches). The effect is that the wort can be cooled from ~100°C to fermentation temperature even in a single pass.
✅ After using a heat exchanger as a wort cooler - we can basically move immediately to the next stages of beer production.
If we were to consider which aspects favor the plate heat exchanger and why it is a better wort cooler than, for example, immersion chillers - there are many aspects, more or less significant. However, the final conclusion strongly favors plate heat exchangers.
The biggest advantage of a plate heat exchanger is its speed of operation. Wort cooling takes place during transfer to the fermenter, eliminating the need for long waiting times. This can save many hours, allowing us to plan the day differently.
Instant cooling during transfer to the fermenter is not only convenient, but also significantly reduces the risk of beer wort contamination. Anyone who has experienced it knows how frustrating and disappointing it is to write off an entire batch as a loss.
Of course, there is the issue of proper sanitization of the heat exchanger - because every wort cooler must be sterile, but this is not very demanding. More on that later.
The second important aspect is water savings. With the right configuration, very good results can be achieved with relatively low water consumption. Often it is even several times less water than when using immersion chillers.
It is worth noting a simple rule here - the larger the exchanger, the more efficient it is. This means that in properly oversized exchangers we can reduce the required water volume to a minimum. If we brew often - this is a real saving. But more about sizing in a moment.
Additionally, the device takes up little space and fits easily even into small brewing setups. We do not need to allocate much storage space for the heat exchanger, its dimensions basically allow it to be stored even in a drawer.
The selection of a wort cooling exchanger should depend on several factors: batch volume, flow rate, and cooling water temperature. This is not the place for excessive savings – a model that is too small will simply be inefficient, will require more water, or will not be able to fully cool the beer in a single pass. And you will not save much on the exchanger price itself.
A benchmark exchanger for homebrew batches is a model with parameters similar to the Nordic Tec Ba-23-30 heat exchanger with a surface area of 0.69m² and 3/4" inch connections.
❌ Heat exchangers with 12, 16, or 18 plates should absolutely be avoided. As a rule, they will not have a sufficient plate surface area (unless the plates themselves are very large, but based on market realities there are no suitable solutions with such a low number of plates). The number of plates - or more precisely their surface area, determines efficiency. Sometimes it is enough to add 50, 70, or 100 PLN to get a beer cooler that works perfectly.
Most exchangers are made of stainless steel brazed with copper. However, there are different types of stainless steel - not all are equally sterile or equally resistant to bacteria. Therefore, sellers are often reluctant to provide detailed material specifications when lower-quality steel is used.
It is worth emphasizing - 304 stainless steel is an inferior and cheaper equivalent, which is more favorable for bacterial growth that could more easily develop on the plate surfaces between batches. This is not what we want.
✅ The absolute standard should be 316 stainless steel - the type used in the food industry, which meets all standards and is considered an environment unfavorable to bacteria.
A plate heat exchanger is very easy to operate, and during the process, before moving to the final cooling steps - there are only 2 simple rules
A filter can be used before the exchanger if large clumps are expected in the wort – preferably a hop stopper, mesh filter, or another sediment separator. Without this, it is very easy to clog the channels - although particles up to 2mm should not be a problem for most plate heat exchangers.
In homebrew batches, using pumps is generally unnecessary, it is enough for the beer cooler to be positioned lower than the container with hot wort so that gravity can do the work.
Sanitizing the exchanger after brewing beer is one of the most important aspects that cannot be underestimated and must not be forgotten. A plate heat exchanger is a closed device, so it cannot be disassembled. All cleaning is done through proper flushing.
After each use, the device should be rinsed with hot water, followed by the use of cleaning agents (e.g. alkaline cleaners) and disinfectants. It is also worth performing backflushing from time to time, which helps remove accumulated contaminants.
Cleaning plate heat exchangers is advisable in most applications. It definitely extends the service life of the device - whether in a camper hot water system or in a central heating installation. However, in beer brewing its role is much more significant, here you simply cannot skip it, because wort residues in the channels will ferment, causing enormous risk for the next batch.
The most common problem is the lack of proper filtration before the device - if our wort contains large hop residues. Hop particles and protein sediments can clog the exchanger channels, which could reduce its efficiency.
The second mistake is excessively fast wort flow – if the flow is too high, cooling will not be effective. It is worth finding a balance between efficiency and outlet temperature. You can always slow down the wort flow in a simple way - for example, in home conditions it is enough to attach a clip to the hose carrying the wort. Alternatively, a slightly more expensive solution is installing ball valves at the exchanger inlet - which allows precise flow regulation.
This problem does not occur when the exchanger is properly oversized, therefore proper sizing should always be remembered.
The third mistake is insufficient cleaning. Even small amounts of residue can lead to infection and spoil the entire batch. And this is probably the only drawback of a heat exchanger as a wort cooler - but there is no reason to dramatize this issue, properly sanitizing the exchanger after cooling is not very difficult.
If you care about fast, efficient, and repeatable wort cooling, a plate heat exchanger is definitely the best choice. It requires a little more attention when cleaning and preparing the installation, but in return it offers parameters that cannot be achieved with classic methods. The few hours saved mean that the benefits are essentially enormous.
This solution is especially recommended for people who want to take their beer brewing to the next level and gain greater control over the entire process. If your brewing adventure is not a one-time thing and you know that you will do it from time to time - sooner or later it will be worth having this accessory.
