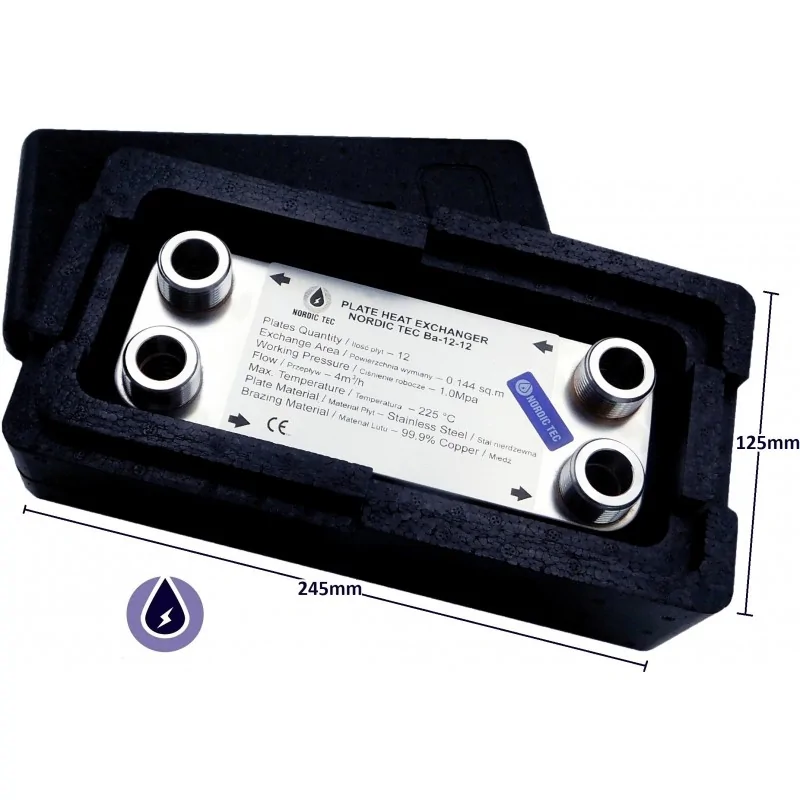

brazed plate heat exchanger with 12 plates

Heat Exchanger NORDIC Ba-12-12 3/4" 25kW

Small Plate Heat Exchanger for small HVAC applications NORDIC TEC Ba-12-12

  • Plates Quantity: 12 pcs.
  • Connections: 3/4" BSP
  • Heat Exchange Area: 0.144m²

The smallest plate heat exchanger in the Nordic Tec manufacturer's catalog. A 12-plate small heat exchanger used for connecting additional heating or cooling circuits to existing heating systems - or for small heat exchange systems. The device has a heat exchange surface of 0.14 m² and 3/4" connections. Optionally, this heat exchanger can be purchased with thermal insulation and a mounting kit designed for wall mounting. It is one of the smallest heat exchangers on the market - due to its limited dimensions, it is not intended for servicing entire central heating systems, but rather for servicing parts of them.

☑️ Fast delivery of goods to most European countries (within max. few days).
✅ Free delivery to the following countries: DE, AT, FR, NL, BE, IT, ES, DK, PL, CZ, LT, LV, EE, SI

Reference: NT Ba-12-12
Condition New
Accessories for PHE
  • Exchanger only (without accesories)
  • with Wall-Mounting+Fittings
  • With Thermal Insulation
  • Full Set (with Insulation&Wall-mounting with Fittings)
On stock
€44.99
VAT included



The smallest HVAC Heat Exchanger - Nordic Tec Ba-12-12 - 4x 3/4", 12 plates




Technical details - Small 12-plate heat exchanger Ba-12-12:

  • Plate material: Stainless Steel S316L, brazed with 99,9% Cu
  • Connections: 4x 3/4", BSP
  • Working Pressure - <10 bar
  • Test Pressure - 20 bar
  • Max. temperature +230°C
  • Flowrate - 4 m³/h

Heat Exchange Surface - the smallest heat exchanger Ba-12-12 : 0.144 m²

Heat exchange area - Plate Heat Exchangers Nordic Tec Ba-12

The main applications of a heat exchanger Ba-12-12 by Nordic Tec:

This unit Ba-12-12 is the smallest PHE in the Nordic Tec's offer and probably one of the smallest units of this type on the European market. Because of the dimensions it's not destinated to heat the buildings or flats as a whole, but rather to connect the additional circuits, which should be separated from the main heating system because of some reasons. One of the reasons for this is the need of filling the extra circuit with a glicol or other medium.

It can be a very good solution when we want to increase our heating system, for example when we increase our home, by building new rooms or garage.

The smallest heat exchanger in our offer - has te exchange area of 0.144 square meters. Comparing to other units from the serie it looks as below:

Dimensions - Plate Heat Exchanger Ba-12-12:
Heat Exchanger Nordic Tec Ba-12-12 dimensions
