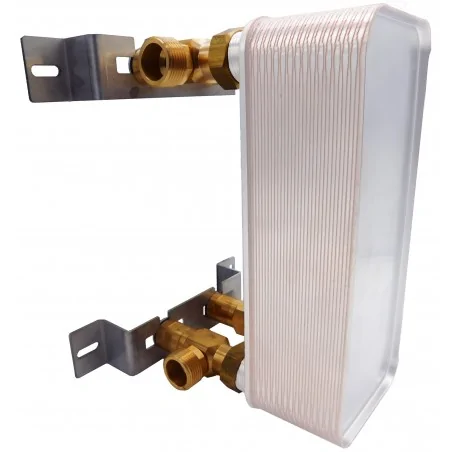

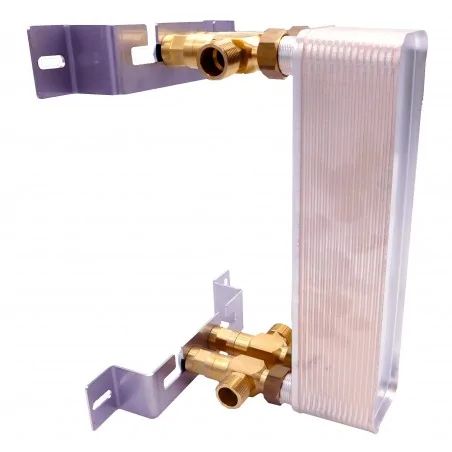

Wall-Mounting set for Plate Heat Exchanger 3/4"

Wall Mounting - Installation Kit for DN20 Plate Heat Exchanger

Wall mounting kit for a plate heat exchanger with a complete set of angled fittings.

• Includes all mounting components, except for screws or wall plugs for direct wall fixing (these must be purchased separately, depending on the surface to which the kit will be mounted and the weight of the heat exchanger).

Technical details:

• The wall mounting kit for a 3/4" plate heat exchanger is complete and easy to assemble, even for less experienced users.

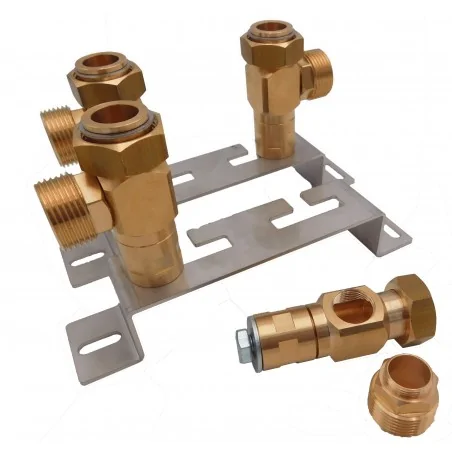

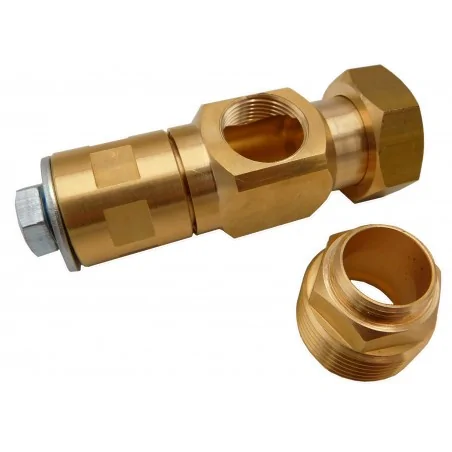

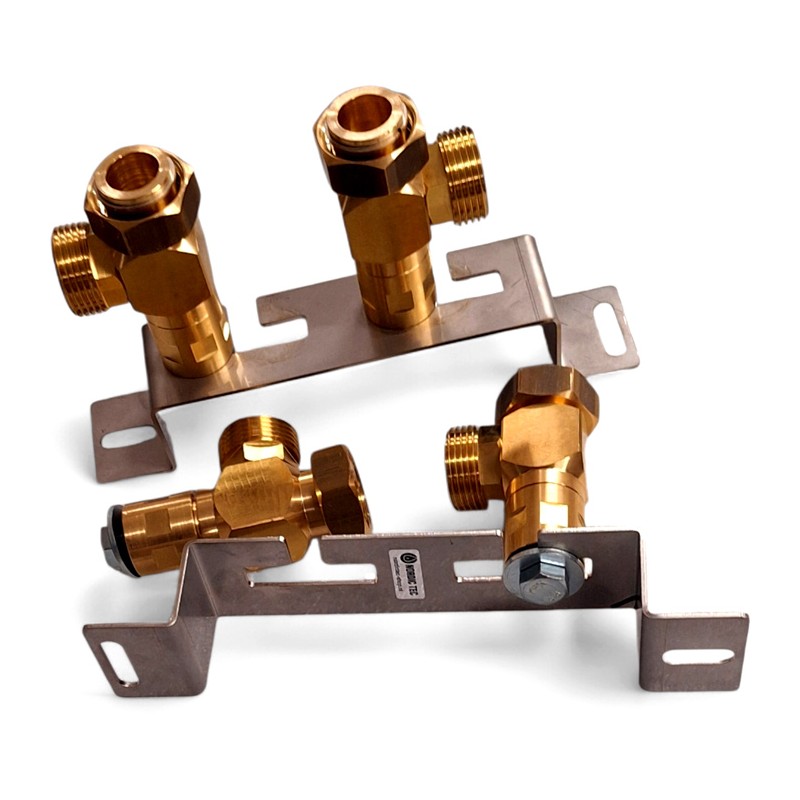

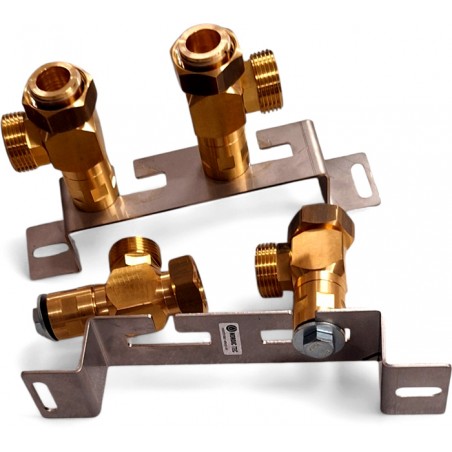

• Includes 4 high-strength brass angled fittings, size 3/4", with additional threading for fixing to the wall support.
• The fittings are reinforced, allowing them to support a high load over a long period.
• O-rings included in the set with the fittings.
• Threaded steel fasteners between the support and the heat exchanger fittings.

Support for 3/4-inch plate heat exchangers – suitable models:

• The distance between the heat exchanger connections (marked as D in the diagram) must be between 40 mm and 120 mm.
• The heat exchanger support – mounting kit is intended for plate heat exchangers with 3/4" connections.

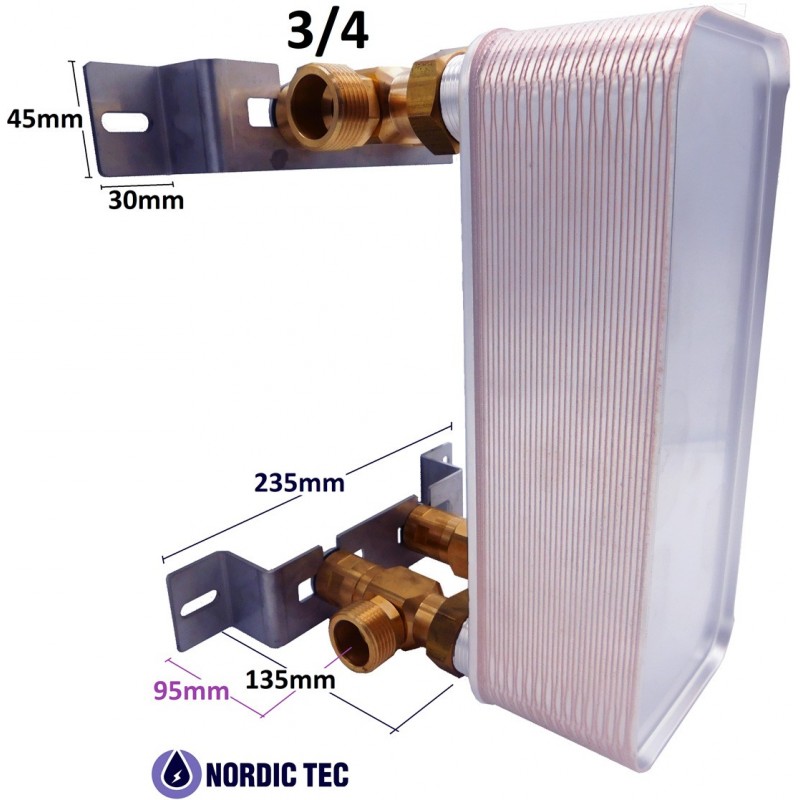

Distance between heat exchanger connections – 3/4" support:

If you need a wall mounting support for 1" or 1 1/4" heat exchangers, please check our other heat exchanger supports.

The plate heat exchanger support is an exclusive Nordic Tec 3/4 design and is a Polish-made product.
