Large freon-water plate heat exchanger for refrigerant-liquid media
Channel characteristics:
Heat exchange surface: 4.76 m²
Heat pump/unit/air conditioner capacity - 34-50 kW
Working pressure on gas side: < 45 bar

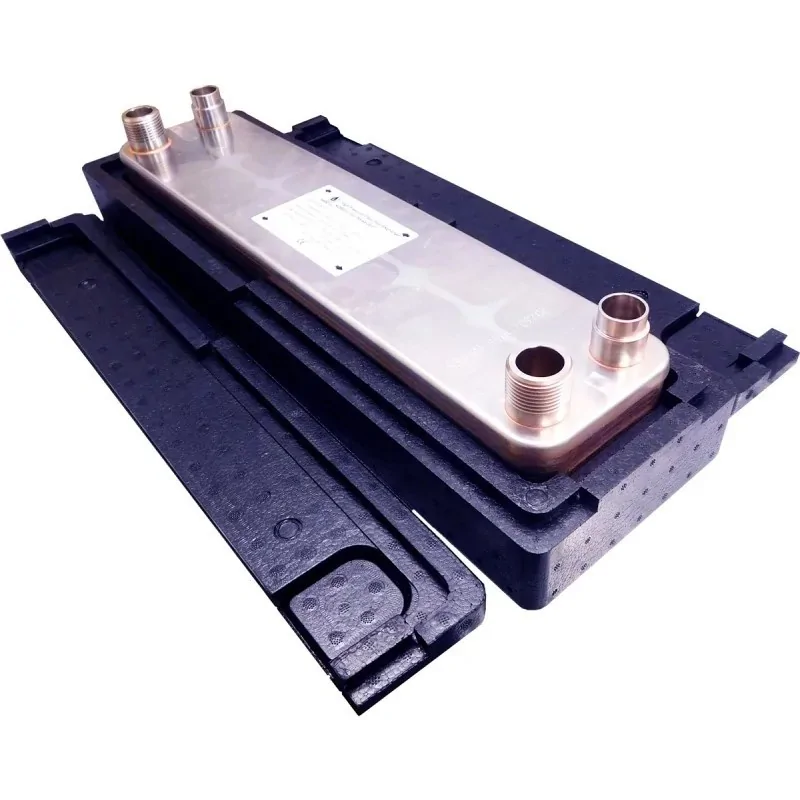

Insulation for the refrigerant-water heat exchanger is an optional accessory.
The insulation selection menu is located below, just above the price.
☑️ Quick availability of freon-water heat exchangers and option to purchase welding nipples with SAE adapter
✅ Fast delivery over all European countries

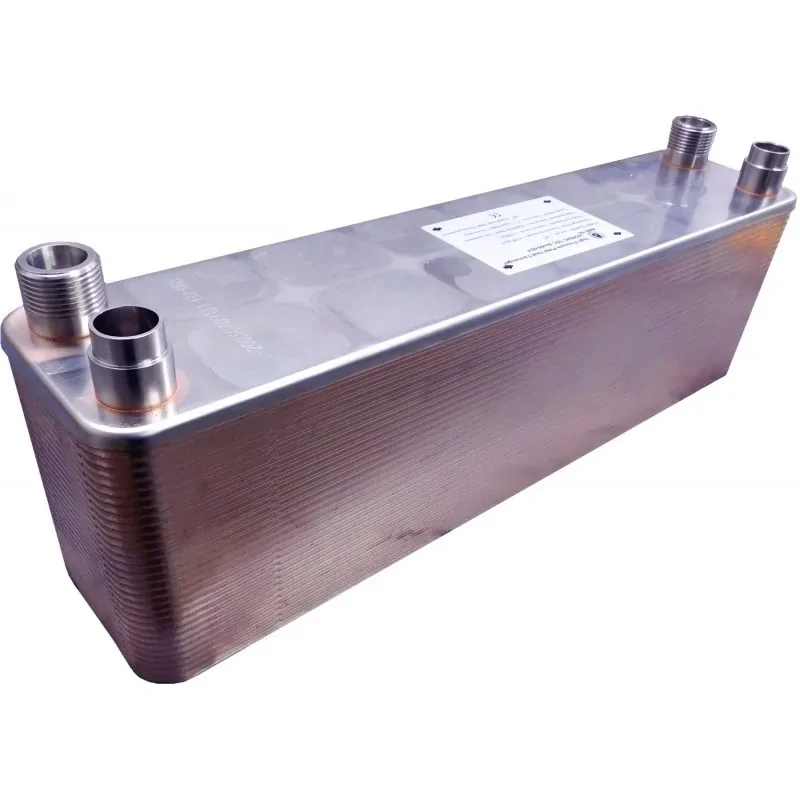

70-plate heat exchanger, freon-water for heat pumps or air conditioners, also suitable for larger units in the 34-50 kW range
Technical Details - Ba-68-70-F Freon Heat Exchanger for Heat Pumps:
Parameters: Freon side R410a; Tskr = 40ºC,
Liquid side: Water; T-IN= 32ºC; T-OUT = 37ºC
The calculation was performed using R410a, but the exchanger is compatible with other refrigerants in systems up to 45 bar. In practice this means it can handle nearly all systems of this type, whether using R410a, R32, R407c, R134a or similar refrigerants.
Check: ✅ SAE adapter fittings for welding to Ba-68-F heat exchanger pipes

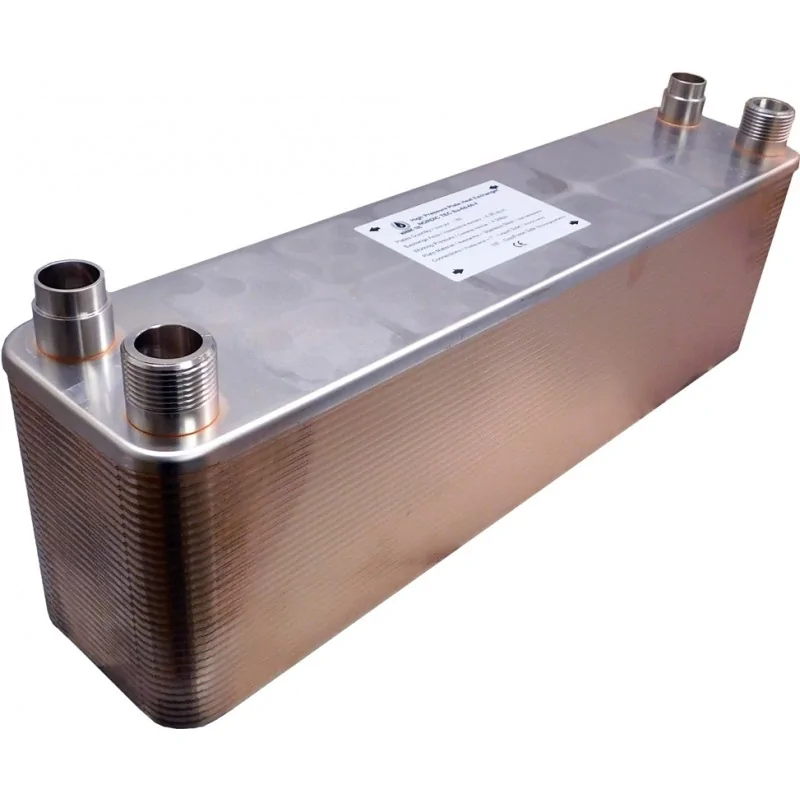

The Ba-68-70-F freon-water heat exchanger is currently the largest heat exchanger for this application in the Nordic Tec catalog. It features a heat exchange surface of 4.76 m², enabling it to handle very large heat pump and refrigeration systems with capacity up to 50 kW according to the specifications.
Smaller freon heat exchangers shown in the chart - such as Ba-68-40-F or Ba-68-60-F are also available in our store.
Dimensions - Ba-68-70-F freon-water heat exchanger
Length (A) - 526 mm
Width (B) - 119 mm
Thickness (F) - 174 mm
Distance between connections (C) - 470 mm
Distance between connections (D) - 63 mm
