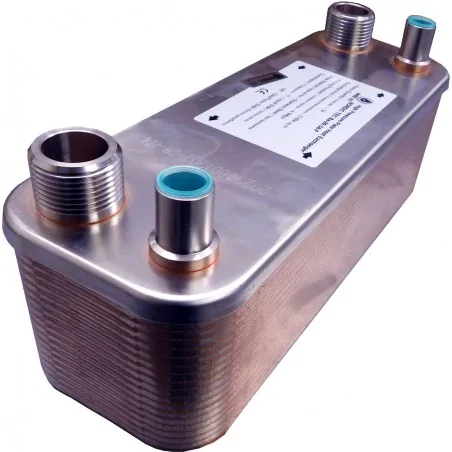

A 70-plate refrigerant heat exchanger for gas to water media, designed for high-pressure applications (< 45 bar). It is suitable for use with liquids (on the 1st channel - so called receiving side) and refrigerant/gas (the 2nd side). The heat exchanger Ba-26-70-F can be an excellent condenser or evaporator for heat pumps or AC systems, even when converting an AC into a home heat pump. It performs excellently with practically all refrigerants in systems not exceeding 4.5 MPa.

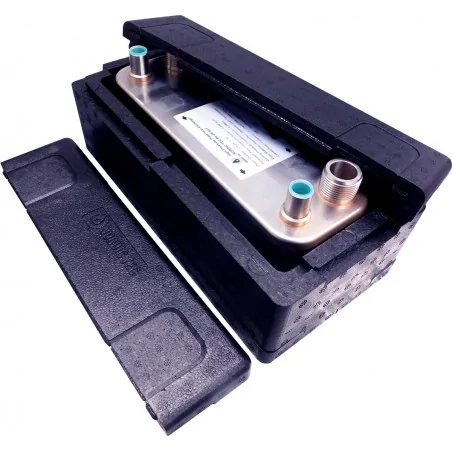

The 70-plate refrigerant heat exchanger is optionally available with insulation as well.
☑️ Delivery possible in every European destination
✅ Free delivery in: FR, IT, ES, DE, PL, SI, AT, DK, NL, BE, CZ, LV, EE, LT
The Nordic Tec BPHE for gas to liquid is designed for use in heat pumps or air conditioners, specifically for operation as an evaporator or condenser in devices with a capacity ranging from 12 to 18 kW.
Technical Details of this gas heat exchanger:
The graphic comparison places the Nordic Tec Ba-26-70-F freon heat exchanger among the closiest alternative heat exchanger (but only the ones who can afford high pressure systems - and are considered refrigerant heat exchangers). The Ba-26-70-F, which consists of 70 plates and has a plate surface area of 1.82m², is the largest heat exchanger for freon in the series Ba-26-F. In practice, it can work with heat pumps and AC unit up to 18 kW.
The series Ba-26-F is equipped with the connection for brazing - pipe 5/8". If you need a bigger one - you can check the HE from the series Ba-68-F - which has 7/8".
Dimensions:
(A) - 308 mm
(B) - 106 mm
(F) - 175 mm
(C) - 250 mm
(D) - 50 mm
If you need something similar but for classic applications - liquid to liquid HE - please check:
