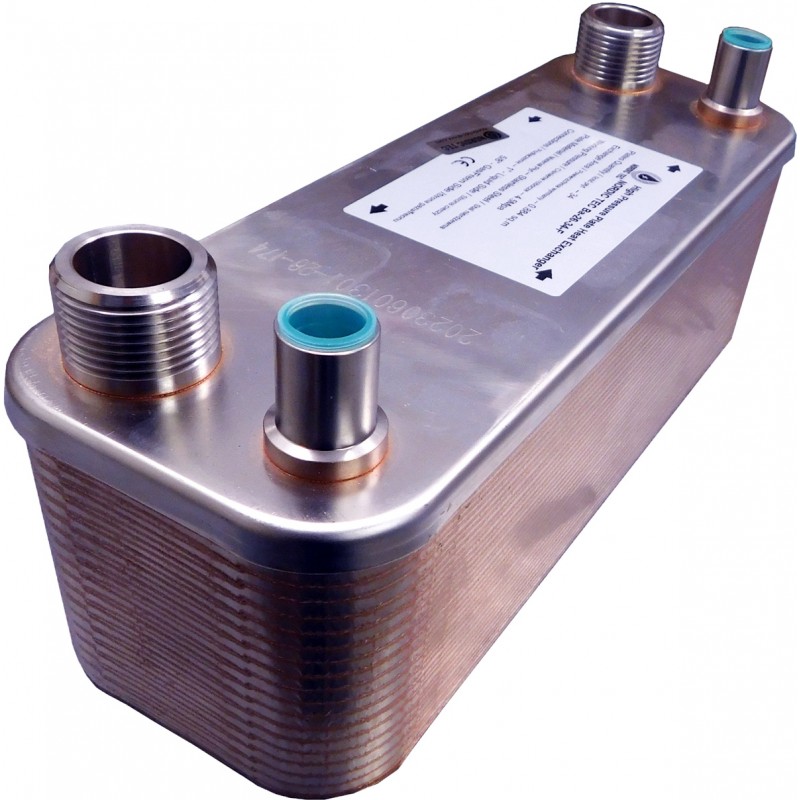

Refrigerant to Liquid Heat Exchanger Nordic Tec Ba-26-60-F 1,56m²

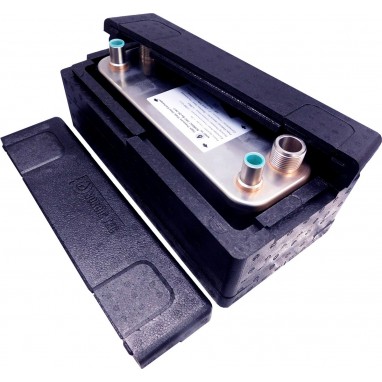

Gas Liquid Heat Exchanger Nordic Tec Ba-26-60-F 1with insulation
Refrigerant to Liquid Heat Exchanger Nordic Tec Ba-26-60-F 1,56m²
Gas Liquid Heat Exchanger Nordic Tec Ba-26-60-F 1with insulation

Gas Liquid Heat Exchanger Nordic Tec Ba-26-60-F 1,56m²

Freon Heat Exchanger - 60-Plate Ba-26-60-F for Refrigerant

A 60-plate freon heat exchanger for gas media, designed for high-pressure applications (up to 45 bar). It is suitable for use with liquids (on the receiving side, 1st channel) and refrigerant/gas (opposite side). The heat exchanger can function as a condenser/evaporator for heat pumps or air conditioning systems, even when converting an air conditioner into a home heat pump. It performs excellently with refrigerants in applications not exceeding 45 bar | 4.5 MPa.

  • Number of plates: 60 plates
  • Connections - Gas side: 5/8" tube (φ15) | Liquid side (heat receiver side): 1"
  • Heat exchange surface area: 1.560 m²
  • Estimated heat pump / unit / air conditioner capacity: 10 - 16 kW
  • Working pressure on the gas side: up to 45 bar

The 60-plate freon heat exchanger is optionally available with insulation as well.

☑️ Optionally, the possibility to purchase a Ba-26-60-F heat exchanger with insulation
✅ Free delivery in: FR, IT, ES, DE, PL, SI, AT, DK, NL, BE, CZ, LV, EE, LT

Reference: EU-Ba-26-60-F
Condition New
Accessories for PHE
  • Exchanger only (without accesories)
  • With Thermal Insulation
On stock
€319.99
VAT included



Gas Heat Exchanger - for Heat Pumps 16 kW

The Nordic Tec brazed steel heat exchanger for gas-liquid is designed for use in heat pumps or air conditioners, specifically for operation as an evaporator/condenser in devices with a capacity ranging from 10 to 16 kW.

Technical Details:

  • Material: Stainless Steel 316L, vacuum-brazed with Cu
  • Heating Capacity for Heat Pump / Air Conditioner / Refrigeration Unit: 10-16 kW
  • Refrigerant / Gaseous Media Connections: ϕ15 - 5/8" for brazing
  • Traditional Liquid Media Connections: 1" - DN 25
  • Operating Pressure: Up to 45 bar ( maximal allowable pressure)
  • Pressure Tests before Commissioning: > 60 bar
  • Flow Rate: 12 m3/h
  • Connection Method: Counterflow


Heat exchange surface area of the Ba-26-60-F heat exchangers for Freon & Gas - 1.56 m²

Heat Exchange Surface Area for R290

The graphic comparison places the Nordic Tec Ba-26-60-F freon heat exchanger within the context of the Ba-26-F gas-liquid heat exchanger series. The Ba-26-60-F, which consists of 60 plates and has a plate surface area of 1.56m², is the largest heat exchanger for freon in this series. In practice, it can work with heat pumps and units/air conditioners up to 16 kW.

If you need a freon-water (or freon-water/glycol) heat exchanger for a larger unit, meaning one with a larger plate surface area, you can also find it in our catalog. Look for it in the second series of gas heat exchangers, the Ba-68-F series. These heat exchangers are based on larger plates and have larger connections for the refrigerant (7/8"). The largest freon heat exchangers in our store have a surface area of approximately 4m².

This freon heat exchanger can be used as well for converting AC to a heat pump.


Dimensions:
Gas HEat Exchanger Dimensions Ba-26-34
(A) - 308 mm
(B) - 106 mm
(F) - 152 mm
(C) - 250 mm
(D) - 50 mm

EU-Ba-26-60-F
