Nordic Tec · Fa-210 series

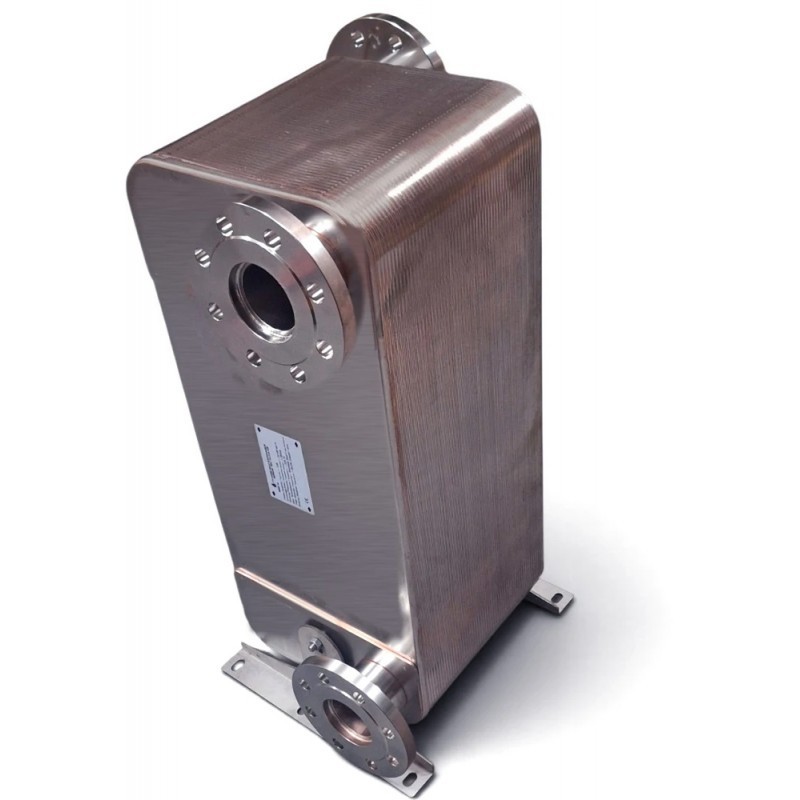

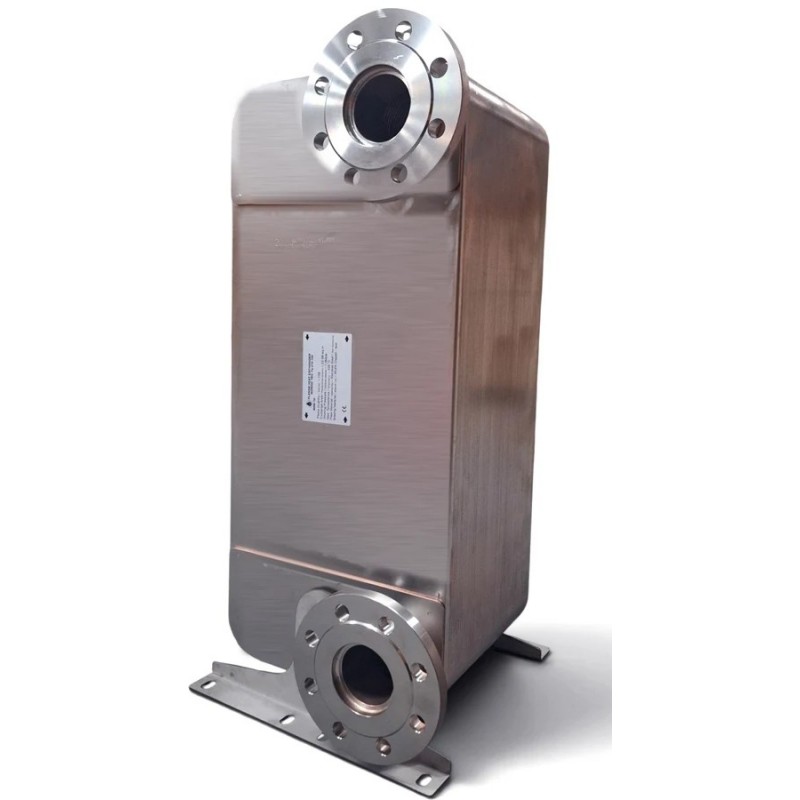

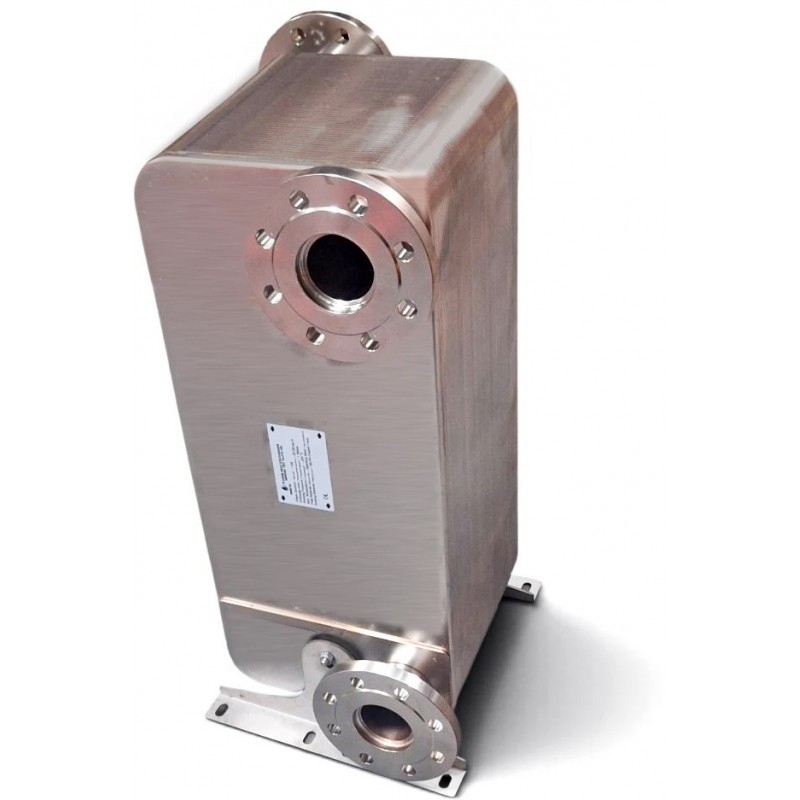

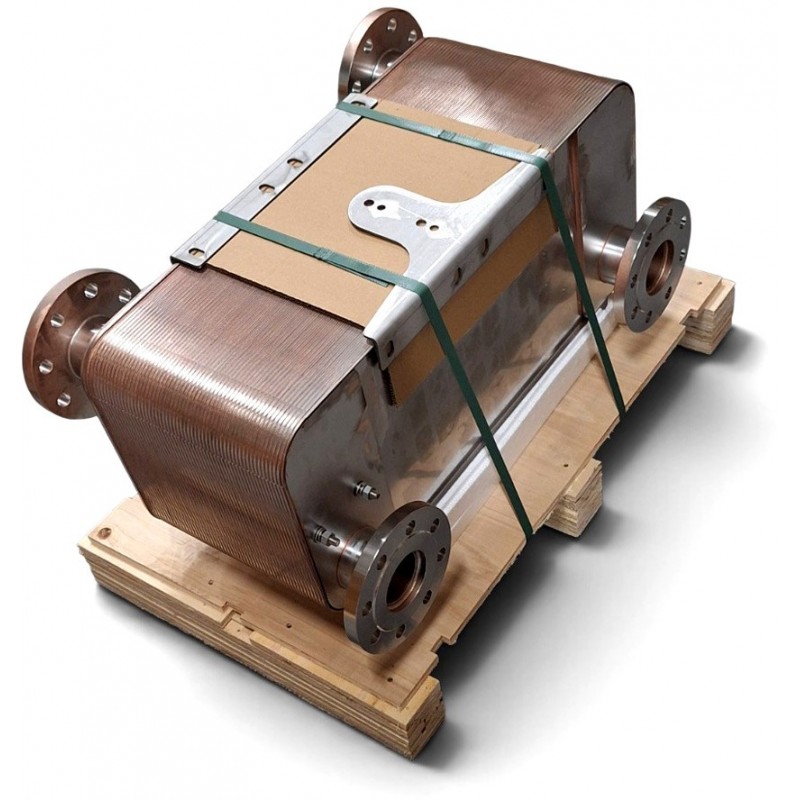

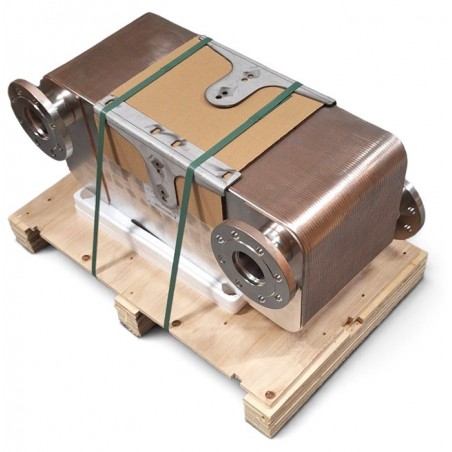

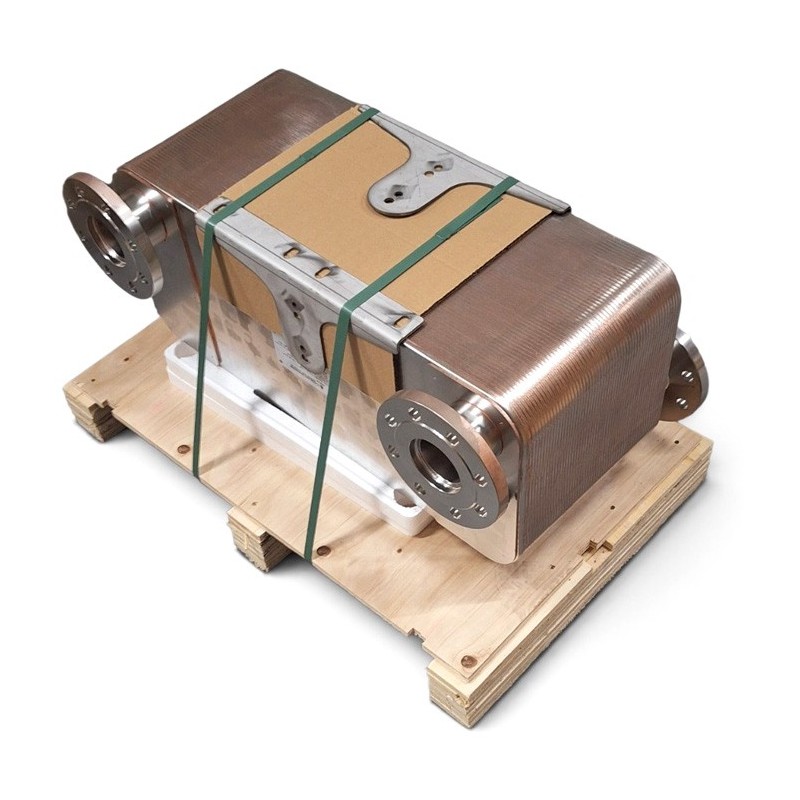

Flanged plate heat exchanger Fa-210-94 – DN65 flanges
Brazed plate heat exchanger with flanges instead of threads. It connects directly to flanged fittings and pipework – in large boiler rooms, district heating substations and industrial plants.
EN 1092-1 type 01 PN10/PN16 Stainless steel 316 Support legs includedcompliant with the Pressure Equipment Directive
Why a heat exchanger with flange connections?
DN65
Full bore without reduction
The four 2.5" flanges fit standard flanged fittings. You need no reducers or threaded adapters, which increase pressure drop and the risk of leaks.
2 + 2
Connections on both sides

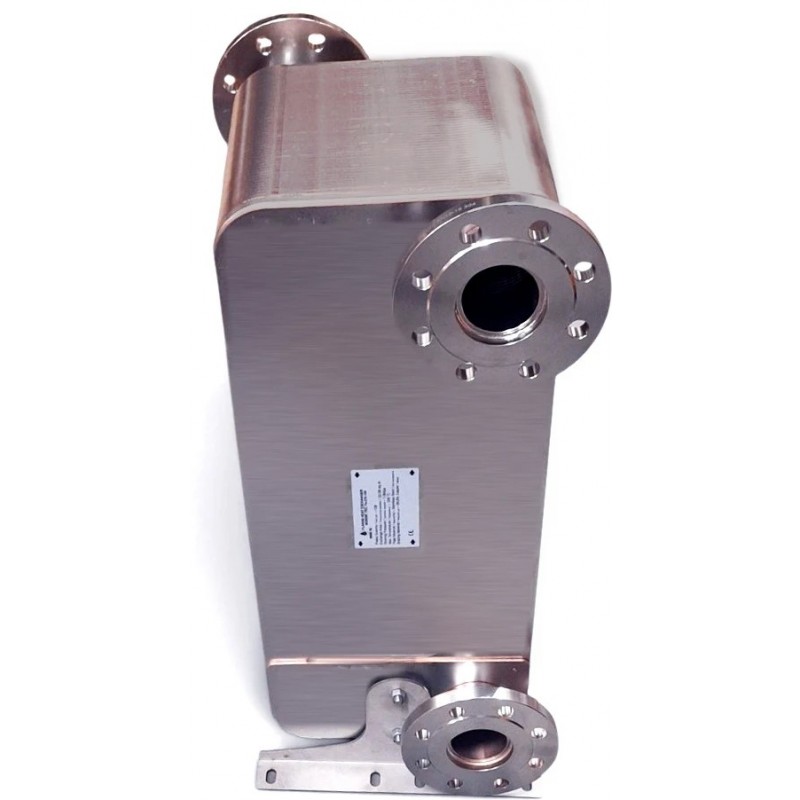

Two flanges on the front plate (F2, F4) and two on the rear plate (Q1, Q3). Each circuit is connected from a different side – giving a clear pipe layout in the boiler room.
19.74 m²
Large heat transfer area
94 corrugated plates of 0.210 m² each create turbulent flow. The result is efficient heat transfer with a comparatively low pressure drop. The 94-plate model has an approx. 18% larger heat transfer area than the Fa-210-80 and 47% larger than the Fa-210-64 – with the same DN65 connections.
Technical data Fa-210-94
| Number of plates |
94 |
| Connections |
4 × DN65 flange (2.5"), EN 1092-1 type 01, PN10/PN16 |
| Heat transfer area |
19.74 m² (0.210 m² / plate) |
| Nominal flow rate |
120 m³/h |
| Operating pressure / test pressure |
10 bar / 20 bar |
| Temperature range |
-190 / +225 °C |
| Plate material |
Stainless steel 316, thickness 0.4 mm |
| Brazing material |
Copper 99.9% Cu, brazed in a vacuum furnace |
| Flow arrangement |
Counter-current |
| Dimensions (W × H) |
319 × 736 mm, footprint with support legs 358 mm |
| Connection spacing |
188 × 603 mm |
| Depth |
240 mm (±3 mm) |
Dimensions in mm. F2/F4 – front connections, Q1/Q3 – rear. The depth depends on the number of plates (NP).
Applications of the Fa-210-94
✓ District heating substations and system separation of heating circuits in large buildings
✓ Boiler rooms in residential, commercial and industrial buildings
✓ Domestic hot water heating with high hot water demand
✓ Water–water media or water with added glycol
Installation step by step
1 Plan a location with access from both sides. The connections are at the front and rear, so the heat exchanger cannot stand directly against a wall like a threaded Ba series model.
2 Place the heat exchanger on the support legs on a level floor or a foundation.
3 Connect the circuits in counter-current – using DN65 counter flanges according to EN 1092-1, with gaskets and bolts for PN16.
4 Install strainers and shut-off valves, so that the heat exchanger can be easily cleaned of limescale and deposits.
The complete Fa-210 series
Models up to 108 plates have DN65 flanges, from Fa-210-120 upwards DN80 flanges (3").
| Model |
Plates |
Connection |
Area |
Depth |
| Fa-210-64 |
64 |
DN65 |
13.44 m² |
168 mm |
| Fa-210-80 |
80 |
DN65 |
16.80 m² |
207 mm |
| Fa-210-94 ◀ |
94 |
DN65 |
19.74 m² |
240 mm |
| Fa-210-108 |
108 |
DN65 |
22.68 m² |
275 mm |
| Fa-210-120 |
120 |
DN80 |
25.20 m² |
303 mm |
| Fa-210-132 |
132 |
DN80 |
27.72 m² |
332 mm |
| Fa-210-144 |
144 |
DN80 |
30.24 m² |
361 mm |
| Fa-210-156 |
156 |
DN80 |
32.76 m² |
390 mm |
Before ordering – important limitations
• For liquid-liquid circuits only: the heat exchanger is not intended for gases, F-gases or refrigerants.
• No media that attack stainless steel or copper, e.g. untreated water, well, rain, river or salt water, demineralised water and water with pool chemicals.
• The Fa-210 is not intended for heating swimming pools.
• With slow-responding heat sources (e.g. a fireplace with a water jacket), an undersized heat exchanger may lead to overheating of the system. If in doubt, ask us for a selection.
Frequently asked questions
How does the Fa-210 differ from the Ba series heat exchangers?
The operating principle is identical. The Fa-210 has flanges instead of threads and connections on both sides – and it is the largest Nordic Tec series.
Which flanges fit the Fa-210-94?
DN65 counter flanges according to EN 1092-1 with nominal pressure PN10 or PN16 – plate flanges (type 01) or weld neck flanges (type 11). Both have the same connection dimensions.
What does the designation Fa-210-94 mean?
“Fa” stands for a stainless steel plate heat exchanger with flange connections, “210” for 0.210 m² of heat transfer area per plate and “94” for the number of plates.
Not sure which model is right?
Send us the capacity and the circuit temperatures – we will select the right heat exchanger for your system.
