Shower Drain LINE Nordic Tec for a batroom
Shower Drain LINE by Nordic Tec 60-100 cm
Shower Drain LINE Nordic Tec for a batroom
Shower Drain LINE by Nordic Tec 60-100 cm

Shower Drain LINE 60-100cm

NORDIC TEC linear drain with Line pattern

The shower drain with Line cover - beautiful pattern for your wetroom.

Possible length: 60-100 cm

This product is offered only in B2B.
Our MOQ are very moderated and adjusted to smaller companies as well.
Free B2B deliveries to FR, DE, BE, LU, NL, DK, FI, EE, LV, LT, CZ, SK, RO, PL, SI, CRO
To get a quote please contact us Shower drains contact Nordic Tec

Reference: C02-100N
Condition New

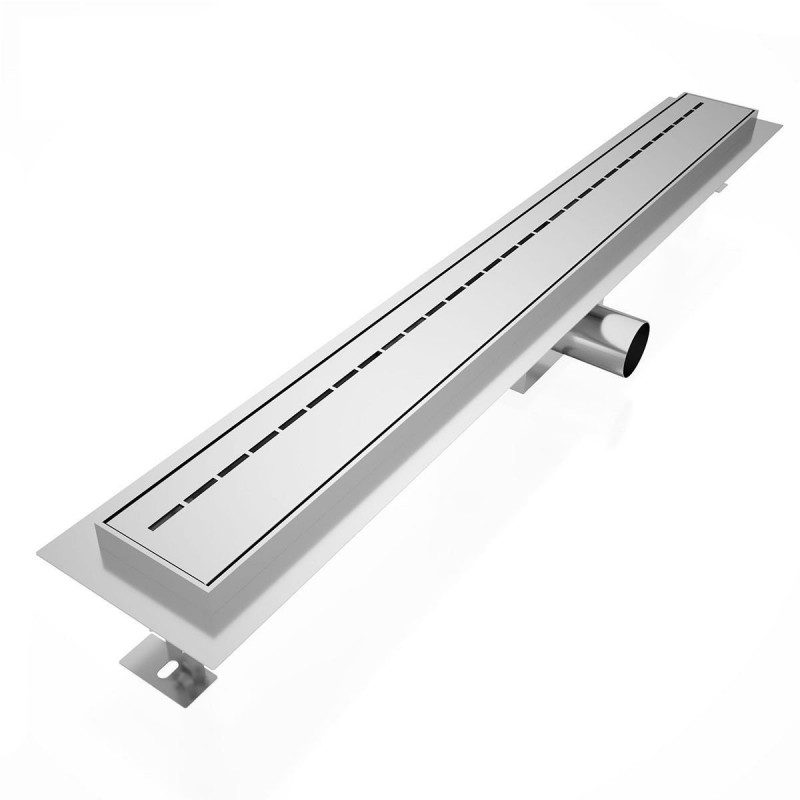

This shower drain kit with a LINE cover includes:

- steel linear drain
- 1.5mm thick grille, much thicker than most manufacturers (who offer 1.2mm or 1mm thickness)
- low steel siphon with a steel (not plastic) sedimentation and full equipment with a DN40 outlet, the installation height of the siphon (to the flange) is only 52mm
- additional PVC pipe - DN40/50
- leveled steel feet for proper drain setting (avoid plastic feet!)
- waterproof membrane necessary for proper installation and subsequent use

Technical details:

  • Width - 7cm
  • Length - 60-70-80-90-100cm
  • Stainless Steel AISI304
  • Grille made of scratch-resistant hardened steel with 1.5 mm thick damping spacers (enabling silent use)
  • Steel siphon with an installation depth of 52mm (measured to the flange), full dimensions on the technical drawing presented below
  • The drain is surrounded by a steel mounting flange, which makes it easier to cover the drain with a tile or a tile

Shower drain technical drawing Line

C02-100N
New
No reviews
