Pump station Pump group DN25 130mm

     with polypropylene insulation

     with ball valve with butterfly handle

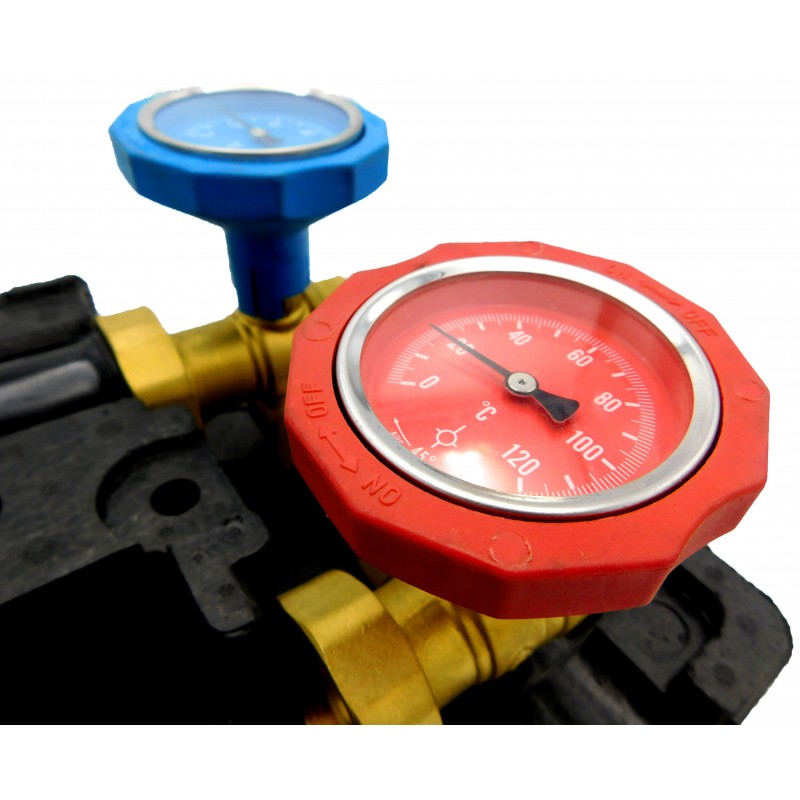

     with two thermometers, for supply and return in intuitively selected colors, for warm and cold medium
     with two ball valves - adjustable handles / thermometers
     designed for a pump with dimensions of 130mm (The set does not include the pump)
     The set also includes fixing elements, such as wall plugs with a length of 13.5 cm
     The set includes brass fittings and gaskets for connecting the pump (2 pcs.)

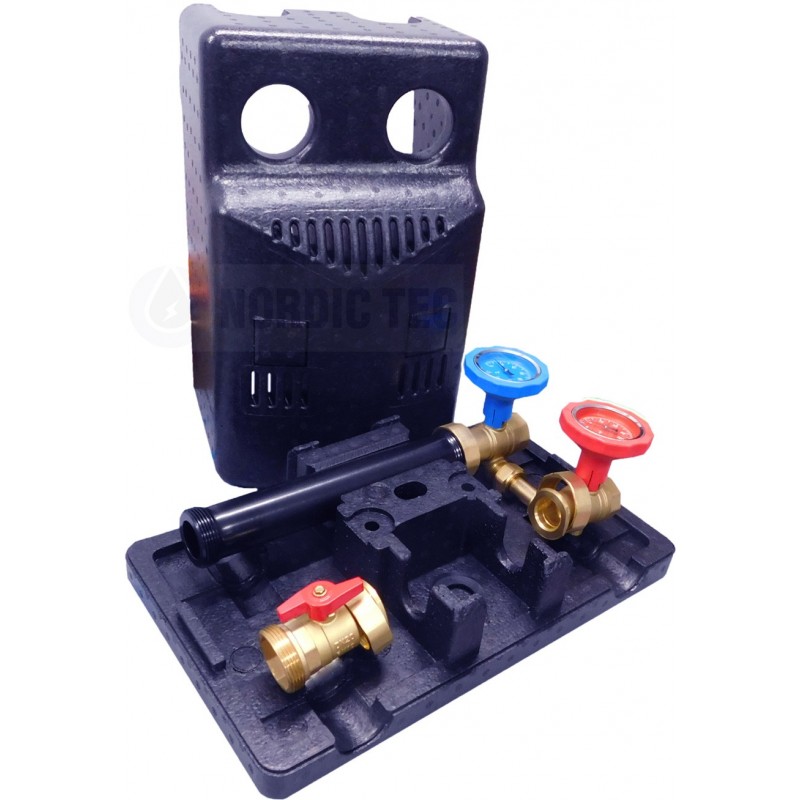

• Pump group 130 with polypropylene insulation
• With built-in check valve - non return valve (cold side)
• With a ball valve with a butterfly handle
• With two thermometers, for flow and return in intuitively chosen colors for warm and cold medium
• With two ball valves - adjustable with handles/thermometers
• Pump station designed for a pump with dimensions of 130mm (The set does not include the pump)
• The set also includes mounting elements, such as wall expansion plugs 13.5cm long
• The set includes brass union nuts and gaskets for pump connection (2 pcs.)

Group Dimensions:

• 370x 255mm

Dimensions and thread characteristics:

• inlet - 6/4" - Male Thread
• outlet- 1" - Female Thread

Read more about pump groups on our blog.

Pump Stations 130 - How Do They Work? A Short Description | Nordic Tec

We use pump stations (also called: pump groups) in installations that are to be divided into several heating circuits, where each requires constant temperature regulation and potentially a different temperature (e.g., central heating (CH) and domestic hot water (DHW) circuits, or radiator and underfloor heating circuits). In such cases, pumping groups enable, for example, the cooperation of low-temperature underfloor heating loops and radiators, which require higher temperatures. Therefore, it's often hard to imagine a modern CH system without a pumping group.

Thanks to pump stations, we can also connect two different heat sources - for example, a condensing boiler and a traditional eco-pea coal boiler, which, thanks to the group, gains protection against so-called cold return. An additional advantage of groups is space savings in the boiler room and excellent insulation. Installing a ready-made group also saves time compared to attempting to create a similar solution yourself using valves.
