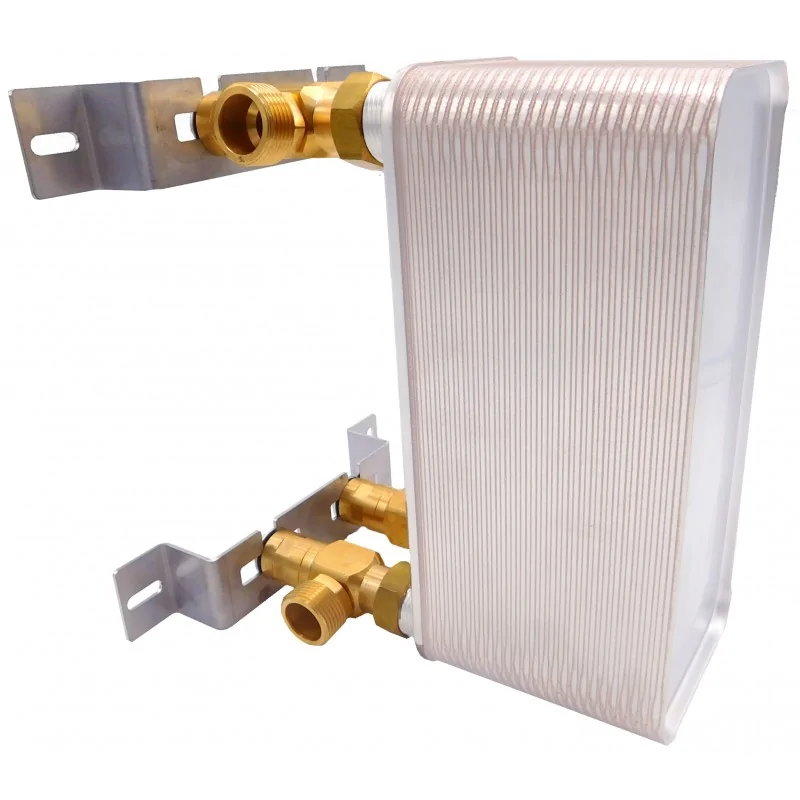

Plate Heat Exchanger NORDIC Ba-27-60 1 1/4" 330kW

Plate Heat Exchanger with 60 plates and connections DN32 for Heat Pumps and other heating devices

Classic liquid to liquid brazed plate heat exchanger often use to cooperate with heat pumps - Nordic Tec Ba-27-60

Plate Quantity: 60 pieces
Connections: 1 1/4" BSP
Heat Exchange Area: 1.620m²

60-plate heat exchanger for heating systems / domestic hot water or for refrigeration. The Ba-27-60 plate heat exchanger is also suitable for connecting heat pumps to heating systems in single-family homes.

Reference: NT Ba-27-60
Condition New
Accessories for PHE
  • Exchanger only (without accesories)
  • with Wall-Mounting+Fittings
  • With Thermal Insulation
  • Full Set (with Insulation&Wall-mounting with Fittings)
On stock
€309.99
VAT included



Heat Exchanger Nordic Tec Ba-27-60 - 4x 1 1/4", 60 plates


Plate Heat Exchanger 1 1/4" for a heat pump Ba-27-60

Technical details:

- Stainless Steel S316L, brazed with 99,9% Cu

- Connections: 4x 5/4", BSP

- Working Pressure - <30 bar

- Test Pressure - 45-60 bar

- Max. temperature +230°C

- Flowrate - 12 m³/h

- Heat Exchange Surface - 1.620 m²



Dimensions:
Ba-27 heat excahnger sizes Nordic
(A) - 286 mm
(B) - 116 mm
(F) - 151 mm
(C) - 234 mm
(D) - 63 mm


In DOWNLOAD section you get the data sheet of the unit.

Most common applications of the 60-plate Ba-27-60 heat exchanger include:

  • Connecting heat pumps (with or without a buffer) to heating systems, separating the heat pump circuit from the rest of the installation, including systems with glycol.
  • Suitable for both monoblock and split heat pump setups. In relatively high-temperature systems (radiators), it can handle heat pumps up to 12 kW.
  • Heating systems with coal-fired boilers up to approximately 60 kW, and with eco-pea coal boilers up to around 70 kW.
  • Combining open and closed circuits to separate old worn-out parts of the installation from new heat sources, such as condensing boilers.
  • Collaboration with pellet boilers.
  • Collaboration with glycol heaters with power even up to 60-100 kW depending on the heat source providing the supply.
  • Industrial refrigeration applications, such as oil cooling, serving as a cooler.
  • Food industry, including pasteurization and media chilling, such as cooling wort in home or industrial brewing.
  • Passive cooling in cooperation with heat pumps in single-family homes or commercial premises.
