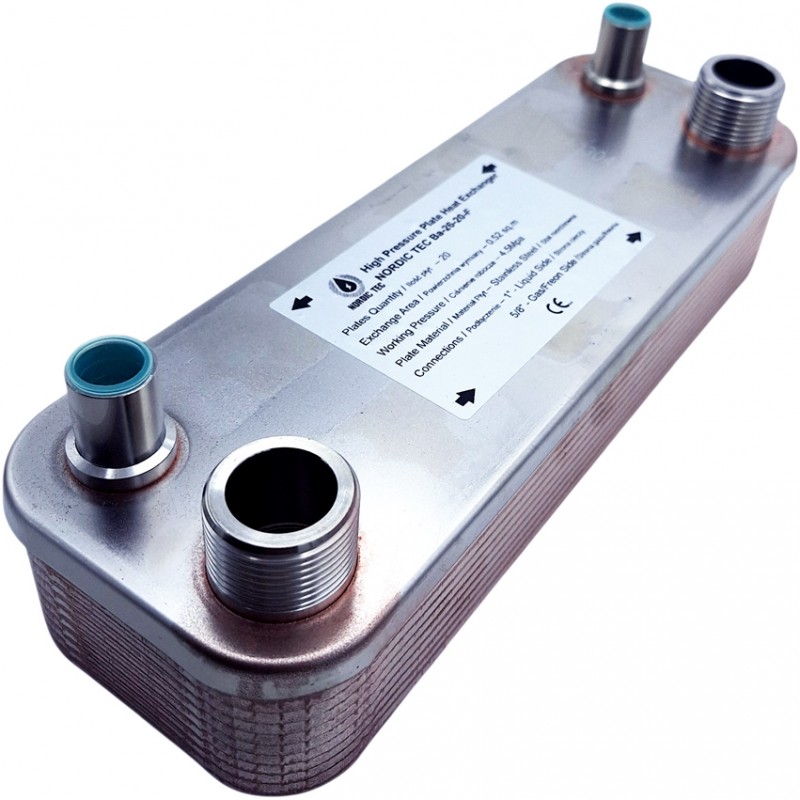

Freon Heat Exchanger - 20-Plate Ba-26-20-F for Refrigerants

This heat exchanger is designed for installations where one of the media is a gaseous refrigerant (such as Freon or a similar gas), while the other medium is a more traditional liquid medium - water or a water-glycol mixture. It is a heat exchanger tailored for a narrower range of applications with these specific media. The term "Freon heat exchanger" is used colloquially due to the most common medium used, but it can also work with media that have properties similar to Freon.

  • Number of plates: 20 pieces
  • Connections - Gas side: 5/8" tube (φ15) | Liquid side: 1"
  • Heat exchange surface area: 0.520 m²
  • Heat pump unit / air conditioner capacity: 3-5 kW
  • Working pressure on the gas side: up to 45 bar (the key technical parameter that distinguishes it from traditional liquid-to-liquid heat exchangers is the higher allowable working pressure - up to 4.5 MPa).

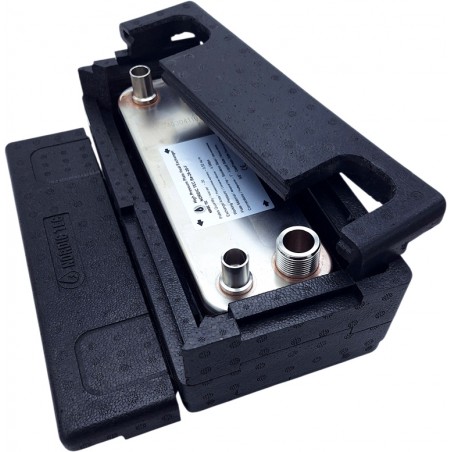

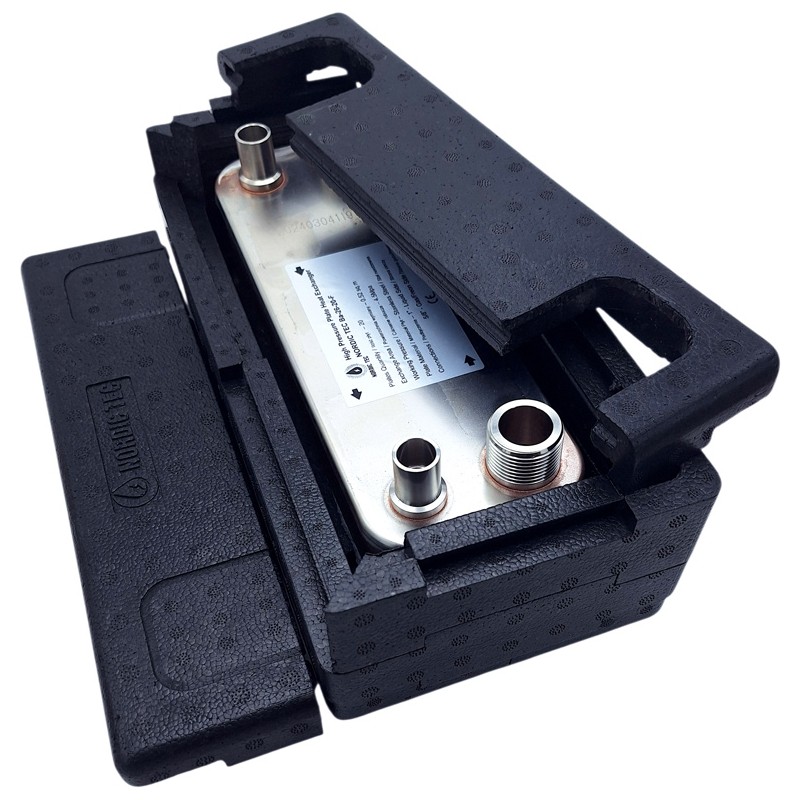

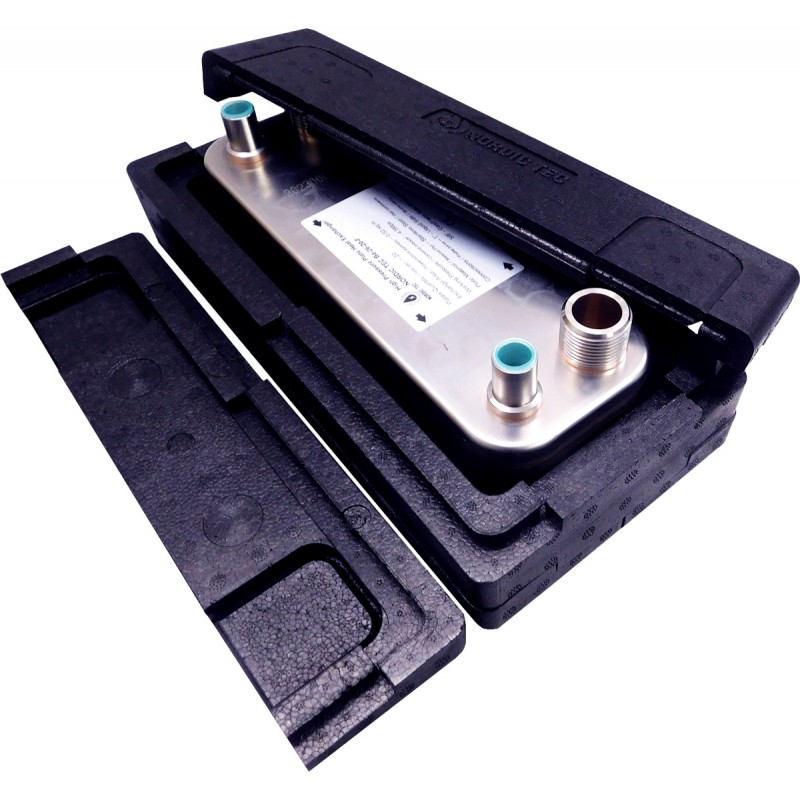

The 20-plate Freon heat exchanger is also optionally available with thermal insulation, which increases heat transfer efficiency by reducing heat loss to the surroundings.

☑️ Optionally the solder nippels/adpaters to SAE thread are available on our shop
✅ Free delivery in: FR, IT, ES, DE, PL, SI, AT, DK, NL, BE, CZ, LV, EE, LT

Reference: EU-Ba-26-20-F
Condition New
Accessories for PHE
  • Exchanger only (without accesories)
  • With Thermal Insulation
On stock
€159.99
VAT included



Gas Heat Exchanger - for Heat Pumps 5 kW

Freon Plate Heat Exchanger for Heat Pump (Designed for Evaporator/Condenser Operation).

This device is suitable for use as a condenser in heat pumps, air conditioning units, and similar systems. The heat exchanger can operate with refrigerants like R404A, R32, and similar ones.

Technical Details:

  • Material: Stainless Steel 316L, vacuum-brazed with Cu
  • Heating Capacity for Heat Pump / Air Conditioner / Refrigeration Unit: 3-5 kW
  • Refrigerant / Gaseous Media Connections: ϕ15 - 5/8" for brazing / hard soldering
  • Traditional Liquid Media Connections: 1" - DN 25
  • Operating Pressure: Up to 45 bar (this is maximal allowable pressure)
  • Pressure Tests before Commissioning: > 60 bar
  • Flow Rate: 12 m3/h
  • Connection Method: Counterflow


Heat exchange surface area of the Ba-26-F heat exchangers for Freon

Ba-26 series plate exchangers for freon - surface

As can be seen in the above graph, the 20-plate Ba-26-20-F Freon heat exchanger is the smallest model in the Ba-26 series, which is entirely designed for gas-liquid heat exchange and classified as high-pressure (45 bar or 4.5 MPa). It is the smallest gas heat exchanger in our catalog. It has a plate surface area of 0.52m², which translates to effective compatibility with heat pumps typically rated at 3-5 kW, depending on the input parameters. Similar is the expected capacity of refrigeration units or air conditioners, which can be effectively handled by this model.

If the heat exchange surface area of approximately 0.52m² is too small for your application, please check the larger models in the same series, as shown in the graph above. Among them are the Freon heat exchangers Ba-26-34 with 0.88m², Ba-26-50 with 1.3m², and Ba-26-60 with 1.56m². If these devices are still too small or if you'd like to explore larger heat exchangers with a similar purpose, consider the larger series of Freon heat exchangers - Ba-68-F.


Dimensions:
Gas HEat Exchanger Dimensions Ba-26-20
(A) - 308 mm
(B) - 106 mm
(F) - 60 mm
(C) - 250 mm
(D) - 50 mm

EU-Ba-26-20-F
