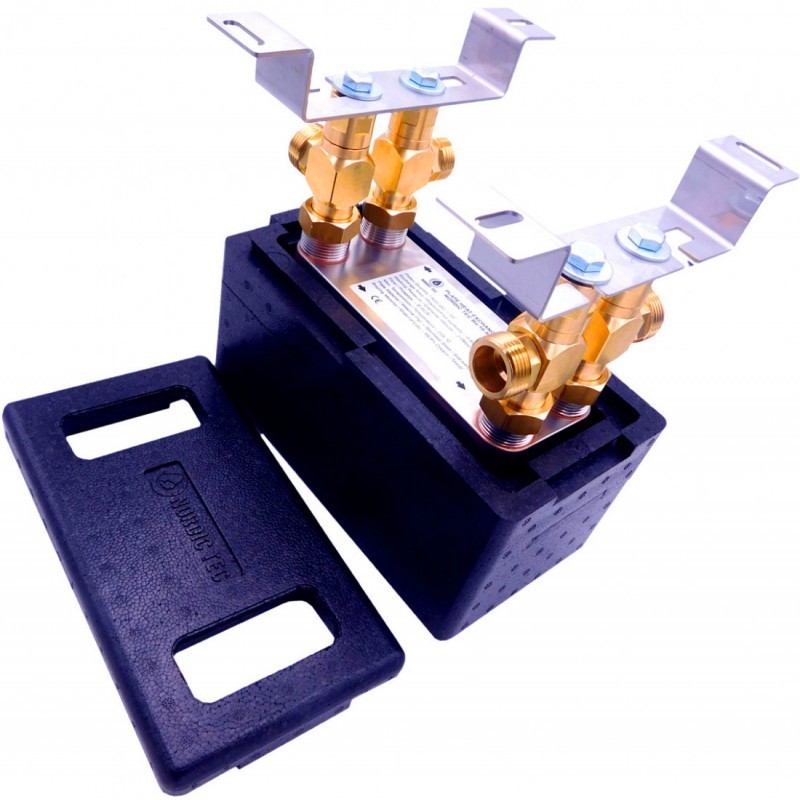

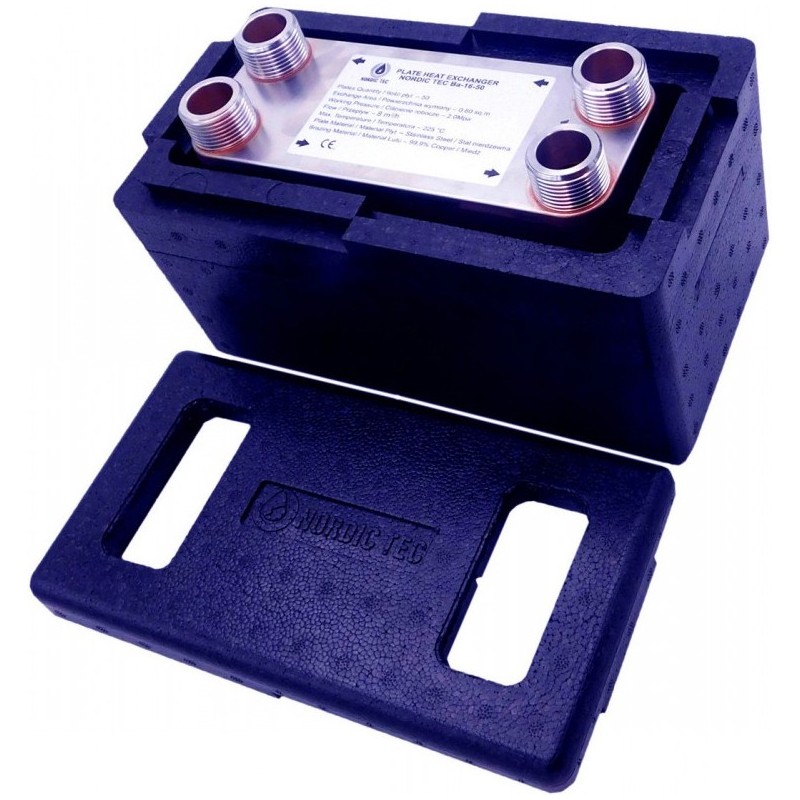

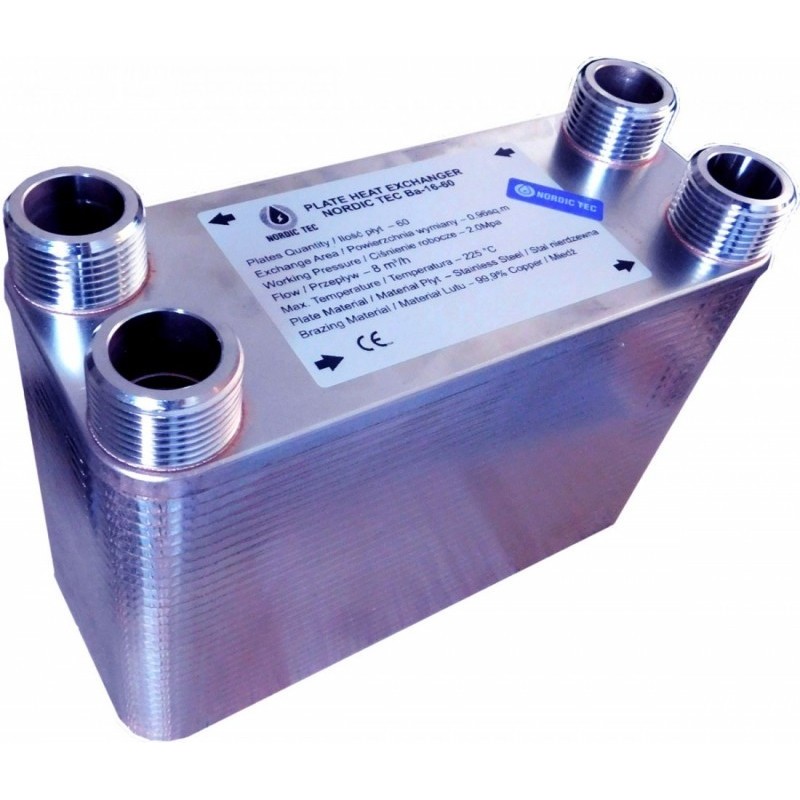

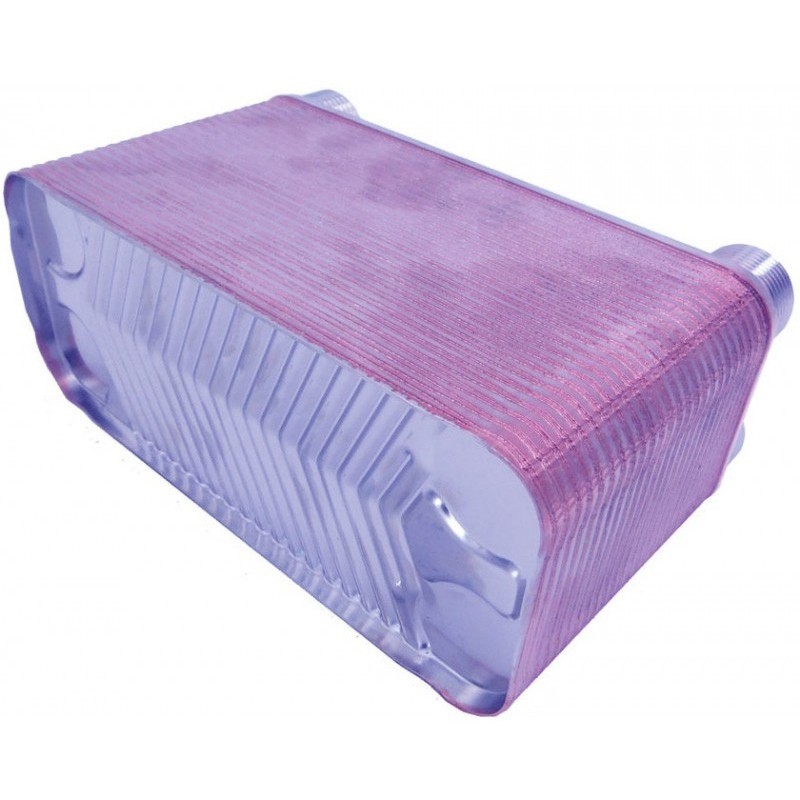

Plate Heat Exchanger NORDIC Ba-16-50 1" 175kW
search
  • Plate Heat Exchanger NORDIC Ba-16-50 1" 175kW

Plate Heat Exchanger NORDIC Ba-16-50 1" 175kW

€199.99
VAT included

Plate Heat Exchanger

NORDIC TEC

Model: NT Ba-16-50

Plate Q'ty: 50 pcs.
Connections: 1" BSP
Heat Exchange Area: 0.800m²

Accessories for PHE
Quantity

Heat Exchanger

Nordic Tec Ba-16-50
4x 1", 50 plates

Ba-16-40jpg

Technical details:

- Stainless Steel S316L, brazed with 99,9% Cu

- Connections: 4x 1", BSP

- Working Pressure - <20 bar

- Test Pressure - 40 bar

- Max. temperature +230°C

- Flowrate - 8 m³/h

- Heat Exchange Surface - 0.800 m²



Dimensions:
http://massivedrive.pl/images/2015/02/15/schemat_wymiarowy_-_wymiennik.jpg
(A) -
220 mm
(B) -
90 mm
(F) -
120 mm
(C) -
180 mm
(D) -
52 mm


In DOWNLOAD section you get the data sheet of the unit.

NT Ba-16-50
