22-plate heat exchanger with a nominal power of up to 100 kW (industrial high parameter) and 1" connection.
☑️ Fast delivery of a plate heat exchanger in the most European countries
✅ Free delivery in the following countries:
IT, ES, FR, AT, DE, NL, PL, DK, CZ, BE, LT, LV, SI, EE

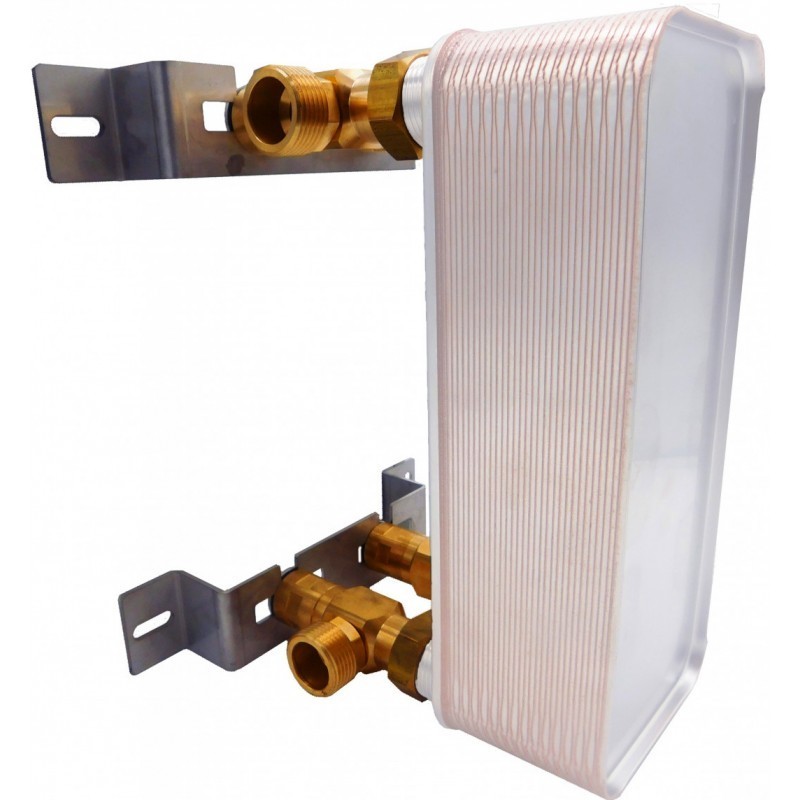

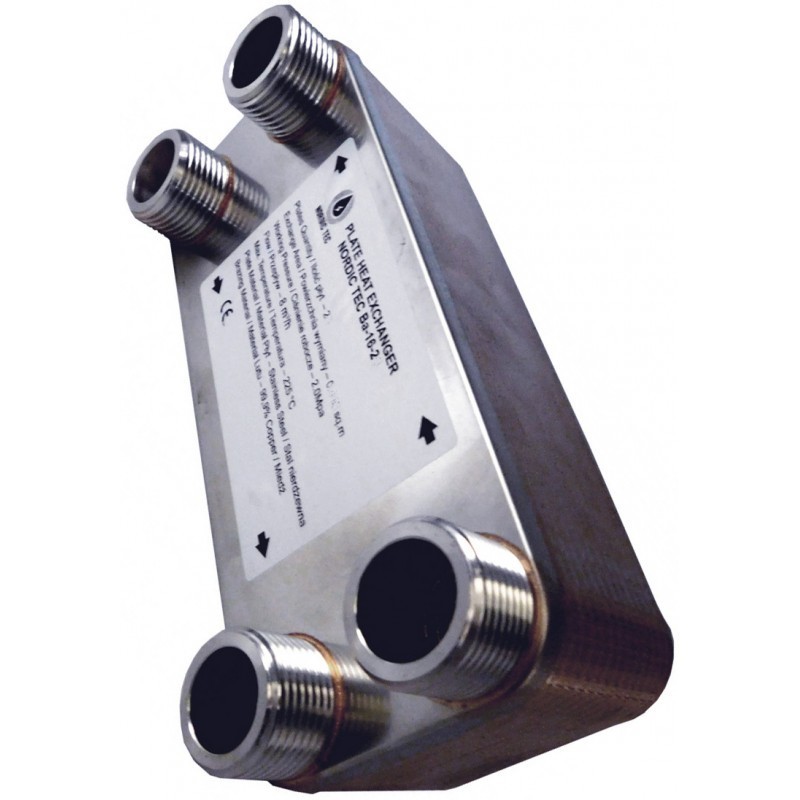

Nordic Tec Ba-16-22 Plate Heat Exchanger
1" connections, 22 plates
The device is mainly used for heating applications, less frequently for cooling purposes
Technical details - Heat Exchanger for heating systems Ba-16-22
- Stainless Steel S316L, brazed with 99,9% Cu
- Connections: 4x 1", BSP
- Working Pressure - <20 bar
- Test Pressure - 40 bar
- Max. temperature +230°C
- Flowrate - 8 m³/h
The heat exchange surface area of the 22-plate exchanger is 0.350 m². This plate surface allows for the operation of small heating devices such as boilers or fireplaces with a capacity typically up to 15 kW, and in some cases up to 20 kW. The Ba-16-22 plate heat exchanger is one of the smallest exchangers in the Ba-16 series, as shown in the chart above. If you need a larger plate surface, we encourage you to review the entire Ba-16 series, focusing on models with a higher number of plates. If you have any doubts about selecting the right exchanger, our team will be happy to help – please feel free to contact us.
If you are considering using a model with a slightly larger surface area, you will also find larger models from the Ba-16 series in our shop, which are visible in the diagram – for example, Ba-16-32 1" or Ba-16-60 with 60 plates.
A series of Ba-16 heat exchangers - among them, a PHE Ba-16-22 is a good alternative when a small exchanger with a not very large heat transfer area is needed in the facility, but for some reasons requiring flows of solid intensity, and therefore also connections of min. 1". The Ba-16-22 model just fulfils this need - it has a nominal flow up to twice as much as similar to 3/4" exchangers. It works great, e.g. in buildings with an old installation, e.g. gravitational working, due to the fact that it generates relatively low resistance to flows.
