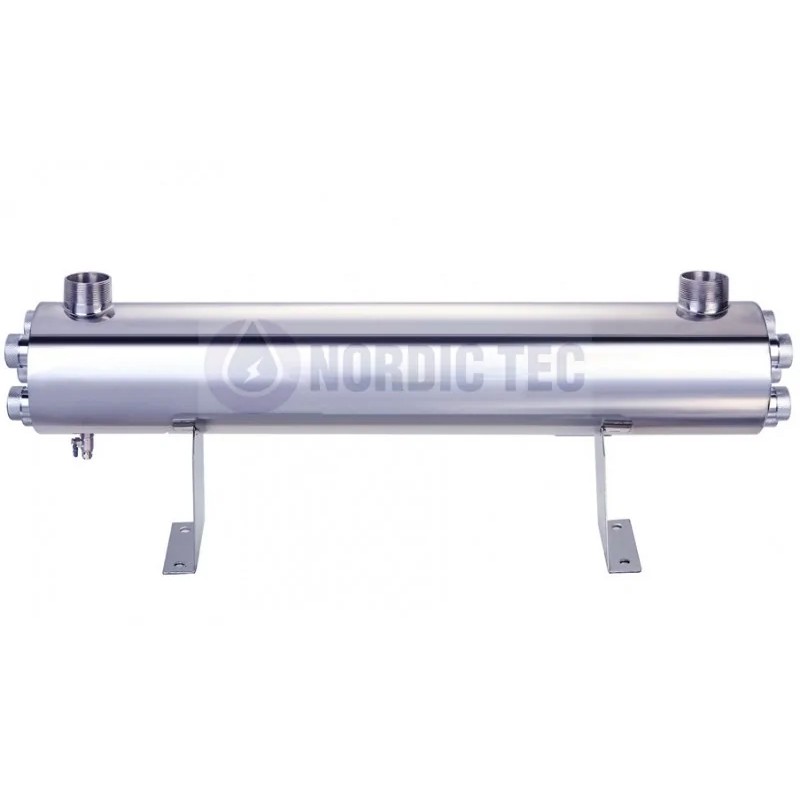

UV Water Steriliser UV550W-PH 550 W 120 GPM 4"

UV Water Steriliser UV550W-PH 550 W 120 GPM 4"

Large UVC Lamp - NORDIC TEC / PHILIPS 550 W UV Filter with 4" for Water

Large industrial UV Lamp, Water Filter - with a power of 550W, 4-inch connection, and high flow rate.

A large filter for industrial applications, possessing a PZH certificate (suitable for use in public or commercial facilities). The filter features 10 lamps, i.e., 10 UV-C bulbs - each with its own independent power supply, enabling modulation of the UV lamps' power to the specific needs of a given facility.

  • Large Nordic Tec UV550W-PH 120 GPM UV Water Filter – Water treatment against biological and bacterial contamination
  • UV Lamps – 10x PHILIPS TUV 55W G55 T8 (lifespan <8–10,000 hours), each with an independent power supply system
  • Material: Stainless Steel S304 | INOX
  • Dimensions of the stainless steel chamber: 965 mm x ⌀275 mm
  • Recommended water temperature range: from +2 to +45°C (higher water temperatures are also permissible)
  • Operating voltage: 220–240V / 50–60Hz
  • ☑️ Water Connections: 4" | DN100
  • ✅ Flow rate for a UV dose of 400 J/m² (potable water): 350 l/min

☑️ Fast & Free delivery in DE, AT, NL, FR, BE, ES, IT, DK, PL, CZ, LT, LV, SI, EE

Reference: UV-Waterfilter-NT-550W-PH
Condition New
On stock
€1,949.99
VAT included



Large 550W DN100 Industrial Water UV Sterilizer

Industrial UV sterilizer for potable and utility water in large facilities - NORDIC TEC UV 550W-PH
complete installation set of a 550 W water sterilization system with 4-inch connections, i.e., DN100

More information about the UV filter and the parameters of the lamps used:

  • Reaction chamber - steel 965mm x ⌀275mm - SS304 steel type for use in buildings
  • Package shipping dimensions: 110x48x80cm
  • ✅ UV-C bulbs by PHILIPS model: TUV 55W G55 T8 - 10 pcs. - with a lifespan of approximately one year of continuous operation (8-10 thousand hours)
    Ultraviolet bulbs are readily available in online stores or larger electrical wholesalers, and are also easy to replace with other brands.
    This means no problems with finding replacement bulbs if needed.
  • Water connections in 4" size (DN100)
  • Nominal water flow
    36.0 m³/h - to ensure a UVC dose of 300J/m² - recommended for preventive sterilization
    21.0 m³/h - for a UVC dose of 400J/m² - recommended for potable water sterilization
  • Allowable pressure for the 550W UV filter - maximum 10 bar
  • Power supplies with a 230V grounding cable and operation indicator. Each of the 10 Philips bulbs has an independent power supply, which allows us to freely adjust the actual power and effectiveness of the lamp to our flow, e.g., by switching off any number of bulbs. Similarly, the burnout of 1 bulb does not cause the rest to stop working - making the device resistant to potential failures.
  • Bulb burnout indicator function via LED lights on the power supply

Direct exposure to UV radiation for eyes and skin is not recommended
Never operate a UV bulb when it is not enclosed in the steel reaction chamber
