Plate Heat Exchanger NORDIC Ba-16-26 1" 105kW

Plate Heat Exchanger for Heating or Cooling with 1" threads NORDIC TEC Ba-16-26

105 kW heat exchanger - nominal power (for so-called high parameters). 26-plate heat exchanger, with an optional purchase of insulation and suspension (mounting bracket for 1-inch heat exchangers).

  • Plate Q'ty: 26 pcs.
  • Connections: 1" BSP
  • Heat Exchange Area: 0.416m²
  • Max. working Pressure - <20 bar

☑️ Fast delivery of PHE in most European countries - just in few days.
✅ Free shipment in FR, ES, IT, AT, DE, NL, BE, PL, DK, CZ, LT, LV, SI, EE

Reference: NT Ba-16-26
Condition New
Optional variants of a plate heat exchanger
  • The plate heat exchanger ONLY (without accessories)

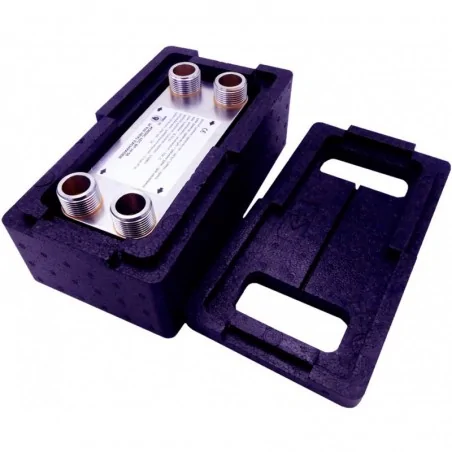

  • Plate heat exchanger with Thermal Insulation

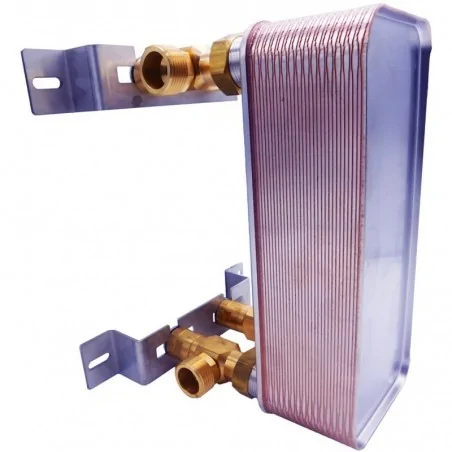

  • Heat exchanger with Mounting Kit and Fittings

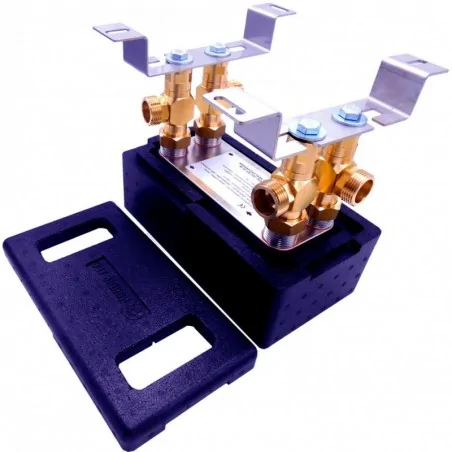

  • FULL-SET (with Insulation and Mounting Kit with Fittings)
On stock
€121.99
VAT included

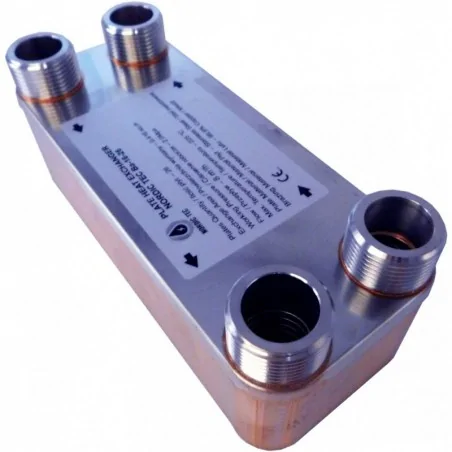

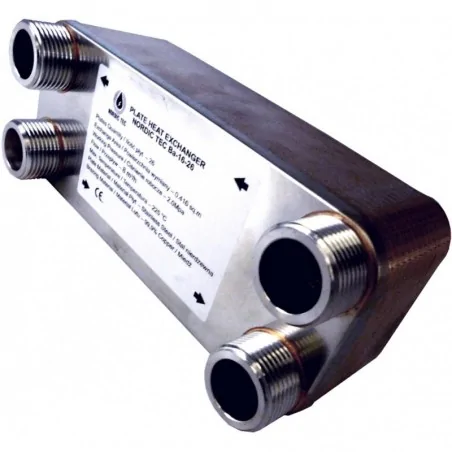

Heat Exchanger Nordic Tec Ba-16-26  - 4x 1", 26 plates

Nordic Tec Ba-16-26 heat exchanger with 26 plates & 4x 1" connections

Plate Heat Exchanger with 26 plates

Technical details - Heat Exchanger Nordic Tec Ba-16-26:

  • Stainless Steel S316L, brazed with 99,9% Cu
  • Connections: 4x 1", BSP
  • Working Pressure - <20 bar
  • Test Pressure - 40 bar
  • Max. temperature +230°C
  • Flowrate - 8 m³/h

Heat Exchange Surface - Nordic Tec Ba-16-26 heat exchanger - 0.416 m²


Heat Transfer Area - Nordic Tec Ba-16-26


Dimensions:
PHE Size drawing Ba-16
(A) - 220 mm
(B) - 90 mm
(F) - 65 mm
(C) - 180 mm
(D) - 52 mm

The frequent question from customers regarding the Ba-16-26 heat exchanger is:

Does the 26-plate Ba-16-26 heat exchanger come in a version with internal threads?

Reply: Unfortunately, Nordic Tec offers only traditional external threads. We are not a manufacturer of heat exchangers as spare parts for gas boilers (which are characterized by internal threads). Such exchangers should be sourced through contact with dealers and distributors of gas boiler parts, preferably in authorized stores, even though they tend to have relatively high prices.
