Plate Heat Exchanger NORDIC Ba-16-26 1" 105kW

€119.99
VAT included

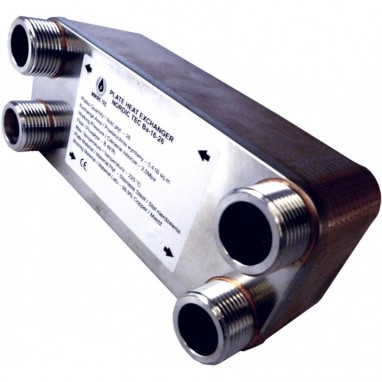

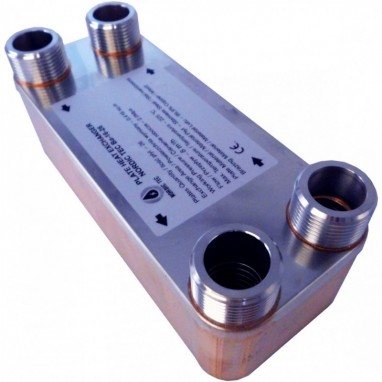

Plate Heat Exchanger

NORDIC TEC

Model: NT Ba-16-26

Plate Q'ty: 26 pcs.
Connections: 1" BSP
Heat Exchange Area: 0.416m²

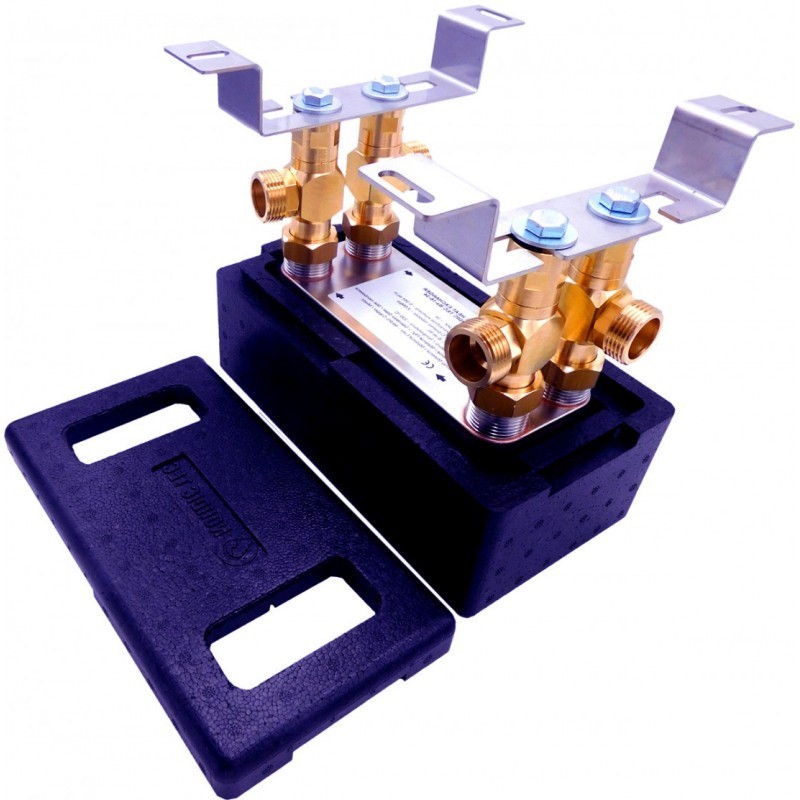

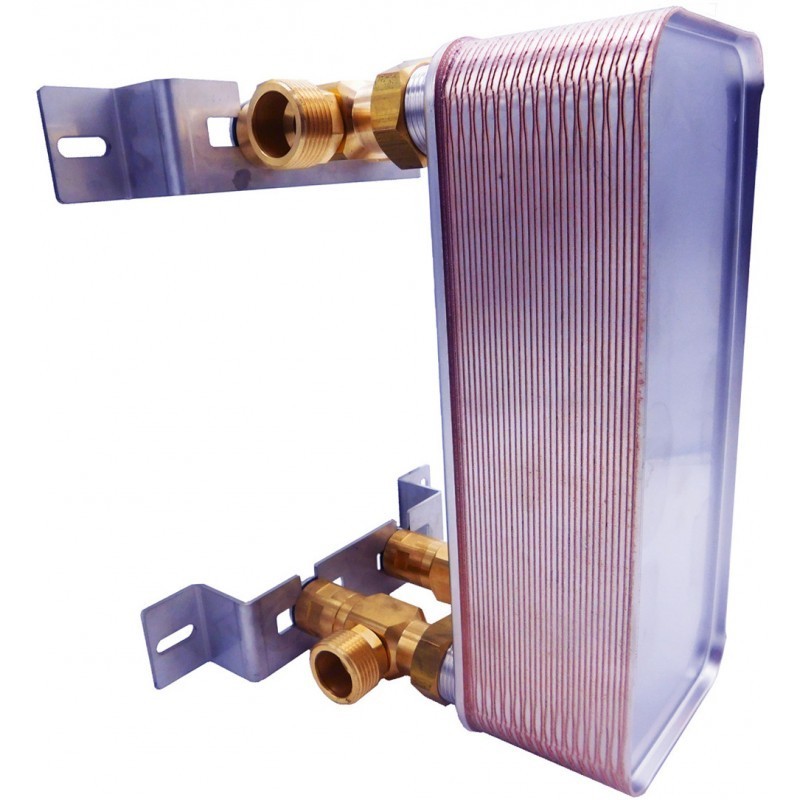

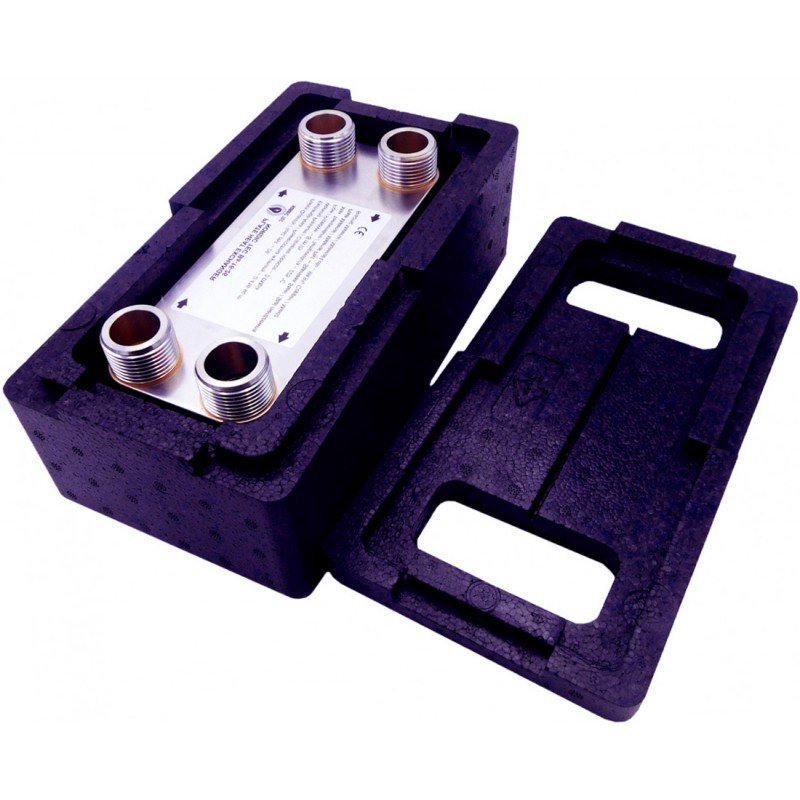

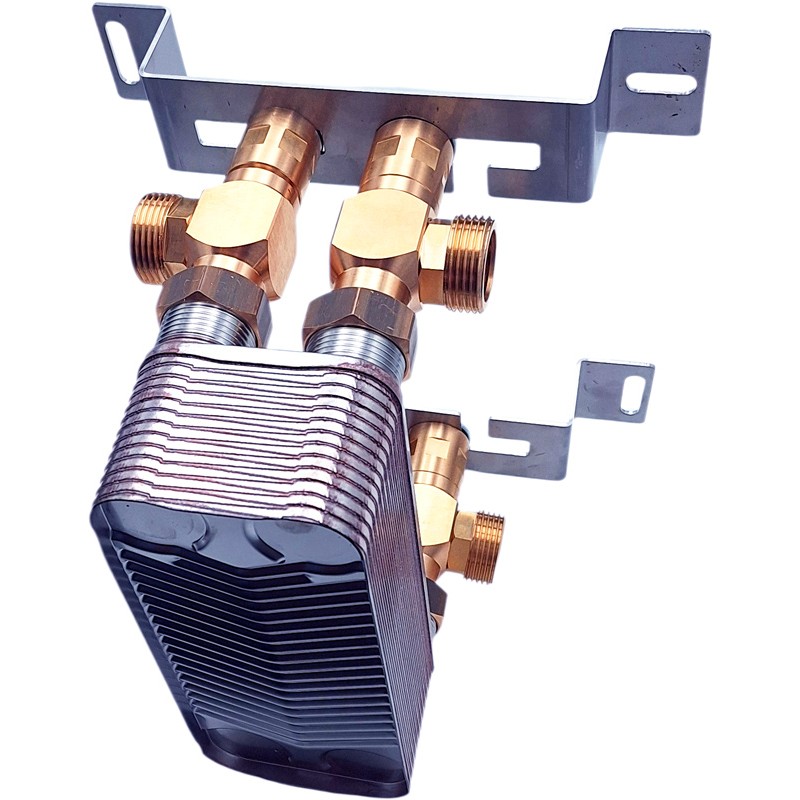

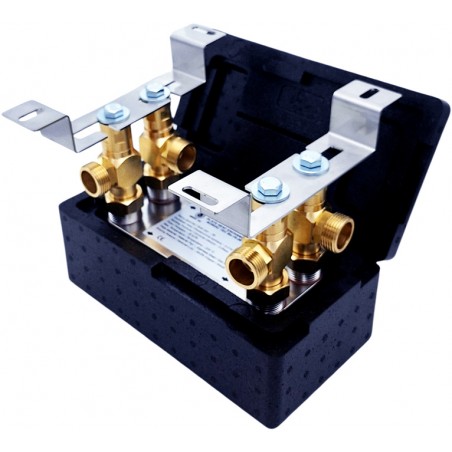

Accessories for PHE
Quantity

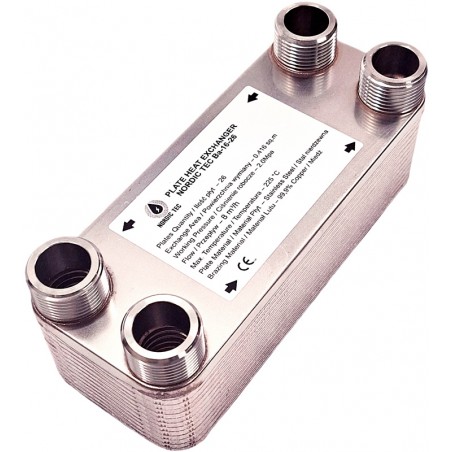

Heat Exchanger

Nordic Tec Ba-16-26
4x 1", 26 plates

Ba-12-30jpg

Technical details:

- Stainless Steel S316L, brazed with 99,9% Cu

- Connections: 4x 1", BSP

- Working Pressure - <20 bar

- Test Pressure - 40 bar

- Max. temperature +230°C

- Flowrate - 8 m³/h

- Heat Exchange Surface - 0.416 m²



Dimensions:
http://massivedrive.pl/images/2015/02/15/schemat_wymiarowy_-_wymiennik.jpg
(A) -
220 mm
(B) -
90 mm
(F) -
65 mm
(C) -
180 mm
(D) -
52 mm


In DOWNLOAD section you get the data sheet of the unit.

NT Ba-16-26
