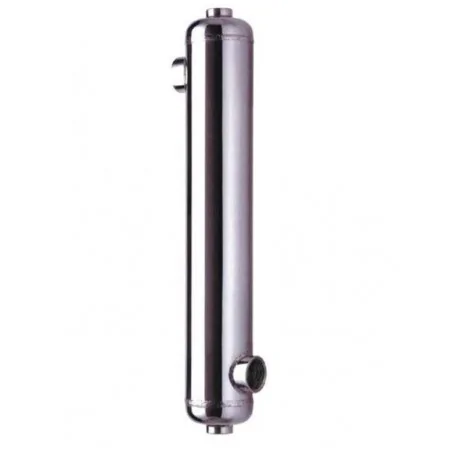

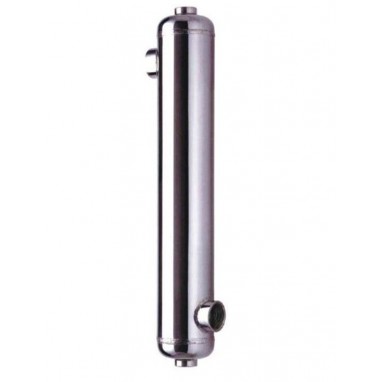

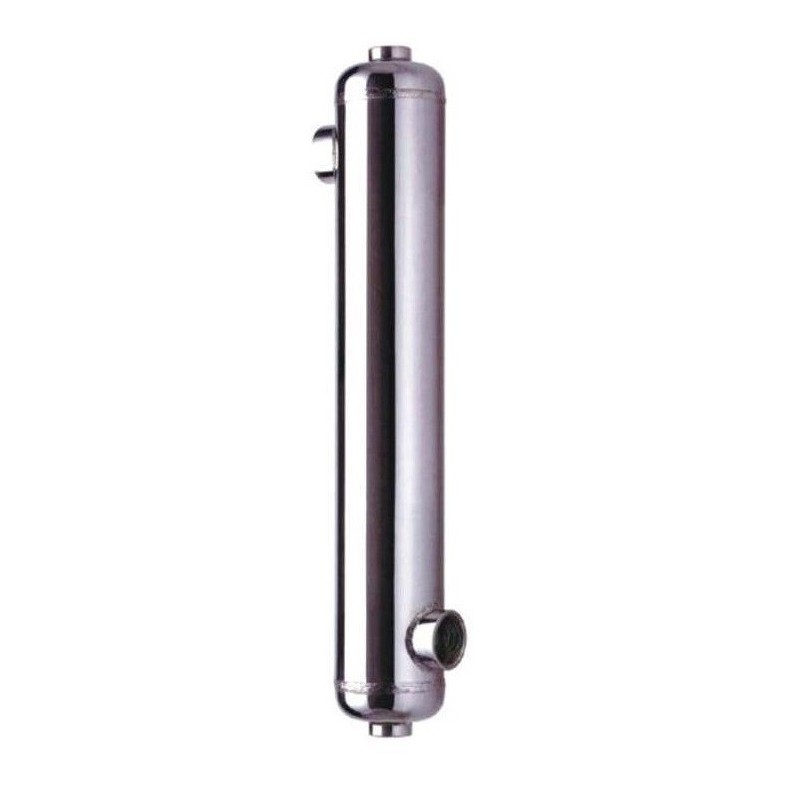

Pool Titanium Heat Exchanger NORDIC Tec B210-Ti 61 kW 210 kBTU/H

Titanium Heat Exchanger for Saltwater or Seawater Nordic Tec B210-Ti

61 kW Titanium Heat Exchanger for Pools, Ideal for Saltwater or Seawater

Rated Power: 60 kW (210,000 BTU/h)

• The Titanium Heat Exchanger B219-Ti achieves the so-called rated power when the fluids used are water & water (without glycol or antifreeze liquids) and when the temperature difference between the sides is 60.0 °C.
  If the difference between the heat transfer fluid and the heated fluid decreases, the actual heat transfer capacity ("kW") decreases according to the following scheme:
  - at 50 °C = 85 %
  - at 40 °C = 70 %
  - at 30 °C = 55 %


• If it is essential to use an antifreeze liquid such as glycol, the heat transfer efficiency will decrease by approximately 8-15% (estimate based on glycol concentration). This is an important aspect to consider when choosing a titanium heat exchanger for pools.

Heat Exchange Area: 0.440 m²
Material: Ti (Titanium Heat Exchanger)
Operating Pressure: < 6 bar

Connections:

• 4x 1 1/2 inch

Flow Rate:

• Heat Transfer Fluid: 35.0 l/min
• Heated Fluid: 242.0 l/min

Maximum Operating Temperature: up to 207 °C

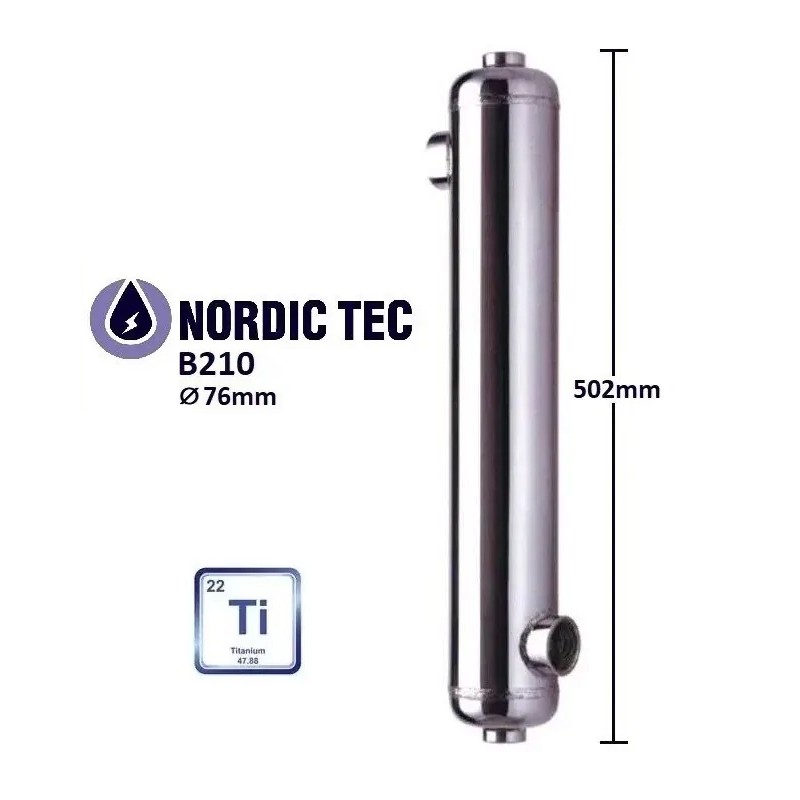

Connection of Titanium Shell and Tube Heat Exchangers B210-Ti

K1: Inlet of the Heat Transfer Fluid
K2: Outlet of the Heated Fluid
K3: Inlet of the Heated Fluid
K4: Outlet of the Heat Transfer Fluid

The connection of the titanium heat exchanger must be carried out according to the manufacturer's recommendations to ensure optimal performance and a long lifespan of the device. The heat exchanger can be connected to a heating or cooling system via suitable piping and corrosion-resistant fittings. It is important to consider the correct fluid flow and use compatible materials to avoid efficiency and durability issues. Additionally, the installation of control valves and filters is recommended to protect the heat exchanger from impurities and pressure fluctuations that could compromise its operation.

_______

• ☑️BLOG: Heat Exchangers for Pools – Which One to Choose?
• ✅BLOG: How Many mm is an Inch Thread and Other Information?

Titanium Heat Exchanger | Nordic Tec B210-Ti

The titanium heat exchanger is a device designed to efficiently transfer thermal energy between two fluids, made of titanium, a material with excellent corrosion resistance, particularly suitable for aggressive environments such as seawater or pools with chlorinated or saltwater. Thanks to its high thermal conductivity and durability, titanium heat exchangers are widely used in pool systems, chemical and pharmaceutical industries, and HVAC systems. Their construction ensures a long lifespan and high reliability, even under extreme operating conditions.
