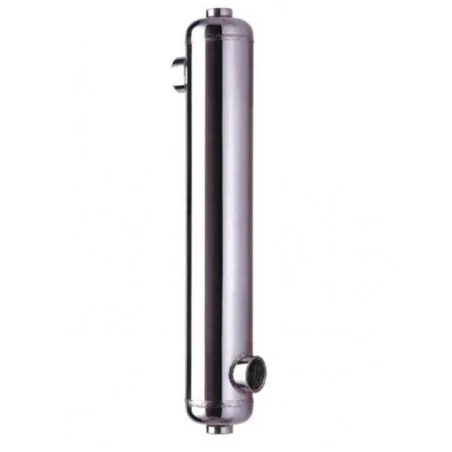

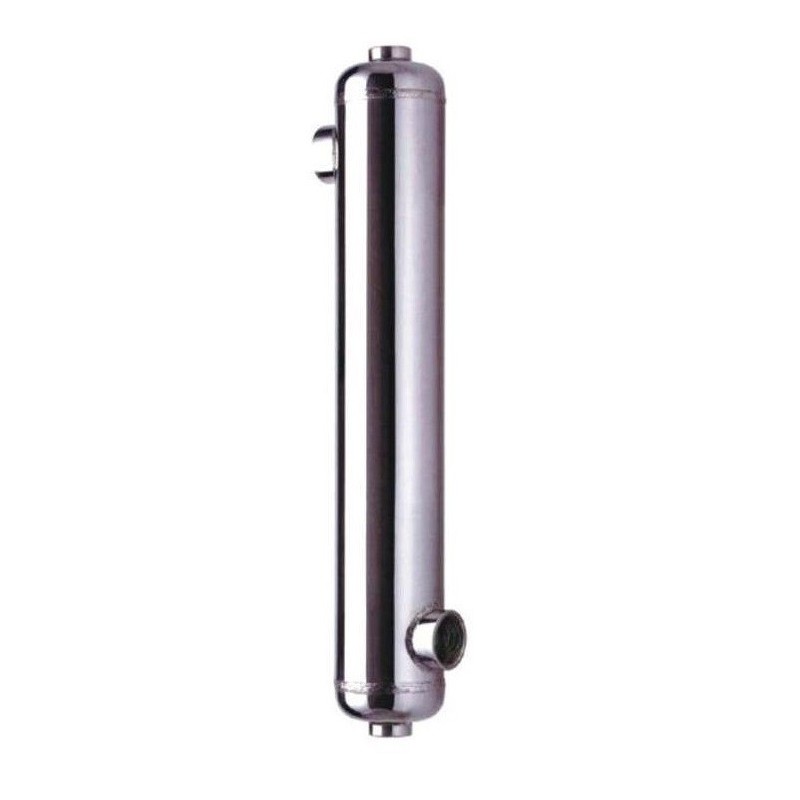

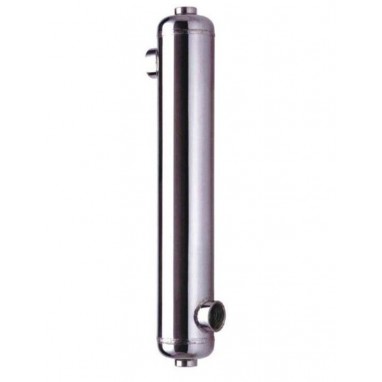

Titanium Heat Exchanger Nordic Tec B300-Ti 90 kW - 100% Made of Titanium

Titanium heat exchanger for pools with saltwater or with added salt B300-Ti

  • Heat exchanger connections: 2x 2 1/2” and 2x 2"
  • Connections also made of titanium
  • Material of the shell and tubes: Pure titanium, heat exchanger entirely made of titanium

The B300-Ti heat exchanger in the titanium version is primarily used for heating pools with saltwater, or potentially for other aggressive fluids.

☑️ Fast availability of titanium heat exchangers B300-Ti
✅ Fast and free delivery in IT, FR, ES, DE, PL, SI, AT, DK, NL, BE, CZ, LV, EE, LT

Reference: B300-Ti
Condition New
Out-of-Stock
€999.99
VAT included

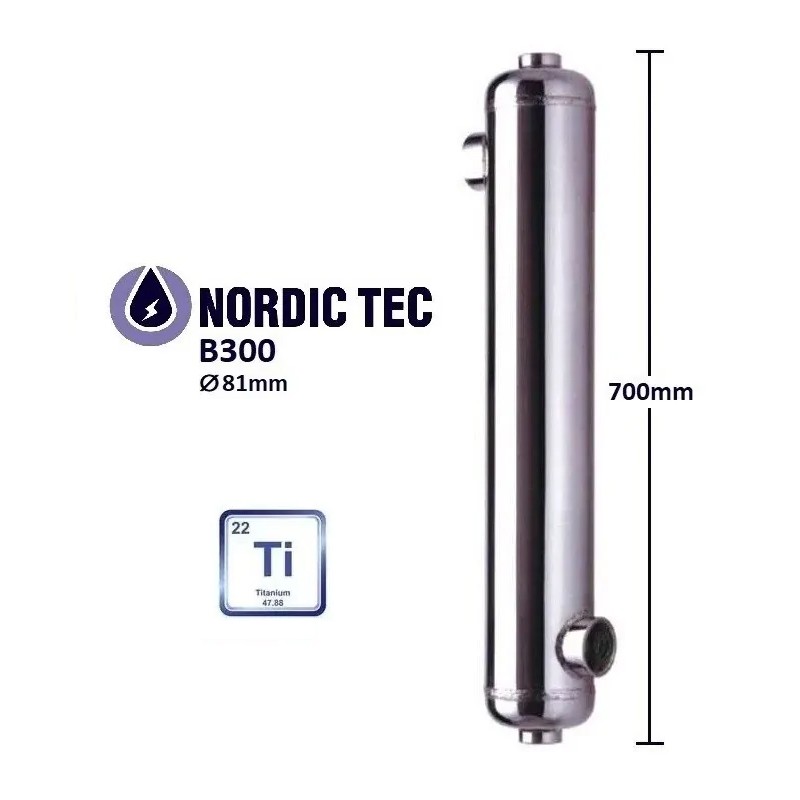

Titanium Heat Exchanger for Pools Nordic Tec B300-Ti

Titanium heat exchanger - for pool heating. Heat exchanger with a rated power of 90 kW.

* Rated Power - 90 kW (300 kBTU/h)

  • The 90 kW power is achieved by the titanium heat exchanger B300-Ti under standard conditions (hot water/pool water), with an assumed temperature delta of 60.0 degrees Celsius.

The actual power varies if the delta is lower.

  • 60 °C = 100% | 90 kW
  • 50 °C = 85% | 75 kW
  • 40 °C = 70% | 63 kW
  • 30 °C = 55% | 49 kW

An important aspect is the use of a glycol solution: in this case, efficiency will decrease by 8-15% if glycol is used on one side, and up to 30% if used on both sides.

  • Heat exchange surface area of the tubes - 0.640 m²
  • Construction material - heat exchanger entirely made of titanium (no alloys)
  • Operating pressure (safe working pressure) - < 6 bar

Connections

  • 2x 1 1/2" Internal thread - hot side connections - K1 and K4
  • 2x 2" Internal thread - pool water connections - K3 and K2

Nominal flow rate

  • Hot side - 42.0 l/min
  • Pool water - 325.0 l/min

Safe operating temperature - < 207.0 °C

How to connect the titanium heat exchanger B300-Ti to the system, recommended connections

Titanium heat exchanger for saltwater pools B300-Ti

  • K1 - inlet of the heating fluid
  • K2 - outlet of the heated fluid
  • K3 - inlet of the heated fluid
  • K4 - outlet of the heating fluid

Connecting the titanium heat exchanger B300-Ti to the system requires careful planning and the use of appropriate components to ensure optimal performance and a long lifespan of the heat exchanger. Below are some suggestions.

  • The B300-Ti heat exchanger should be installed in a location easily accessible for maintenance and service.
  • The location must take into account the dimensions of the heat exchanger and the space required for connection.
  • The titanium heat exchanger should be placed as close as possible to the heat source (e.g., boiler, heat pump) but also to the receiver (e.g., pool).
  • If the heat exchanger will operate in a high-temperature environment, adequate ventilation is recommended.
  • The inlet and outlet of the heating circuit must be connected to the heat exchanger according to the manufacturer's instructions - visible in the diagram above.
  • It is recommended to use ball valves at the inlet and outlet to facilitate maintenance of the heat exchanger.
  • It is useful to add a mesh filter to protect the heat exchanger from deposits and impurities that could reduce its efficiency over time.
