Plate Heat Exchanger NORDIC Ba-60-70 1 1/4" 765kW

Heat exchanger for heat pump | Nordic Tec Ba-60-70 5/4"

  • Number of steel plates in the exchanger – 70
  • Connection fitting size – 1 1/4" BSP | 5/4"
  • Plate surface area – 4.2 m²
  • Rated power for high parameters – 765 kW

The Ba-60-70 heat exchanger was previously available in a traditional version with larger fittings – this offer presents a new version with 5/4" fittings. This variant was introduced at our customers' request. It's an excellent heat exchanger for heat pumps, particularly suitable as a buffer plate exchanger, ideal for monoblock systems (less frequently for split systems too).

☑️ Immediate availability of Nordic Tec plate heat exchangers
☑️ Quick delivery of our heat exchangers in most European countries
✅ Free shipment in the following countries: DE, PL, FR, ES, IT, AT, NL, BE, DK, CZ, LT, LV, SI, EE

Reference: Heat-Exchanger-60-70-5/4"
Condition New
Accessories for PHE
  • Exchanger only (without accesories)
  • with Wall-Mounting+Fittings
  • With Thermal Insulation
  • Full Set (with Insulation&Wall-mounting with Fittings)
On stock
€579.99
VAT included



Buffer plate heat exchanger for monoblock and split heat pumps | Ba-60-70-5/4"

Nordic Tec buffer plate exchanger in 5/4" | 1 1/4" connection version

Buffer plate heat exchanger for monoblock and split heat pumps | Ba-60-70-5/4"

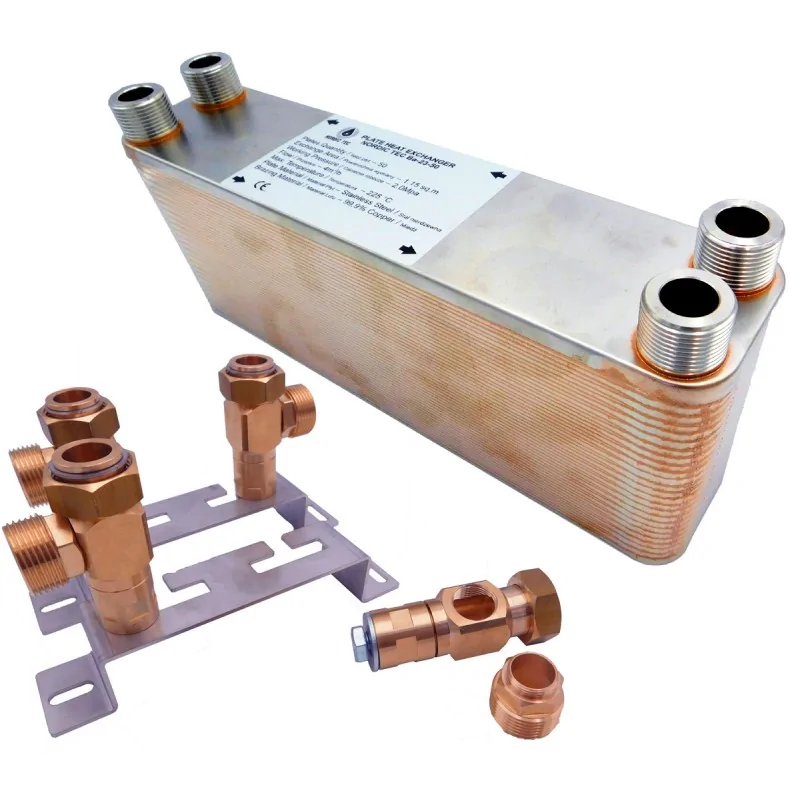

The photo above shows the complete set of the Ba-60-70-5/4" model.
The accessory selection menu is located directly above the price.

Technical details of the buffer plate exchanger in this offer:

  • Made of S16L stainless steel, vacuum brazed with copper
  • Plate type: corrugated plate, maximum plate thickness 0.40 mm
  • Temperature range: from -225 to +228°C
  • Maximum operating pressure: 30.0 bar, liquid-to-liquid heat exchanger
  • DN32 size connections, therefore 5/4", external thread

Buffer plate exchanger 60-70-5/4" - Plate surface area – 4.2 m²

Buffer plate exchanger 60-70-5/6" - Plate surface area – 4.2 m²

The 5/4" exchanger has a surface area of 4.2 m² as shown in the chart. It is currently the largest exchanger in the standard Nordic Tec catalog with 5/4" connections. This large surface area makes it the ideal choice as a buffer plate exchanger, reliable even with large monoblock heat pumps operating with glycol.

Dimensions:

Buffer plate exchanger 60-70-5/6" Dimensions

Length (A) - approx. 526 mm
Width (B) - approx. 124 mm
Center distance (C) - approx. 478 mm
Center distance (D) - approx. 73 mm
Thickness (F) - approx. 175mm
