Plate Heat Exchanger NORDIC Ba-27-70 1 1/4" 390kW

Plate Heat Exchanger NORDIC Ba-27-70 1 1/4" 390kW

HVAC Solutions - Plate Heat Exchanger - by NORDIC TEC - Ba-27-70

The 70-plate heat exchanger with a 5/4" connection is used as a component in heating or refrigeration systems.

Plate Q'ty: 70 pcs.
Connections: 1 1/4" BSP
Heat Exchange Area: 1.890m²

☑️ Fast availability
✅ Free delivery in: FR, IT, ES, DE, PL, SI, AT, DK, NL, BE, CZ, LV, EE, LT

Reference: NT Ba-27-70

Condition New

Accessories for PHE

Exchanger only (without accesories)
with Wall-Mounting+Fittings
With Thermal Insulation
Full Set (with Insulation&Wall-mounting with Fittings)

On stock

€354.99

VAT included

Heat Exchanger Nordic Tec Ba-27-70 - 4x 1 1/4", 70 plates

Nordic Tec Ba-27-70 heat exchanger, often used for heat pumps and boilers

Technical details:

- Stainless Steel S316L, brazed with 99,9% Cu

- Connections: 4x 5/4", BSP

- Working Pressure - <30 bar

- Test Pressure - 45-60 bar

- Max. temperature +230°C

- Flowrate - 12 m³/h

- Heat Exchange Surface - 1.890 m²

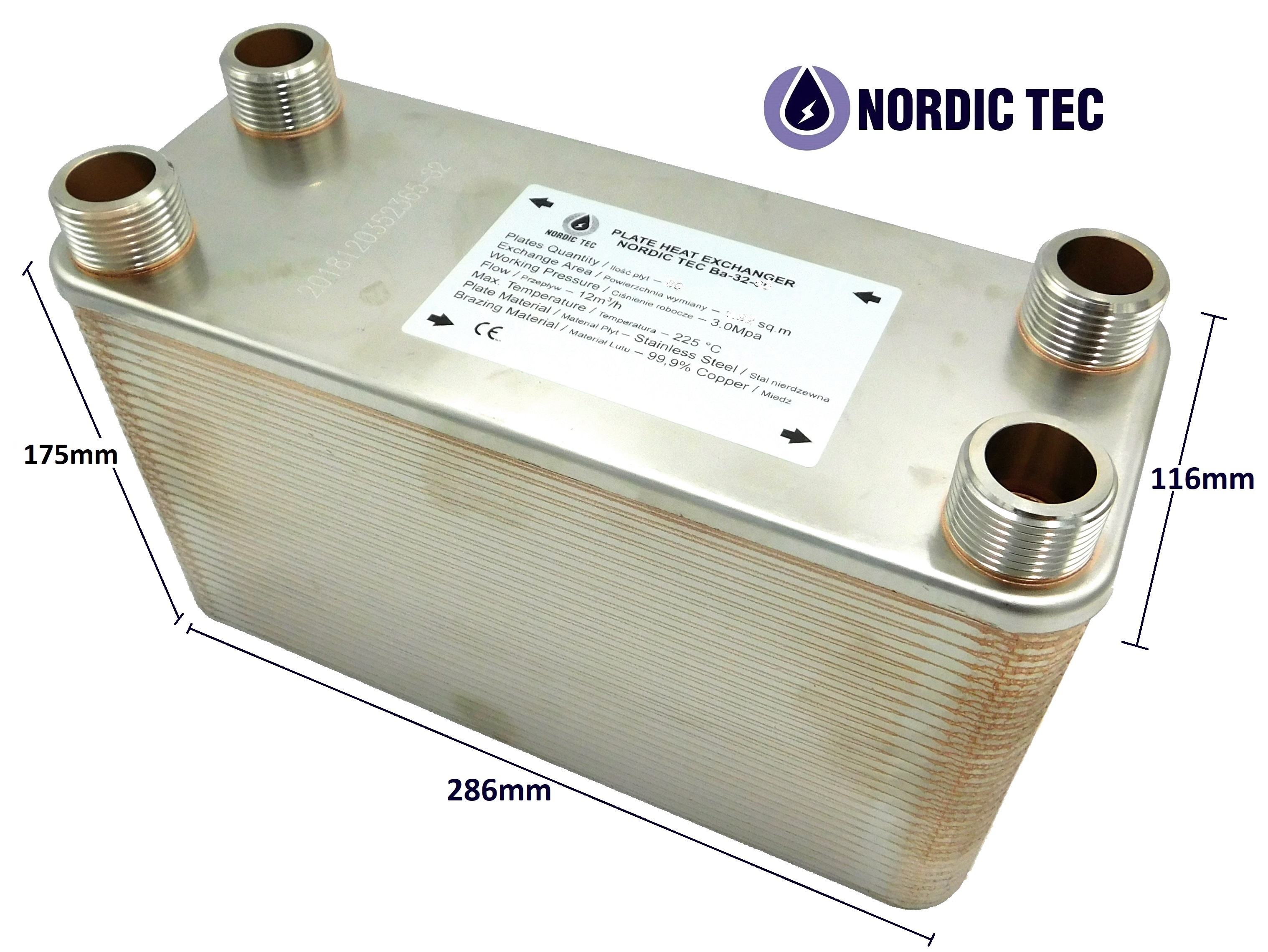

Dimensions:

(A) - 286 mm
(B) - 116 mm
(F) - 175 mm
(C) - 234 mm
(D) - 63 mm

Browse as well our plate heat exchangers with threads 1 1/4". similar to this item:

Plate Heat Exchanger Ba-27-60 1 1/4" with 60 plates / by Nordic Tec

In stock 155 Items

Condition New

Heat Exchanger Ba-27 EN

PHE Ba-27 Data Sheet ENGLISH

Download (970.32KB)

Wärmetauscher Ba-27 DE

Datenblatt Ba-27 GERMAN / DEUTSCH

Download (950.43KB)

Wymiennik ciepła Ba-27 PL

Heat Exchanger Ba-27 Data in POLISH / POLSKI

Download (871.29KB)

Vymenik tepla Ba-27 CZECH

PHE Ba-27 ČEŠTINA / CZECH

Download (951.54KB)

Výmenník tepla Ba-27 SK

Data sheet PHE Ba-27 SK - SLOVENČINA / SLOVAK

Download (951.9KB)
