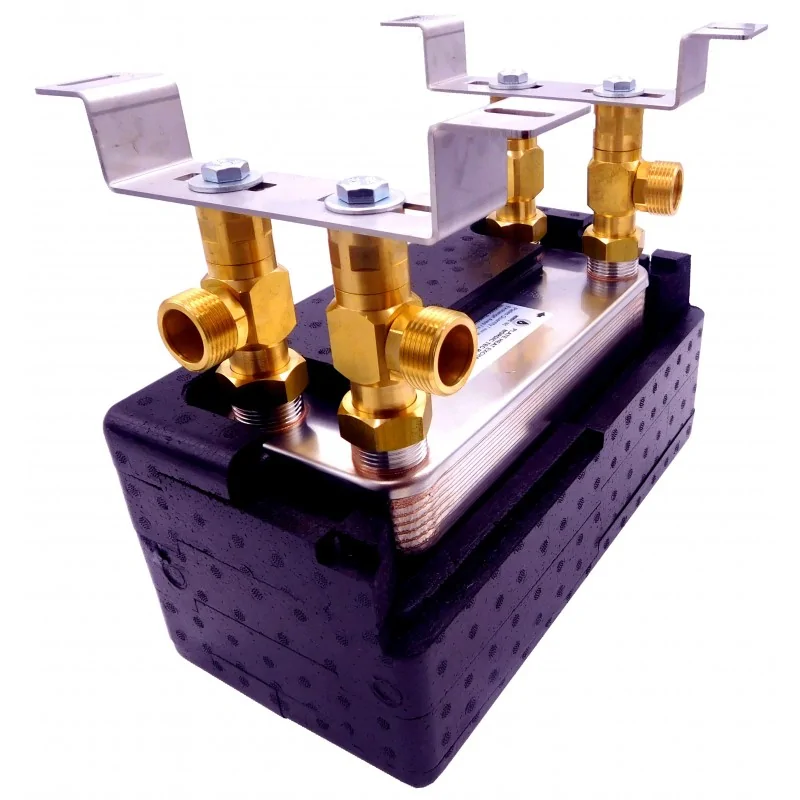

Plate Heat Exchanger NORDIC Ba-27-40 1 1/4" 230kW

Heat Exchanger Nordic Tec Ba-27-40 - 4x 1 1/4", 40 plates

Nordic Tec Ba-27-40 Heat Exchanger 1 1/4",
5/4" connections, 40 plates

Technical details - Heat Exchanger Nordic Tec Ba-27-40:

• Stainless Steel S316L, brazed with 99,9% Cu
• Connections: 4x 5/4", BSP
• Working Pressure - <30 bar
• Test Pressure - 45-60 bar
• Max. temperature +230°C
• Flowrate - 12 m³/h
• Heat Exchange Surface - 1.080 m²




Dimensions - Heat Exchanger Nordic Tec Ba-27-40:

(A) - 286 mm
(B) - 116 mm
(F) - 103 mm
(C) - 234 mm
(D) - 63 mm

In DOWNLOAD section you get the data sheet of the unit.
