Plate Heat Exchanger NORDIC Ba-12-20 3/4"&1/2" 45kW
Read user reviews (1)
Heat Exchanger for heating or cooling applications - NORDIC TEC Ba-12-20 3/4 & 1/2
Plate Quantity: 20 pcs.
Connections: 2x 3/4" & 2x 1/2" BSP
Heat Exchange Surface: 0.24 m²
A 20-plate heat exchanger with 2 channels, each having connections of different diameters. One channel of the heat exchanger has 3/4" connections, while the other has 1/2" connections. It can be utilized in applications where there is a difference in mass flow rate in favor of one side.
Reference: NT Ba-12-20 3/4&1/2"
Condition New
Plate Heat Exchanger - PHE for small cooling & heating systems
Nordic Tec Ba-12-20 - 3/4 & 1/2", 20 plates
Technical details:
- Stainless Steel S316L, brazed with 99,9% Cu
- Threads: 2x 3/4 & 2x 1/2"
- Working Pressure - <10 bar
- Test Pressure - 20 bar
- Max. temperature +230°C
- Flowrate - 4 m³/h
- Heat Exchange Surface - 0.240 m²
The most common application of Plate Heat Exchanger Ba-12-20 with 20 plates
- additional small heating circuits (additional room, additional radiators, etc.)
- an additional loop filled with glycol due to the frost risk
- connecting small apartments to the district heating network systems
- work with small water jackets / fireplaces with a power of 8 - 9 kW
The exchanger due to too small size is not intended to support the entire central heating in a single-family building, but it can work in heating the small apartment.
Dimensions:
(A) - 191 mm
(B) - 73 mm
(F) - 52 mm
(C) - 154 mm
(D) - 40 mm

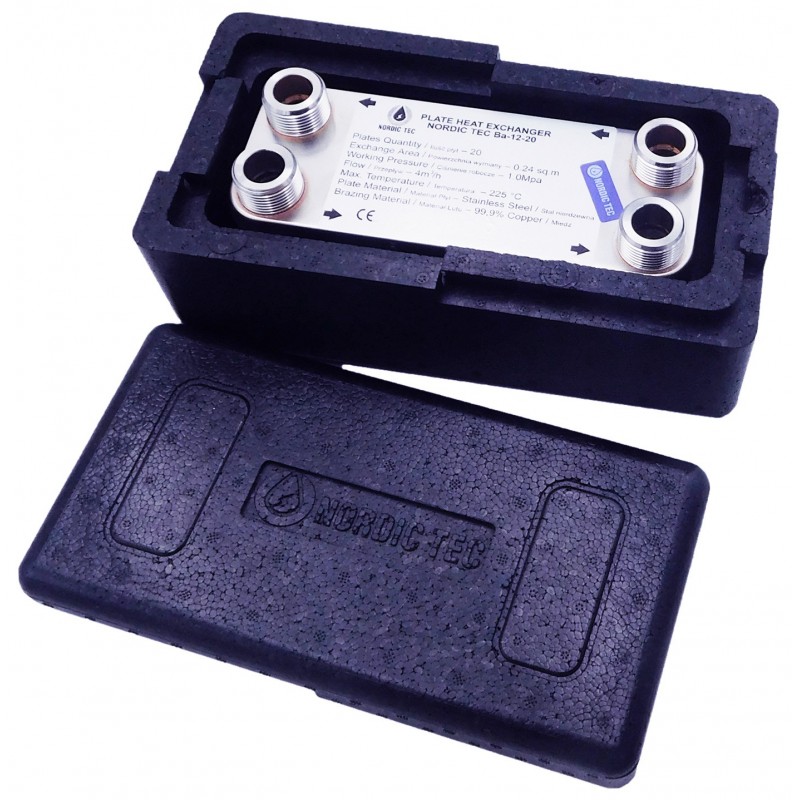

In our store you can find the above model also in a set with thermal insulation.
For this heat exchanger, we do not offer a mounting bracket, due to the unusual variation of connections that are smaller on one channel (1/2").
