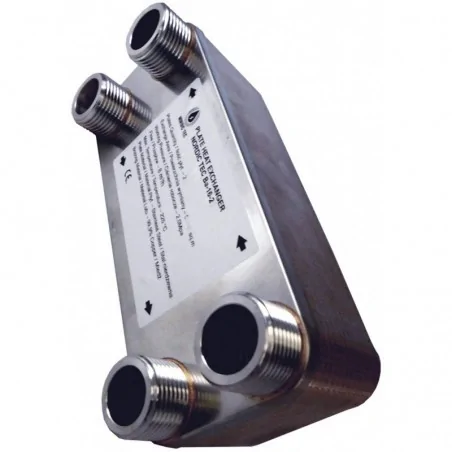

Plate Heat Exchanger NORDIC Ba-16-24 1" 100kW

Plate Heat Exchanger NORDIC TEC Ba-16-24

Plate Q'ty: 24 pcs.
Connections: 1" BSP
Heat Exchange Area: 0.384m²

Reference: NT Ba-16-24
Condition New
Accessories for PHE
  • Exchanger only (without accesories)

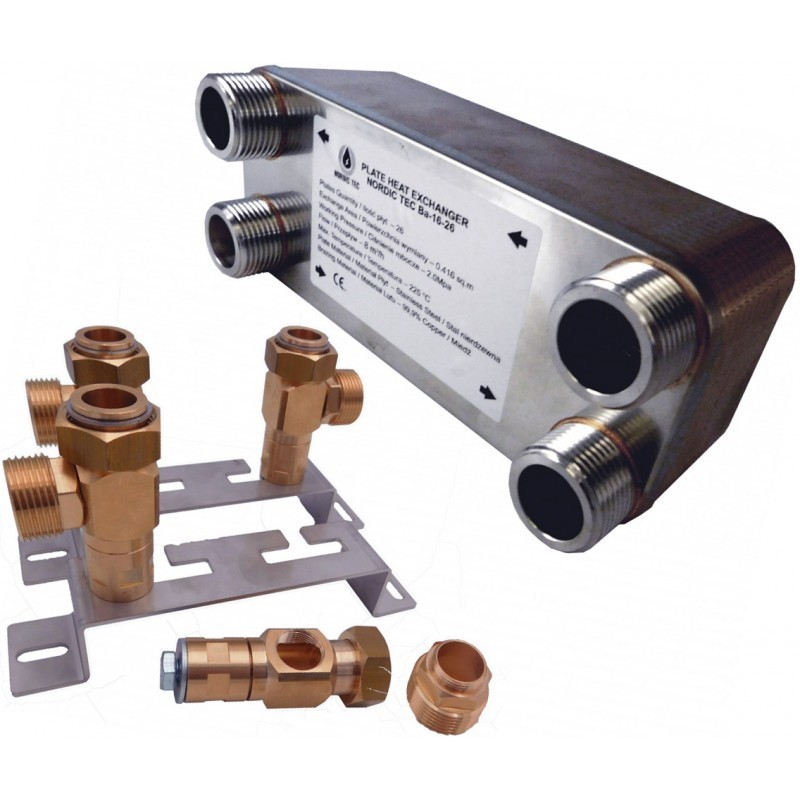

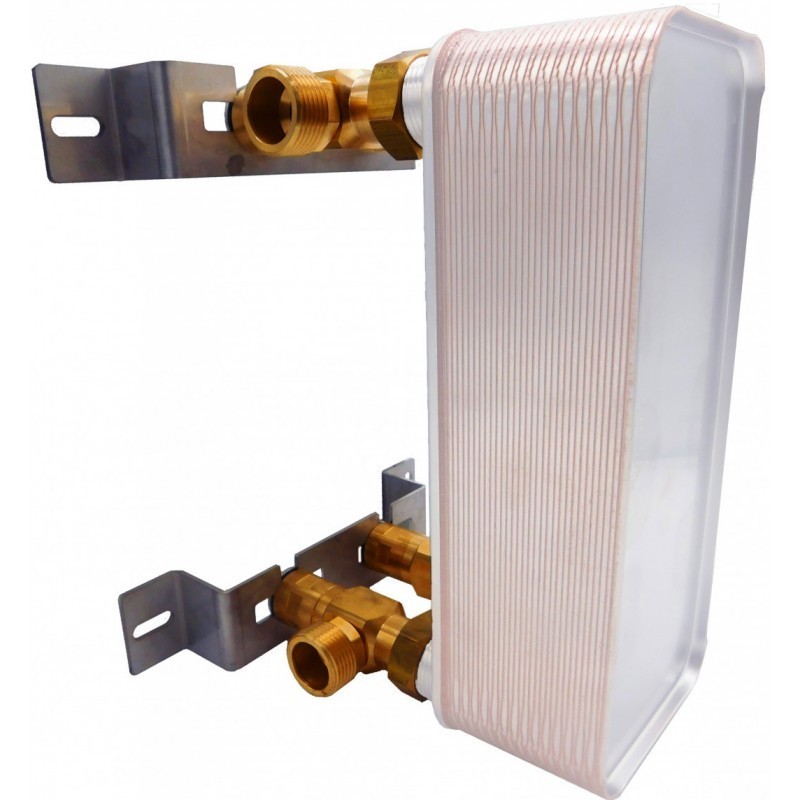

  • with Wall-Mounting+Fittings

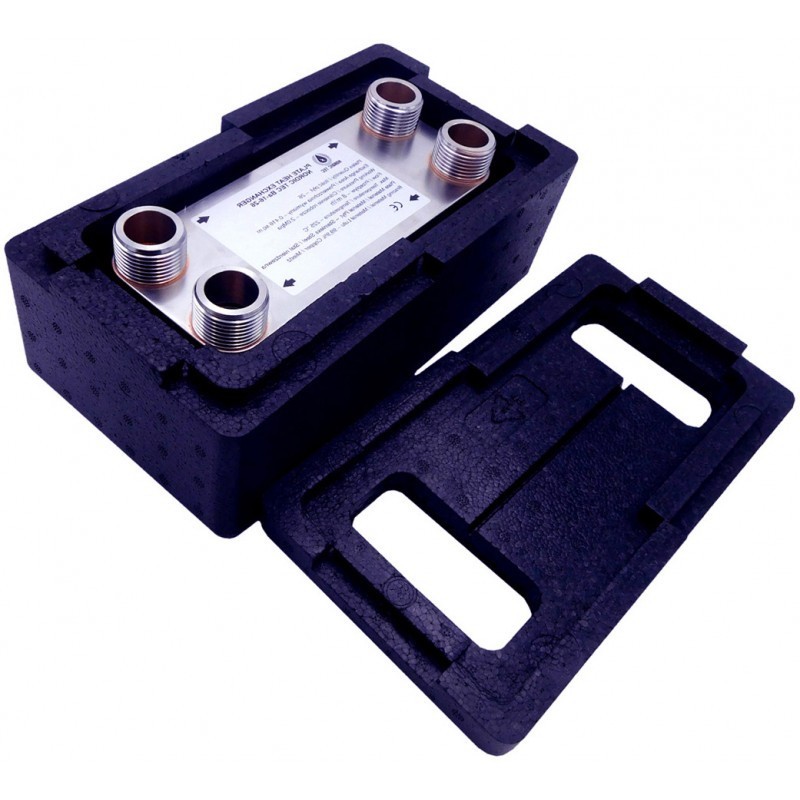

  • With Thermal Insulation

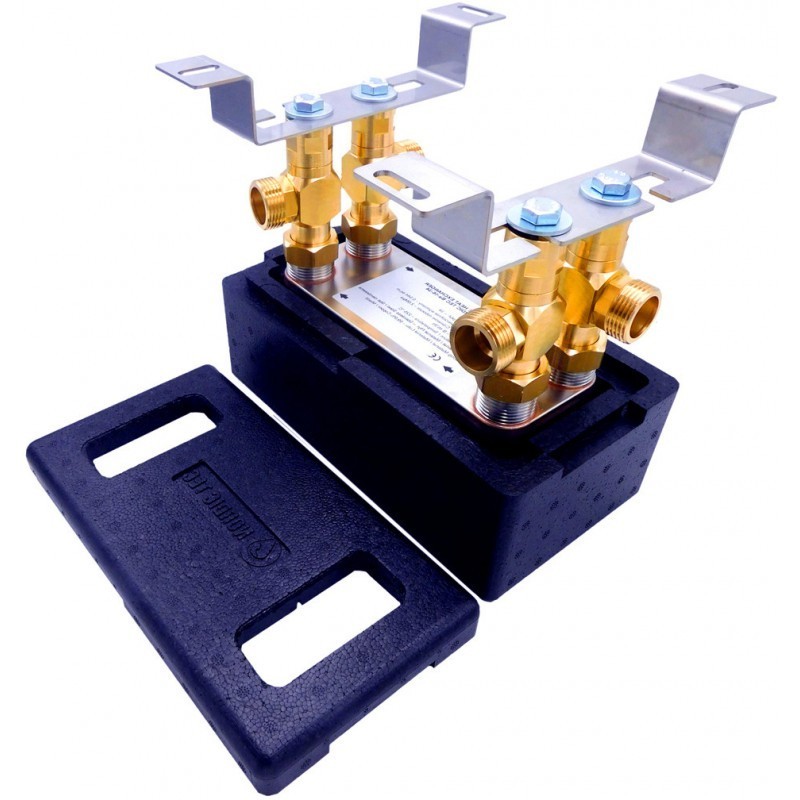

  • Full Set (with Insulation&Wall-mounting with Fittings)
On stock
€114.99
VAT included

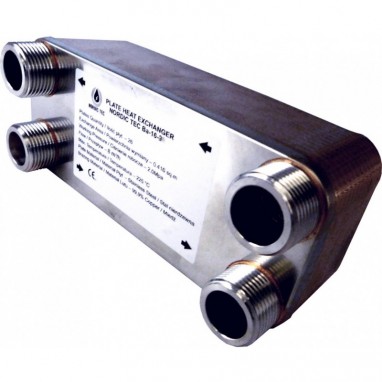

HVAC Heat Exchanger - Nordic Tec Ba-16-24 - 4x 1", 24 plates



Plate Heat Exchanger with 24 plates - for 1"

Technical details:

- Stainless Steel S316L, brazed with 99,9% Cu

- Connections: 4x 1", BSP

- Working Pressure - <20 bar

- Test Pressure - 40 bar

- Max. temperature +230°C

- Flowrate - 8 m³/h

- Heat Exchange Surface - 0.384 m²

Heat Transfer Area - Nordic Tec Ba-16-24 and DN25


Dimensions:
PHE Size drawing Ba-16
(A) -
220 mm
(B) -
90 mm
(F) -
61 mm
(C) -
180 mm
(D) -
52 mm

________________________

Frequent queries from customers reffering to PHE Ba-16-24:

Is the Ba-16-24 heat exchanger suitable for working with a 15 kW fireplace?

Reply: Yes, it is a good choice if we have a fireplace between 12 and 15kW and threads 1 inch (DN25) are required to connect.

Can the Ba-16-24 heat exchanger clog?

Reply: Any exchanger that has been working in the installation can get clogged for many years. This is the effect of normal aging of hydraulic devices. However, this is rare before the expiry of 10-15 years. Of course, you should also ensure that the heat exchanger is installed in accordance with the art, i.e. it should have a filter at the entrance from each side.
